3. Setup and Connections VlinxMESR9xx Modbus Gateway
Page 38 Manual Documentation Number MESR9xx-2113m
www.bb-elec.com/
www.bb-europe.com/

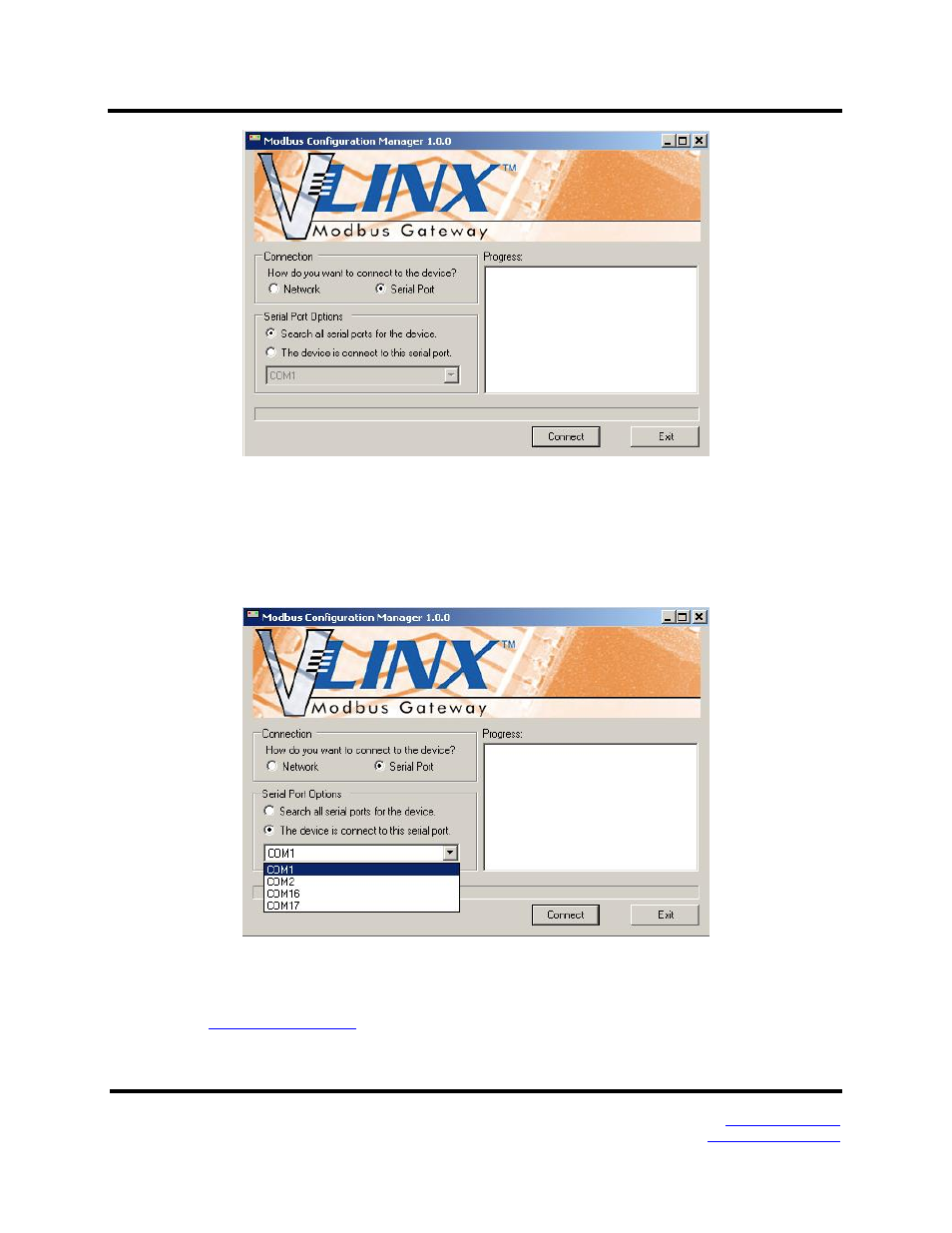

Figure 45. Connection
2. If you do not know which COM port your gateway is connect to, select “Search all
serial ports for the device” under Serial Port Options. If you do know, you may
specify the COM port by selecting “The device is connected to this serial port” under
Serial Port Options and using the pull down menu to choose the COM port.
Figure 46. Serial Port Selection
3. The remaining screens are identical to those shown in configuring your gateway using
a network connection .
