3. Setup and Connections VlinxMESR9xx Modbus Gateway
Page 20 Manual Documentation Number MESR9xx-2113m
www.bb-elec.com/
www.bb-europe.com/
2. The Vlinx Modbus Configuration Manager Device Discovery window appears.

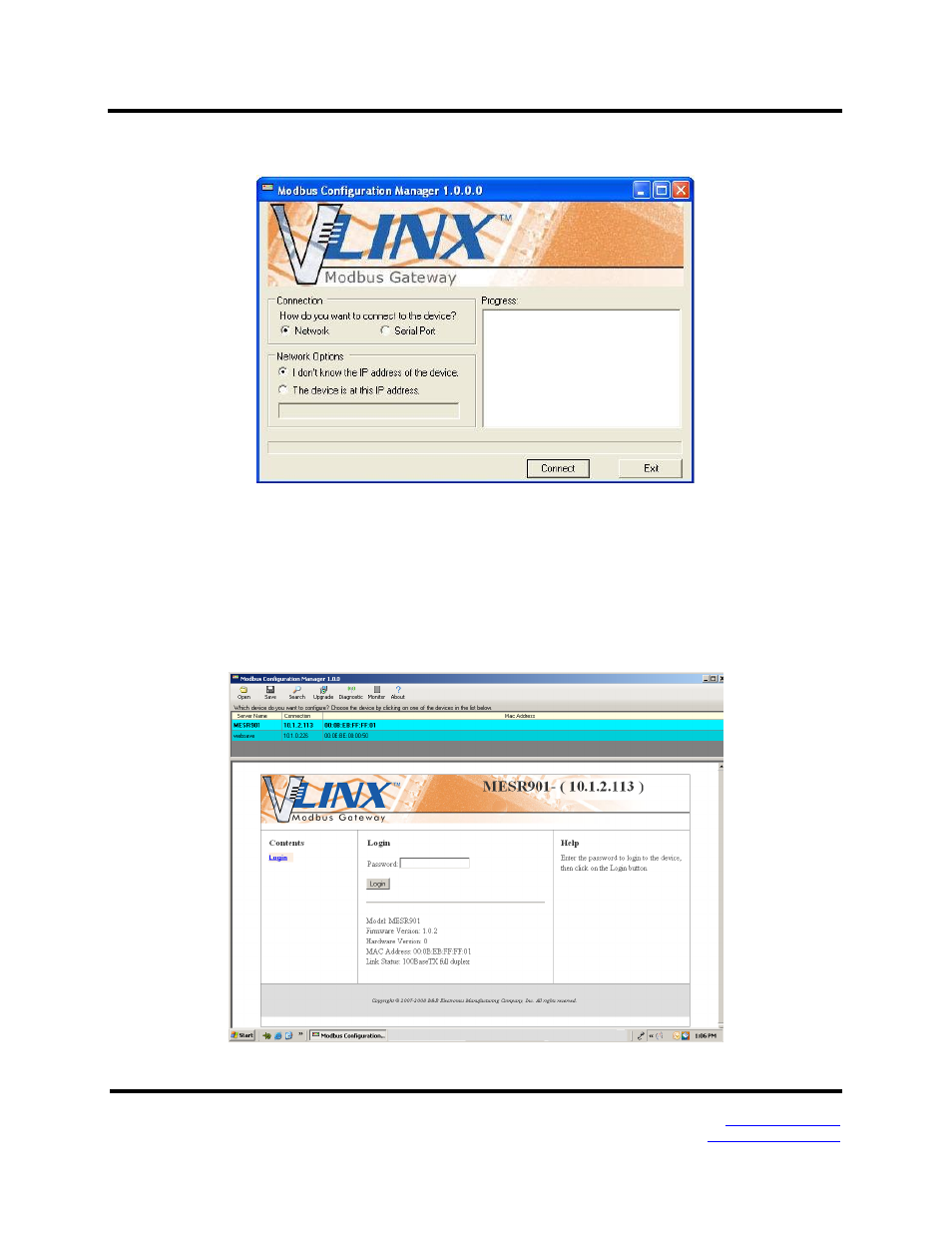

Figure 26. Vlinx Modbus Configuration Manager Discovery Window
3. If you do not know the IP address, check the “Network” and “I don’t know the IP
address of this device” selections and press the “Connect Button.” The software will
discover any MESR9xx Gateways on the network. The configuration manager screen
will be displayed on your computer. All available devices will be listed on the top
portion of this screen. If you know the IP address, you may select “The Device is
located at this IP address” and input the address in the box provided.
Figure 27. Configuration Manager Screen
