3. Setup and Connections VlinxMESR9xx Modbus Gateway
Page 21 Manual Documentation Number MESR9xx-2113m
www.bb-elec.com/
www.bb-europe.com/
4. All Modbus Gateways on the network will be displayed in the top portion of the
screen. To select a gateway, simply click the appropriate device on the top portion of
the screen.
a. The main portion of the screen displays the Model, Firmware version, Hardware
Version, MAC Address, and Link Status. The IP Address is also displayed on the
top portion of the screen and title graphic area.
5. The default password is no password. Click the “Login” button. The “General”
Settings screen will be displayed on your computer.
6. Vlinx Modbus Manager Settings Screen Overview

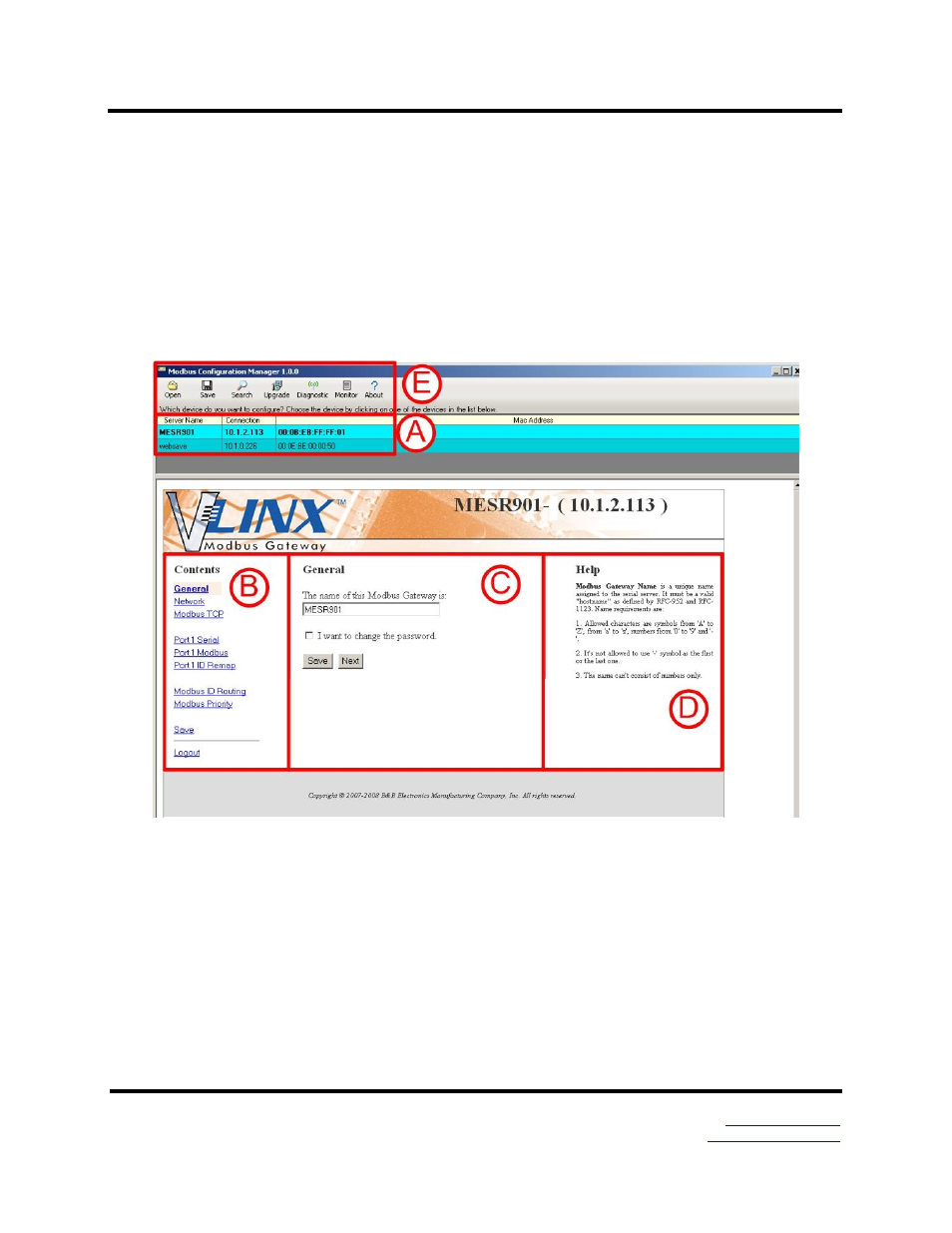

Figure 28. Settings Screen Overview
a. This area shows Modbus Gateways available on the network.
b. This area is used to skip directly to the specific configuration screen you need to
access. An alternate method of accessing the configuration screens is to use the
“Next” button in area C.
c. This area contains dialog boxes specific the configuration screen.
1. Note: Any configuration changes you make need to be saved using
the “Save” button.
