5. Upgrading Firmware VlinxMESR9xx Modbus Gateway
Page 41 Manual Documentation Number MESR9xx-2113m
www.bb-elec.com/
www.bb-europe.com/
4 4 . . U U p p g g r r a a d d i i n n g g t t h h e e M M o o d d b b u u s s G G a a t t e e w w a a y y F F i i r r m m w w a a r r e e
Occasionally, updated firmware may become available for your Modbus gateway. The
firmware can be upgraded using the Zlinx Manager software. The following procedure
describes the firmware updating process:
1. Click the Upgrade button to open the Firmware Upgrade dialog box.

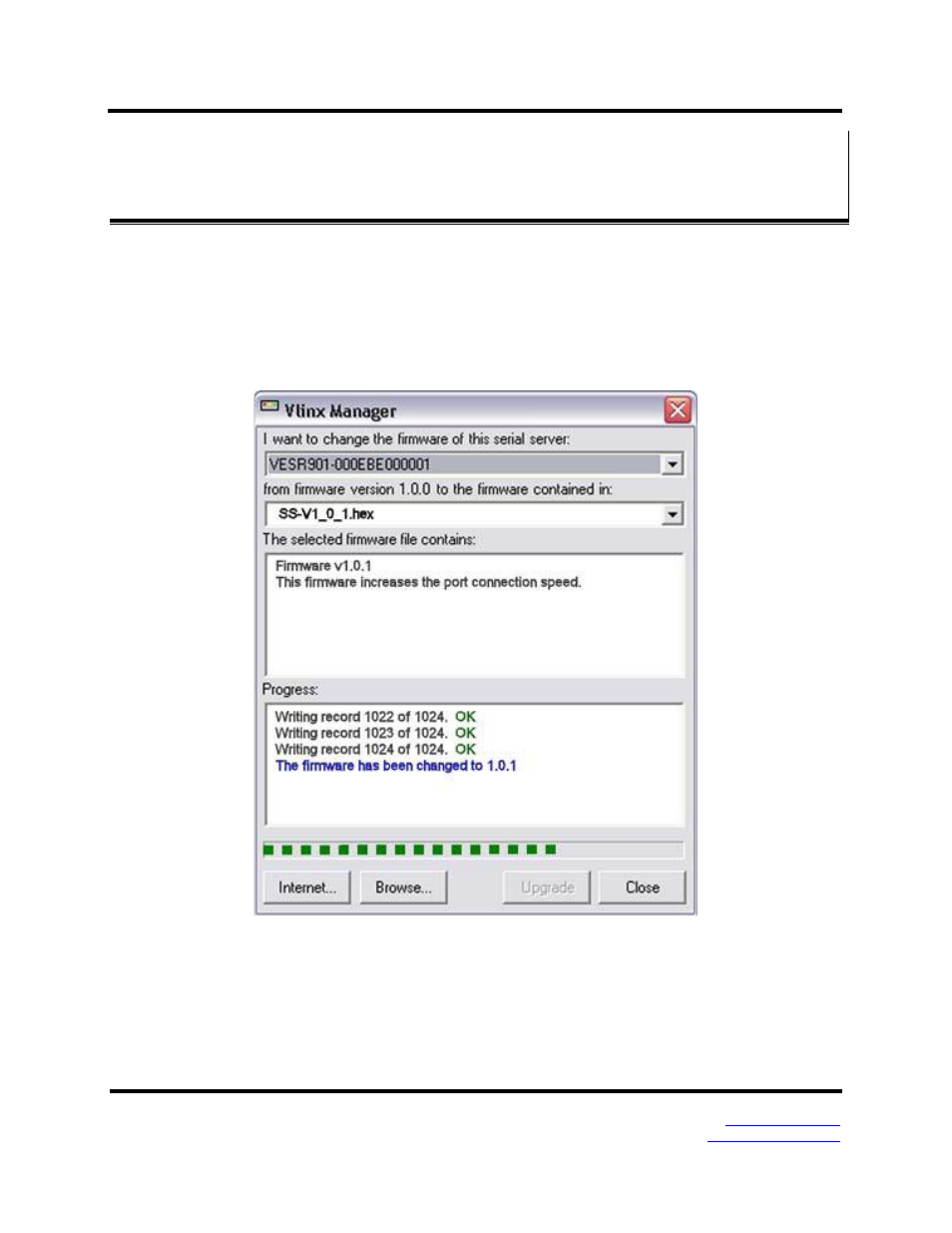

Figure 48. Firmware Upgrade Dialog Box
The name of the currently selected Modbus gateway appears in the top drop down
list. Other Modbus gateways (that have already been discovered) can be selected from
the drop down list, if desired.
The current firmware version of the selected Modbus gateway is shown in the text
below the Modbus gateway name.
