3. Setup and Connections VlinxMESR9xx Modbus Gateway
Page 19 Manual Documentation Number MESR9xx-2113m
www.bb-elec.com/
www.bb-europe.com/
Configuring the MESR9xx Modbus Gateway via the Network Connection
When configuring via the network, either Modbus Configuration software or the web
interface can be used.
Configuring with Modbus Configuration Manager
MESR9xx Modbus Gateways can be configured over the network Modbus Configuration
manager software running on a PC.
To open Modbus Configuration Manager:
1. From the Desktop, click Start  Programs  B&B Electronics  Vlinx  Modbus
Gateway Manager. An alternate method is to double click the shortcut installed on the
desktop.

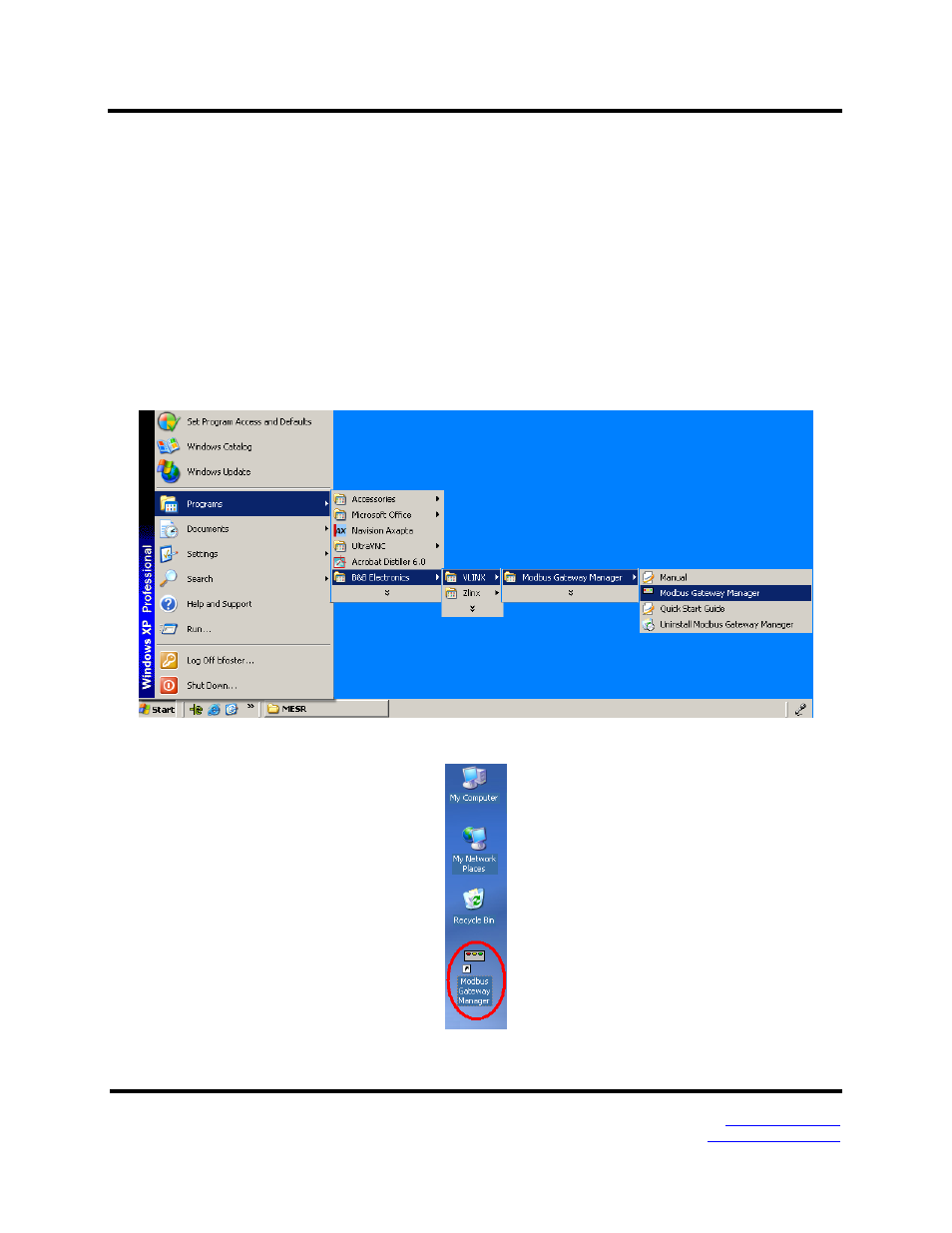

Figure 24. Opening Vlinx Modbus Gateway Manager
Figure 25. Vlinx Modbus Gateway Manager Shortcut Icon
