Setup Examples

Vlinx MESP211 Modbus Gateway

51

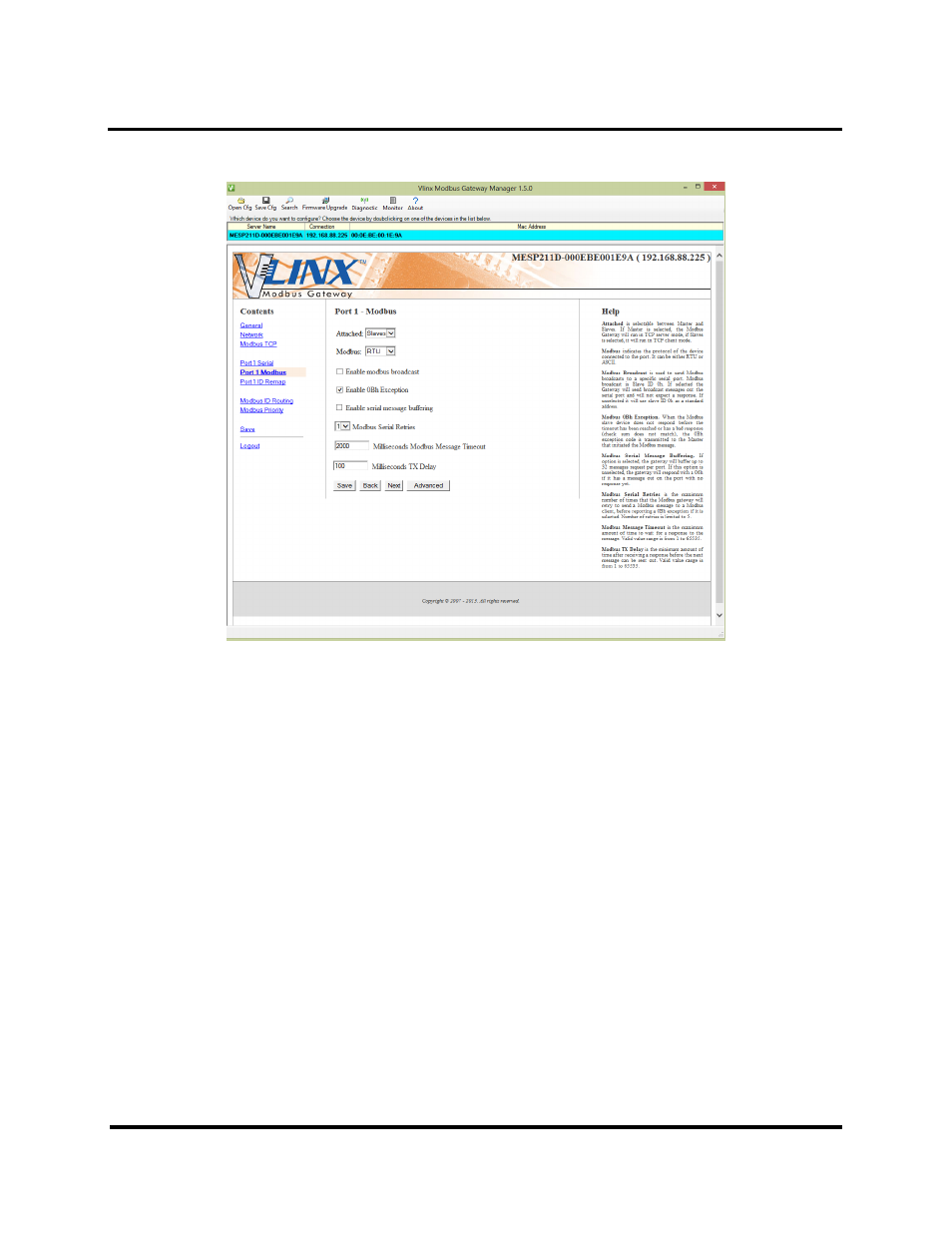

Port 1 Modbus

Figure 48.

4. Configure the Port 1 Modbus Settings. In this case Attached should be slaves,

Modbus should be RTU. The other settings depend on your application.

5. Configure Port 2 Serial and Modbus in the same fashion.

6. Access Modbus ID Remapping for each port and configure as necessary.
