Setup and Connections Vlinx MESP211 Modbus Gateway
13

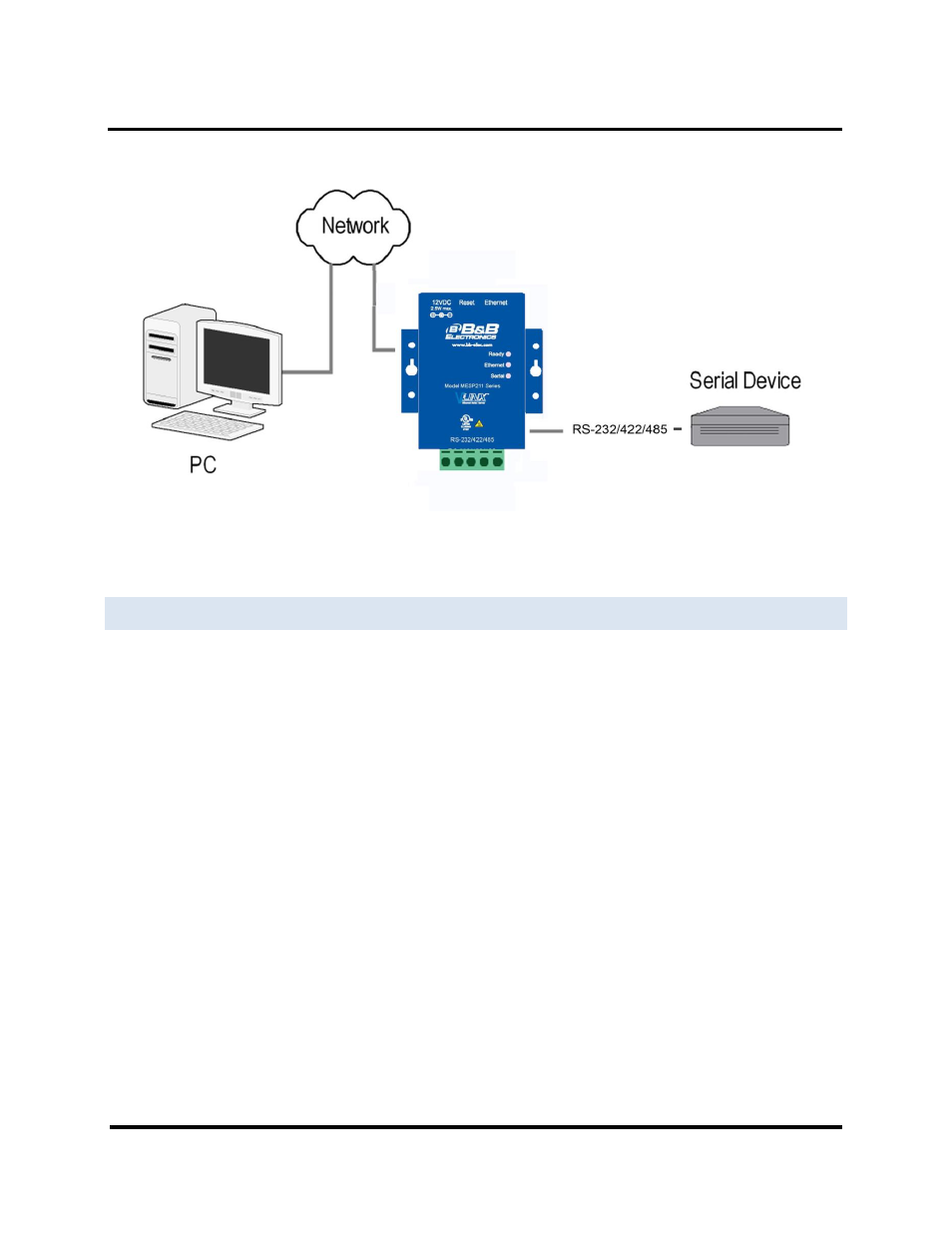

MESP211 Connections Figure 11.
CONNECTING MESP211 MODBUS GATEWAYS TO A NETWORK
Network Connection (10BaseT/100BaseTX)
When connecting a Modbus Gateway equipped with a 10BaseT/100BaseTX
network connection (RJ45 connector) a standard network cable is connected from the
Modbus Gateway to a network drop. PCs configuring and/or communicating with the Modbus
Gateway are also connected to the network.
