Setup and Connections Vlinx MESP211 Modbus Gateway
27

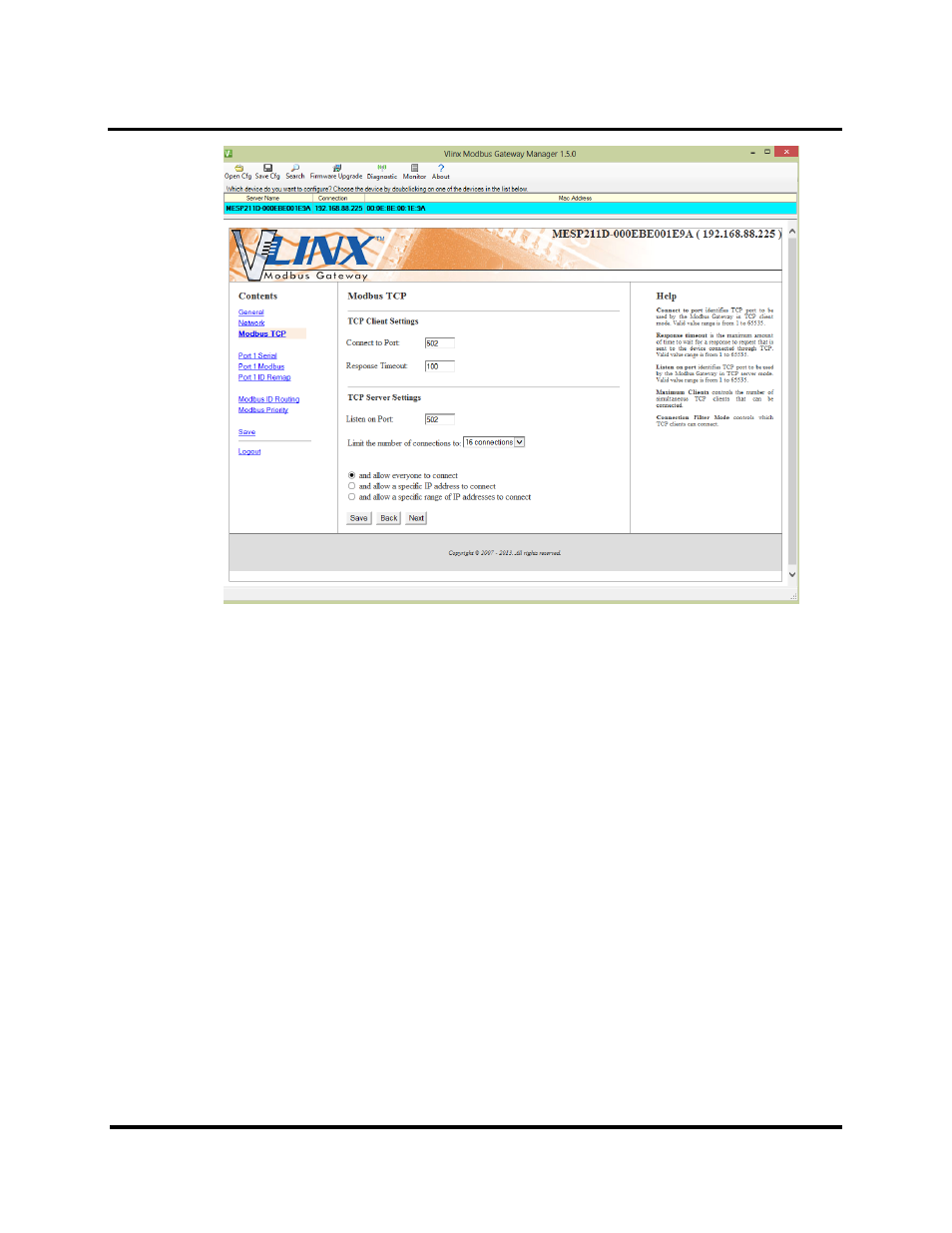

Modbus TCP Settings Screen
Figure 28.
c. TCP Client Settings
1. Connect to Port identifies TCP port to be used by the Modbus Gateway
in TCP client mode. Valid value range is from 1 to 65535.
2. Response Timeout is the maximum amount of time to wait for a
response to a request that is sent to the device connected through
TCP. Valid value range is from 1 to 65535.
3. Save settings by clicking the “Save” button.
b. TCP Server Settings
1. Listen on Port identifies TCP port to be used by the Modbus Gateway in
TCP server mode. Valid value range is from 1 to 65535.
2. “Limit the number of connections to” pull down box allows you to
control the number of simultaneous TCP clients that can be connected.
Choices are 1 through 16.
