Setup Examples Vlinx MESP211 Modbus Gateway
50
6. SETUP EXAMPLES
Modbus Gateways can be used to integrate Modbus networks in a wide variety of settings.
But as each setting has its own requirements, users may not understand how a gateway
helps, or if it’s appropriate for their specific needs.
The following scenarios are examples only, and many others are possible. Refer to the
Modbus Serial Server page on the B&B Electronics web site for detailed information
regarding other applications.
Log into your gateway.
1. Access the serial port one setup screen by clicking the link on the left side of the
screen.

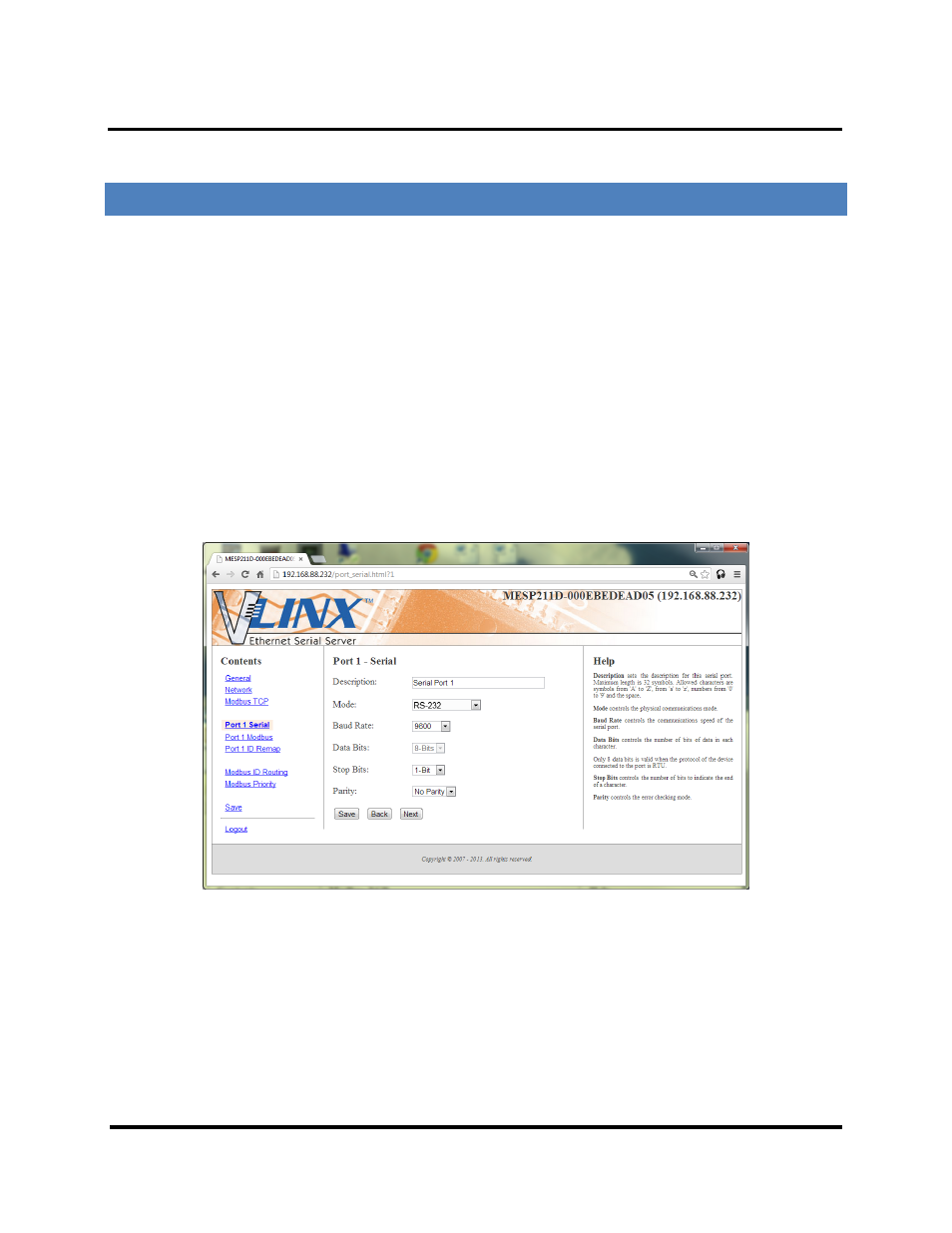

Serial Port 1 Setup
Figure 47.
2. Configure Serial Port 1. In this case it is RS-232, 19.2 kbps, 8 data bits, 1 stop
bit, and no parity. Save the settings
3. Access Port 1 Modbus by clicking the link on the left side of the screen.
