Diagnostics Vlinx MESP211 Modbus Gateway
48
TESTING A MODBUS GATEWAY CONNECTION
To run diagnostics on a Modbus Gateway:
1. Click the Diagnostics icon.
The Diagnostics dialog box appears.
2. In the drop down box select the specific Modbus Gateway you want to check.
3. Click the Start button
Information about the progress of the pinging process is displayed in the Test
Progress box.

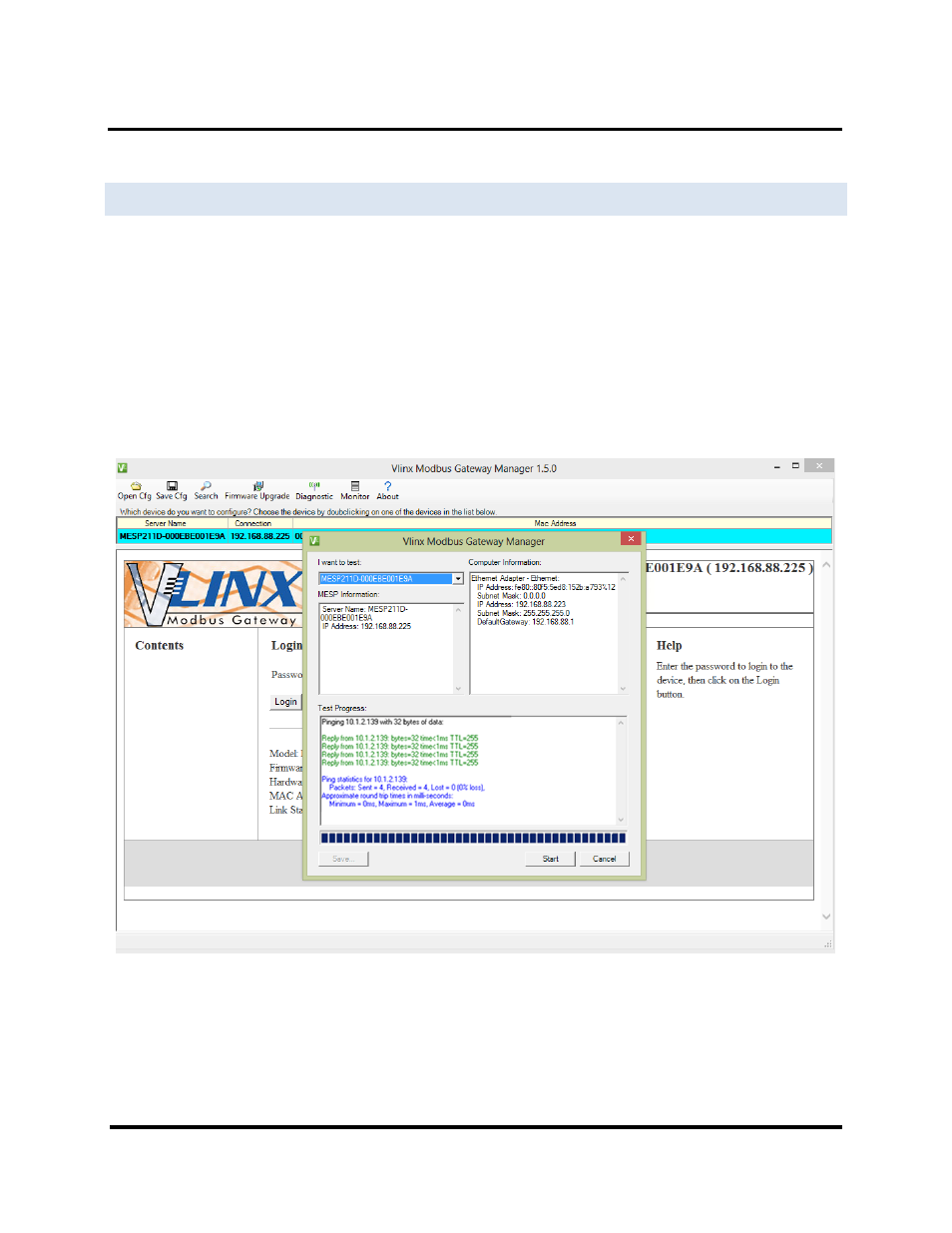

Testing a Modbus Gateway Connection Figure 46.
