Setup and Connections Vlinx MESP211 Modbus Gateway
26
For Class C network (IP addresses 192.0.0.0 through 223.255.255.255), the default subnet
mask is 255.255.255.0.
For Class D network (IP addresses 224.0.0.0 through 239.255.255.255) and
Class E network (IP addresses 240.0.0.0 through 255.255.255.255), the
subnet mask is ignored.
Default Gateway field contains default route to remote networks.

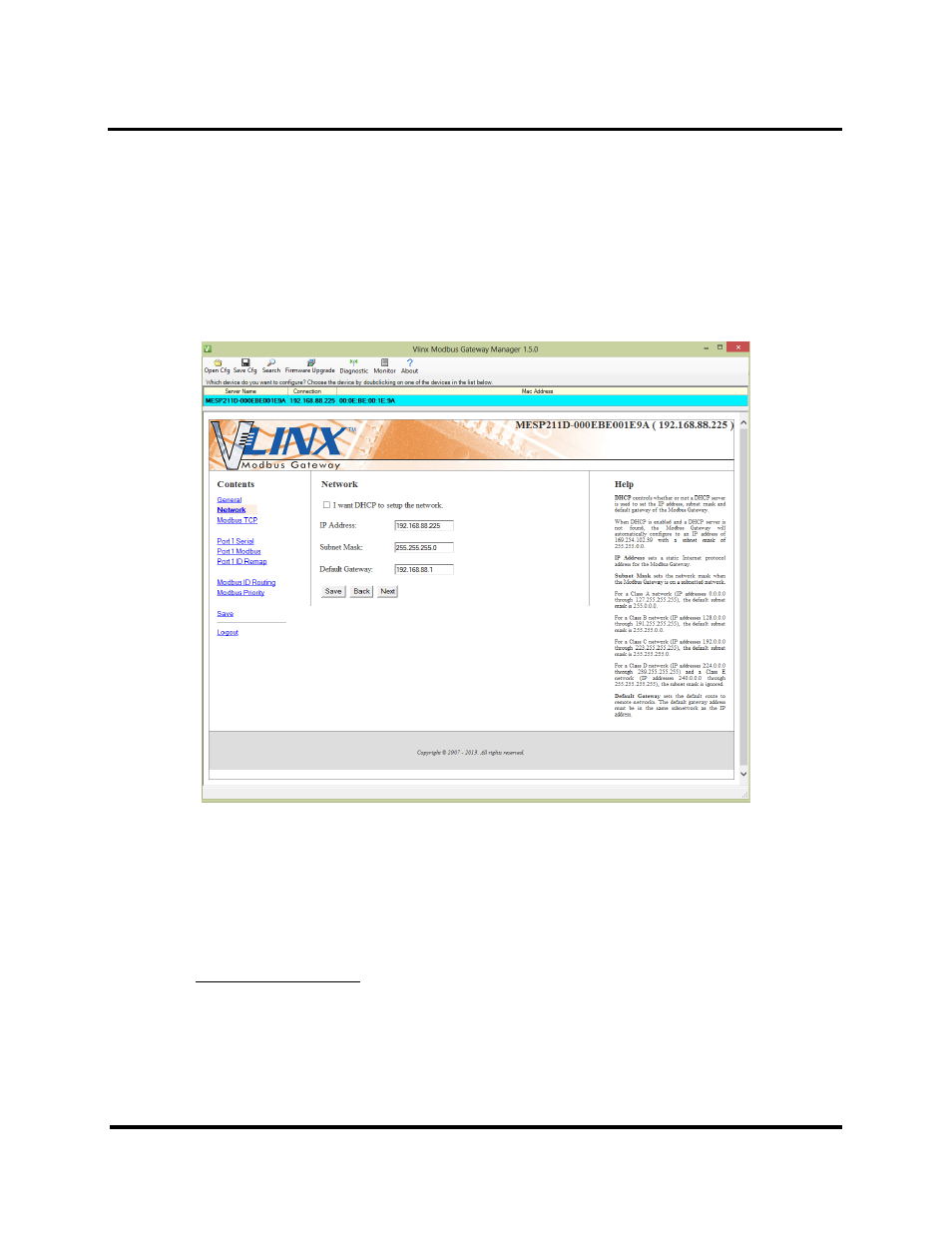

Network Settings Screen (DHCP not Selected) Figure 27.
d. More information about assigning an IP address without using a DHCP Server
is contained in the section Configuring the MESP211 on Networks without a
DHCP Server.
e. Save changes by Clicking the “Save” button.
5. Modbus TCP Settings
a. To access this screen, click the “Next Button” or click on the Modbus TCP link
on the left side of the screen.
b. This screen allows you Modbus TCP client and server settings.
