Setup and Connections

Vlinx MESP211 Modbus Gateway

42

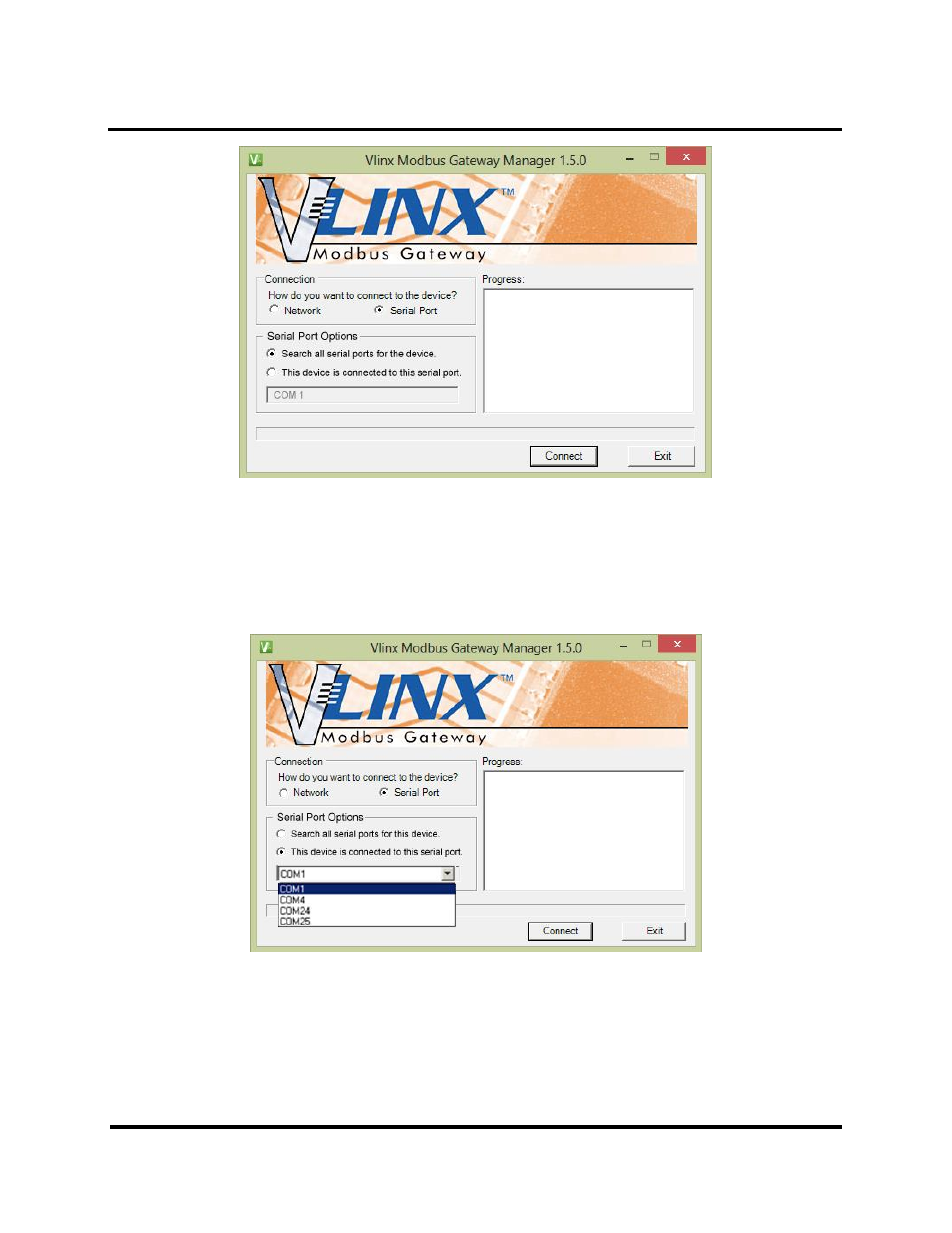

Connection

Figure 41.

3. If you do not know which COM port your gateway is connect to, select “Search all

serial ports for the device” under Serial Port Options. If you do know, you may
specify the COM port by selecting “The device is connected to this serial port”
under Serial Port Options and using the pull down menu to choose the COM port.

Serial Port Selection

Figure 42.

4. The remaining screens are identical to those shown in configuring your gateway

using a network connection.
