Setup and Connections Vlinx MESP211 Modbus Gateway
21
Settings Screen Overview

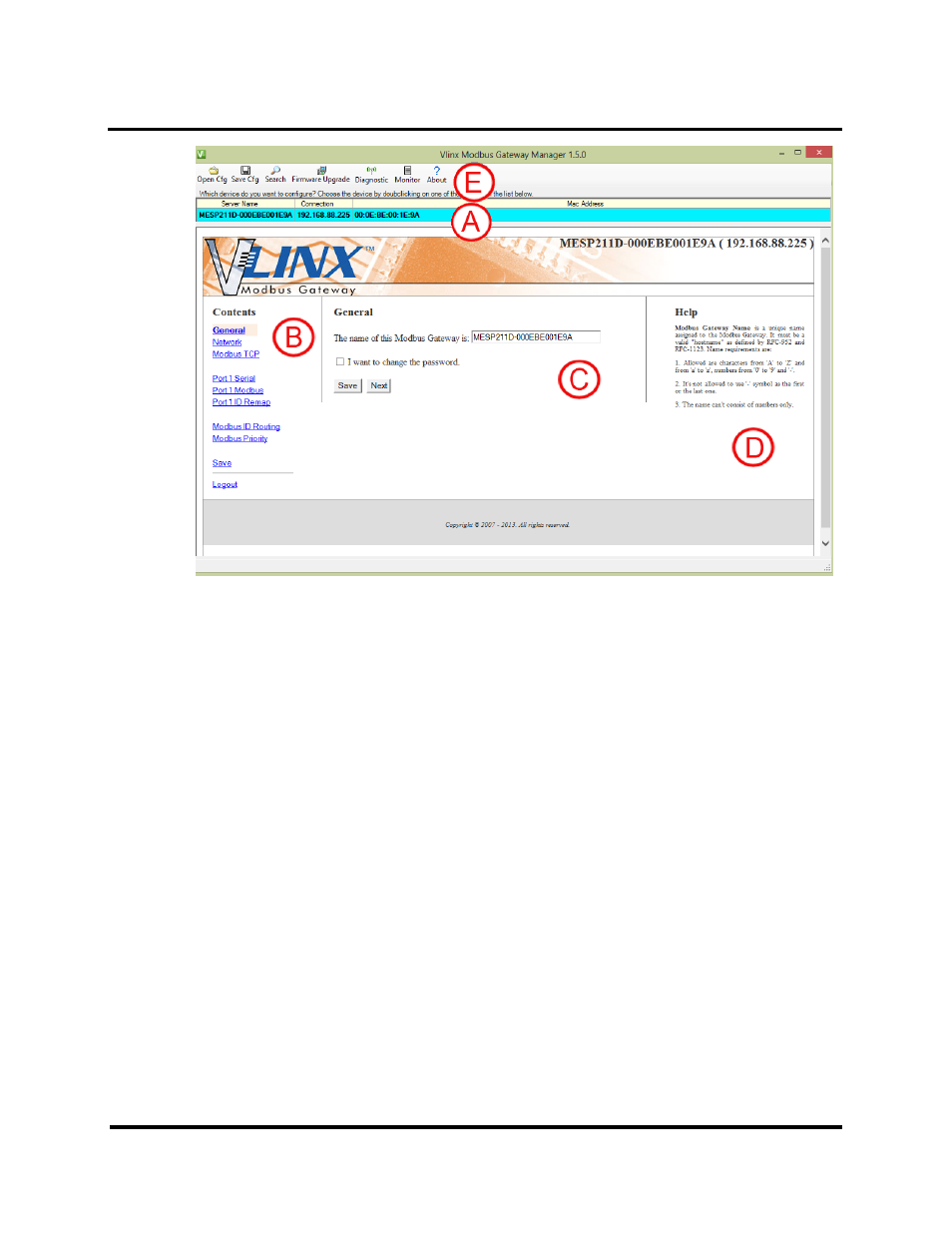

Figure 23.
a. This area shows Modbus Gateways available on the network.
b. This area is used to skip directly to the specific configuration screen you need
to access. An alternate method of accessing the configuration screens is to
use the “Next” button in area C.
c. This area contains dialog boxes specific the configuration screen.
1. Note: Any configuration changes you make need to be saved
using the “Save” button.
d. This area contains helpful information about the configuration screen you are
currently on.
e. This area contains shortcuts to specific functions.
1. “Open” allows you to load a previously saved configuration file into
your Modbus Gateway.
2. “Save” allows you to save your configuration to a file. This should
not be confused with the “Save” button described in 6.c above.
3. “Search” allows you to search for Modbus Gateways on the
network.
