Hardware

Vlinx MESP211 Modbus Gateway

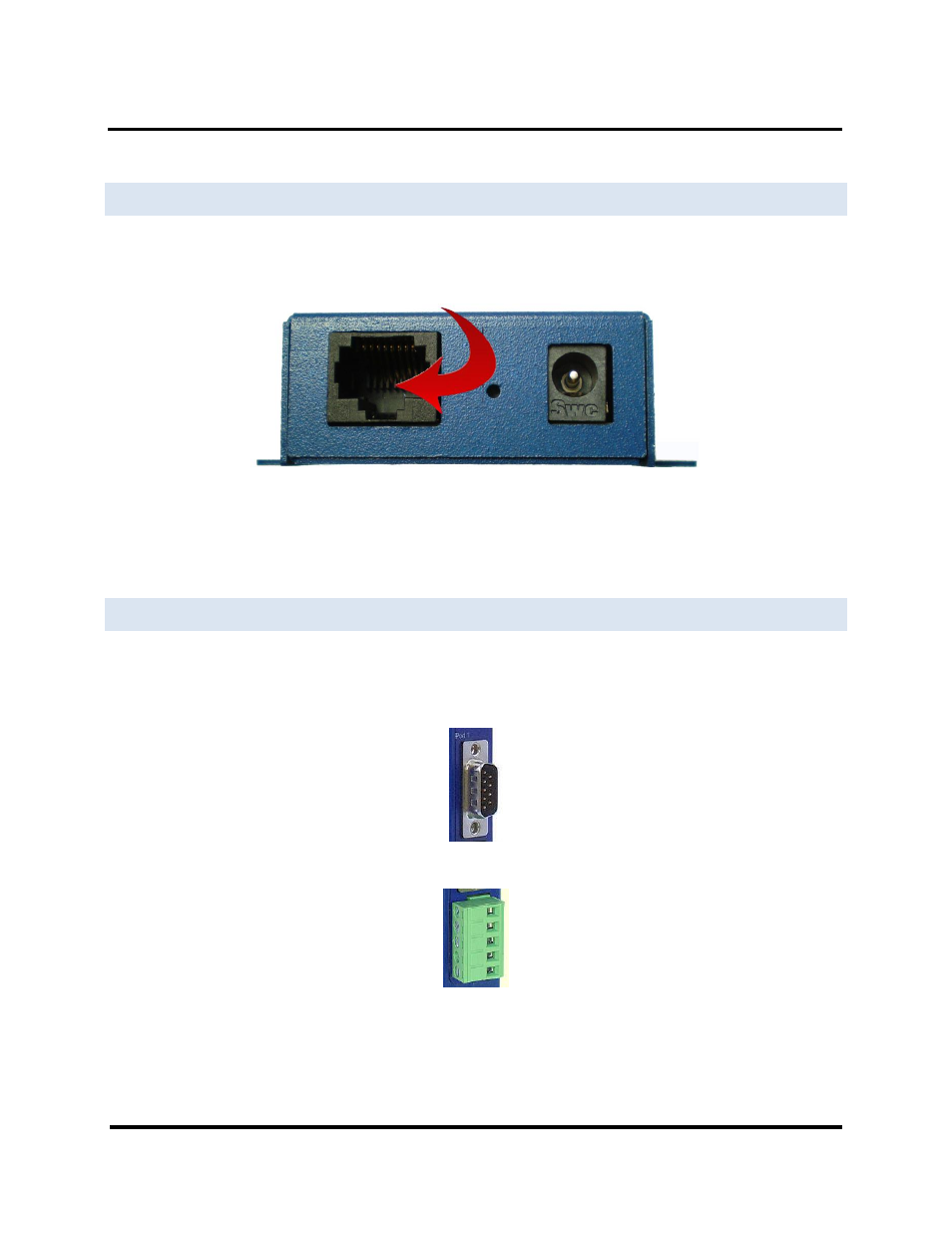

ETHERNET CONNECTOR

Modbus Gateway models using 10BaseT/100BaseTX network connections use an RJ45
receptacle. The Modbus Gateway is connected to a standard Ethernet network drop using a
straight-through RJ45 (male) Ethernet cable.

Ethernet Connector.

Figure 3.

Note: Refer to Appendix D for connection pin-outs.

SERIAL PORT CONNECTORS

The MESP211 has either a DB9M serial connector or a 5-position terminal block connector.

DB-9 Serial Port Connector (MESP211D)

Figure 4.

Five-Position Pluggable Terminal Block (MESP211T)

Figure 5.
