Setup and Connections Vlinx MESP211 Modbus Gateway
20

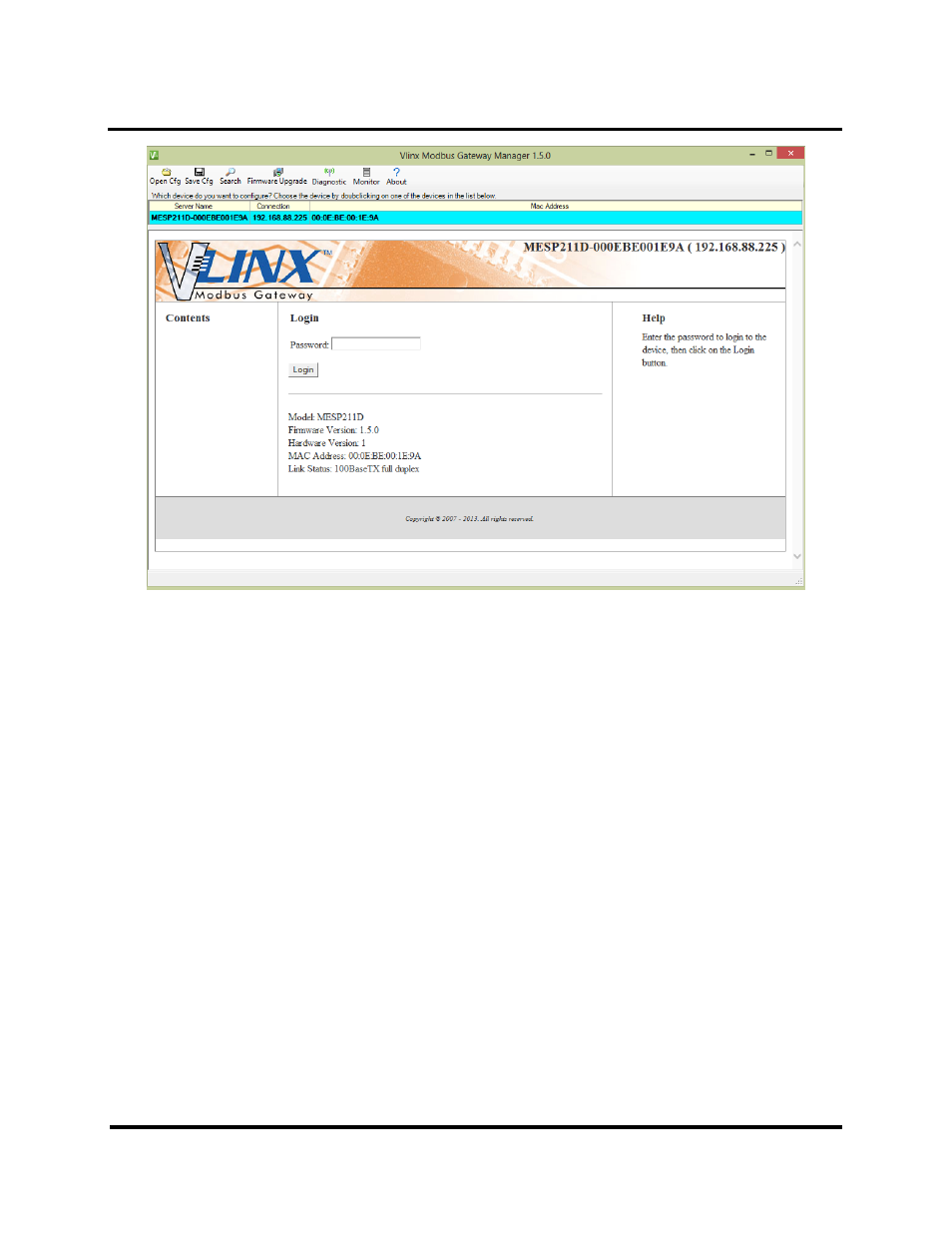

Configuration Manager Screen
Figure 22.
2. All Modbus Gateways on the network will be displayed in the top portion of the
screen. To select a gateway, simply click the appropriate device on the top
portion of the screen.
a. The main portion of the screen displays the Model, Firmware version,
Hardware Version, MAC Address, and Link Status. The IP Address is also
displayed on the top portion of the screen and title graphic area.
3. There is no password unless you choose to enter one. The default password is no
password at all. Click the “Login” button. The “General” Settings screen will be
displayed on your computer.
Vlinx Modbus Manager Settings Screen Overview
