Software Installation
Manual Documentation Number: ZXTx-IO-x-4113m 29

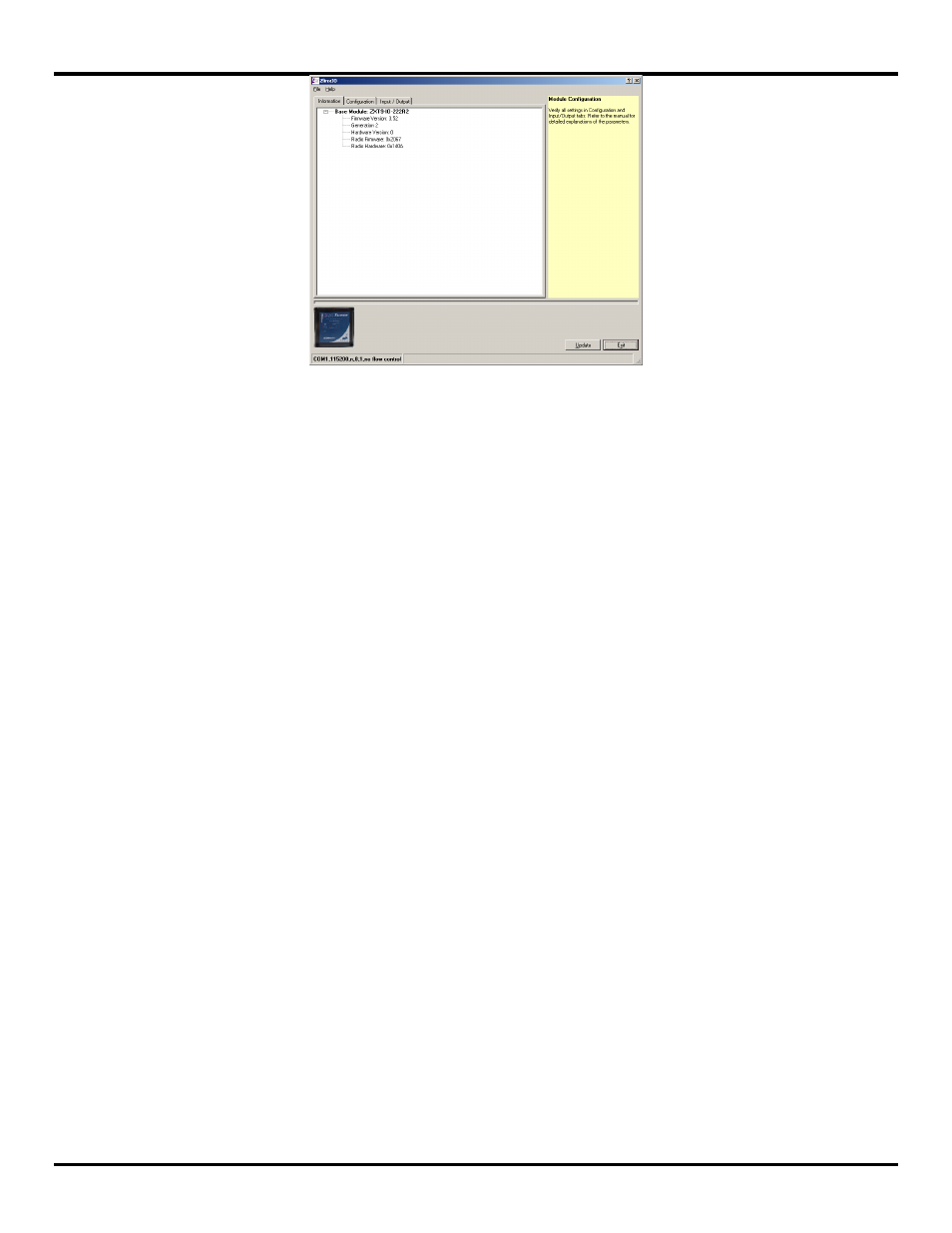

Fig 5.7 I/O Configuration Menu
The I/O Configuration Menu contains:
 Three tabbed panes: Information, Configuration, and Input/Output.
 A Help sidebar containing information and hints related to the current tab. If the sidebar is not visible enable it by
going to Help > Sidebar.
 A graphic display of the I/O Modules discovered.
 A Status bar (at the bottom) showing the COM port and communications parameters: baud rate, parity, data bits, stop
bits and flow control.
 An Update button used to save configuration parameters to the modules.
 An Exit button.
5.8 I/O Configuration Options
The following tabs are available in the I/O Configuration Manager. The configuration details are explained in Chapter 6.
5.8.1 Information Tab
The Information tab displays a tree structure listing:
 I/O Modules detected and their model numbers.
 Generation number.
 Firmware version number for each module.
 Hardware version number for each module.
 Radio firmware version number for the Xtreme Module.

Radio hardware version number for the Xtreme Module.
