Software Installation
26 Manual Documentation Number: ZXTx-IO-x-4113m

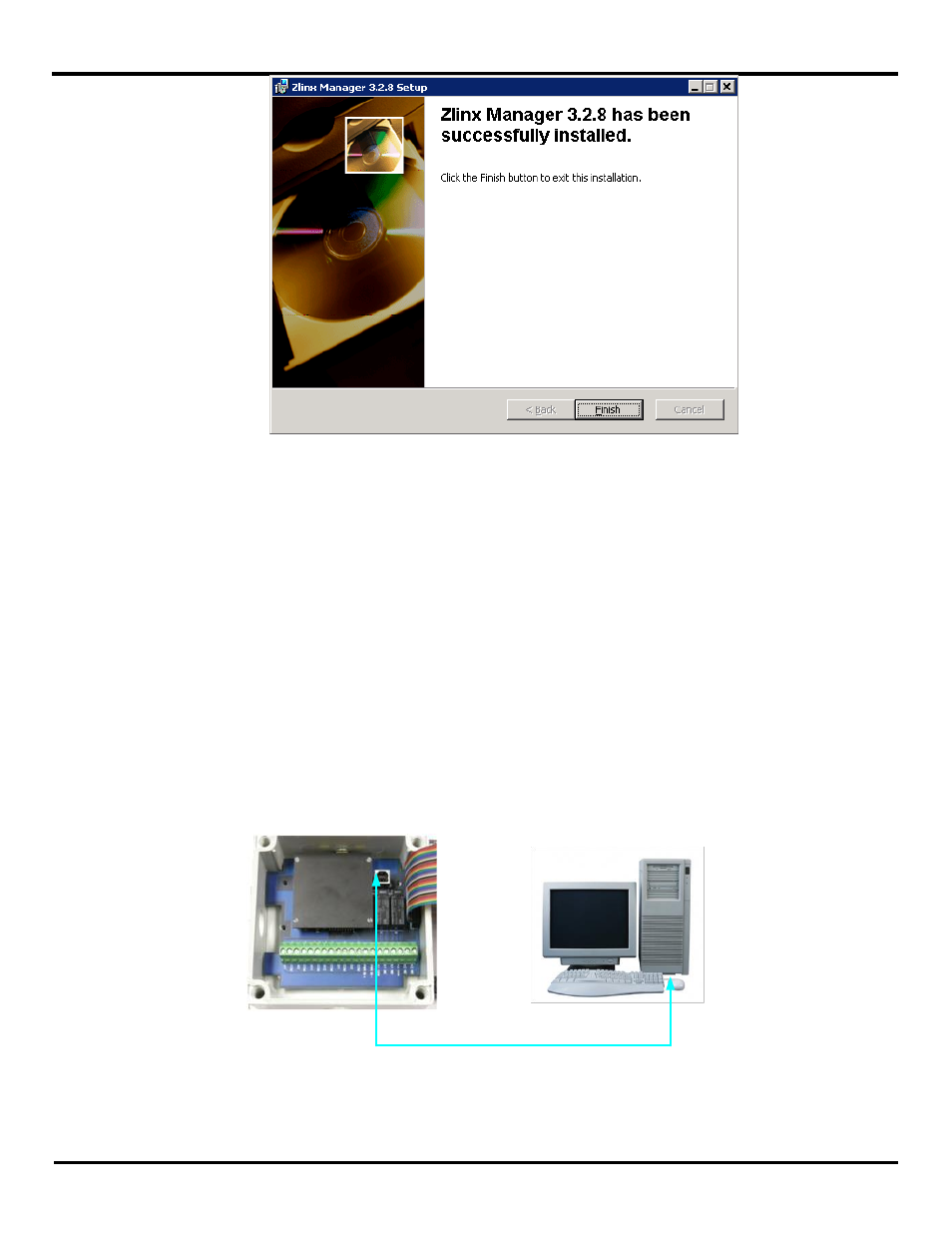

Figure 5-2 Installation Completion Screen
5.4 Installing USB Drivers
The USB drivers will automatically be installed when the software is installed. If the "Add New Hardware" wizard appears when
the hardware is attached, the USB drivers are available in the "USB Drivers" folder on the CD-ROM.
5.5 Establishing
Connection to PC
To connect Zlinx Xtreme I/O to a PC:
1. Open the front cover of the Zlinx Xtreme I/O module
2. Apply power to the I/O unit
3. Connect the PC USB port to the USB port of the Zlinx Xtreme I/O Module using a USB cable.
4. Now the Zlinx Xtreme I/O module is ready to be configured from the PC.
Zlinx Xtreme
I/O (inside
view)
Configuration
PC
USB Cable
Figure 5-3 PC to I/O Module Connection
