10. 4 x 5 Distributor Platform (Optional)
PNEG-1807 16"-24" Bucket Elevator Platform and Ladder “X” Series 73

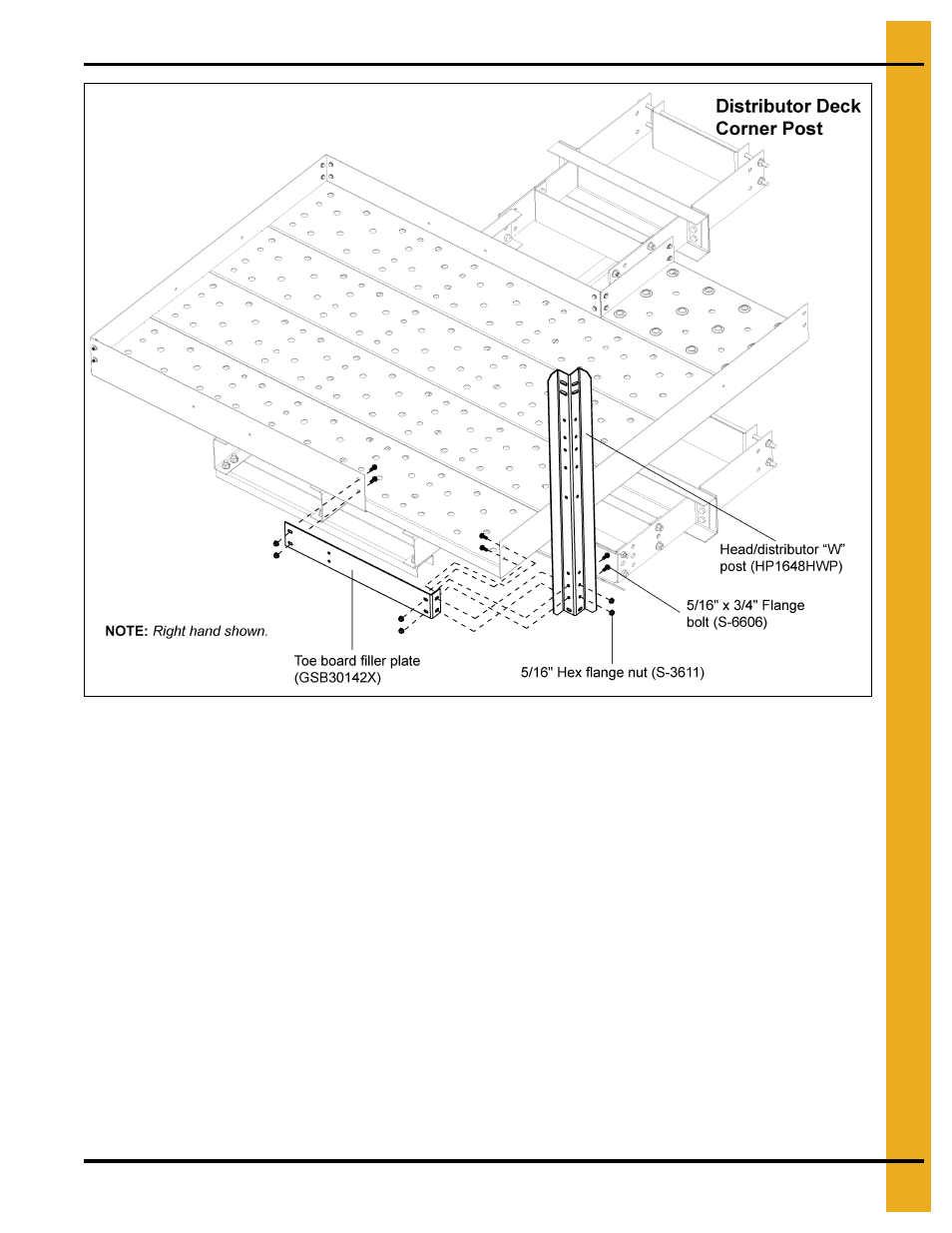

Figure 10K Distributor Platform Corner Post
Install Handrail Posts - Non Entrance Side
1. Install the remaining two (2) “W” corner posts to the corners on the non-entrance side of the decking
using four (4) 5/16" x 3/4" flange bolts and nuts per post.
2. Install platform post (HP1648HCP) to the inside corner of the decking near the entrance to the
platform using four (4) 5/16" x 3/4" flange bolts and nuts.
3. Attach side posts (HP1648HP) to the decking at the entrance to the platform using two (2)
5/16" x 3/4" flange bolts and nuts per post. (See Figure 10L on Page 74.)
