7. Rest Platform
40 PNEG-1807 16"-24" Bucket Elevator Platform and Ladder “X” Series
3. Install the handrail platform posts to the rest platform mounting channels and rest platform channels
using six (6) 5/16" x 3/4" flanged hex bolts for each post, four (4) bolt to the front and two (2) on the
side.
(See Figure 7I.)

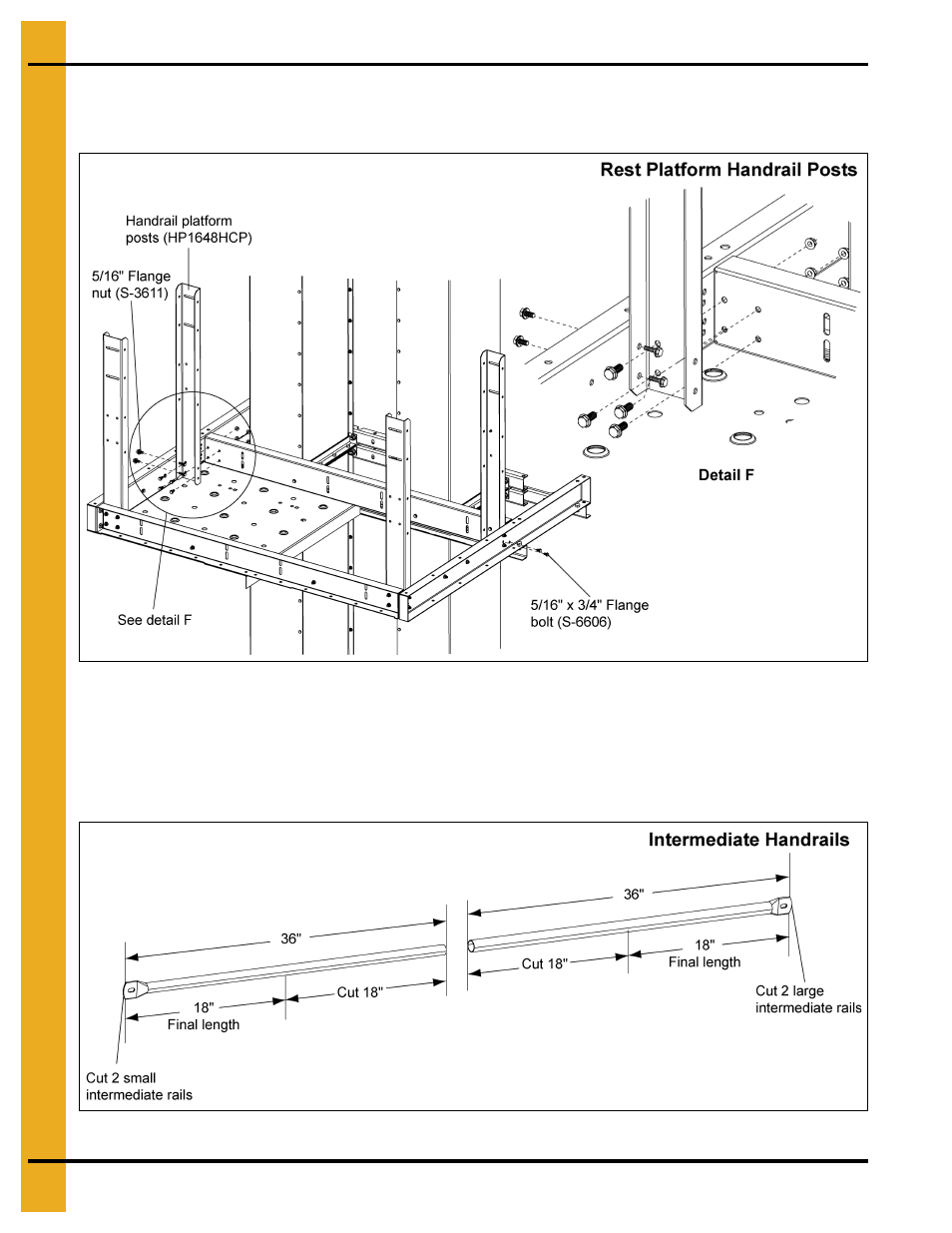

Figure 7I
4. Assemble the intermediate handrails by sliding the small handrail into the larger handrail to create a
telescoping handrail that can be adjusted to the correct length between the posts. Two (2) of the
small intermediate handrails and two (2) of the large intermediate handrails will need to be cut to fit.
The starting length of each rail is 36". Cut 18" off the end of each rail so the final length of each rail
is 18".
(See Figure 7J.)
Figure 7J
