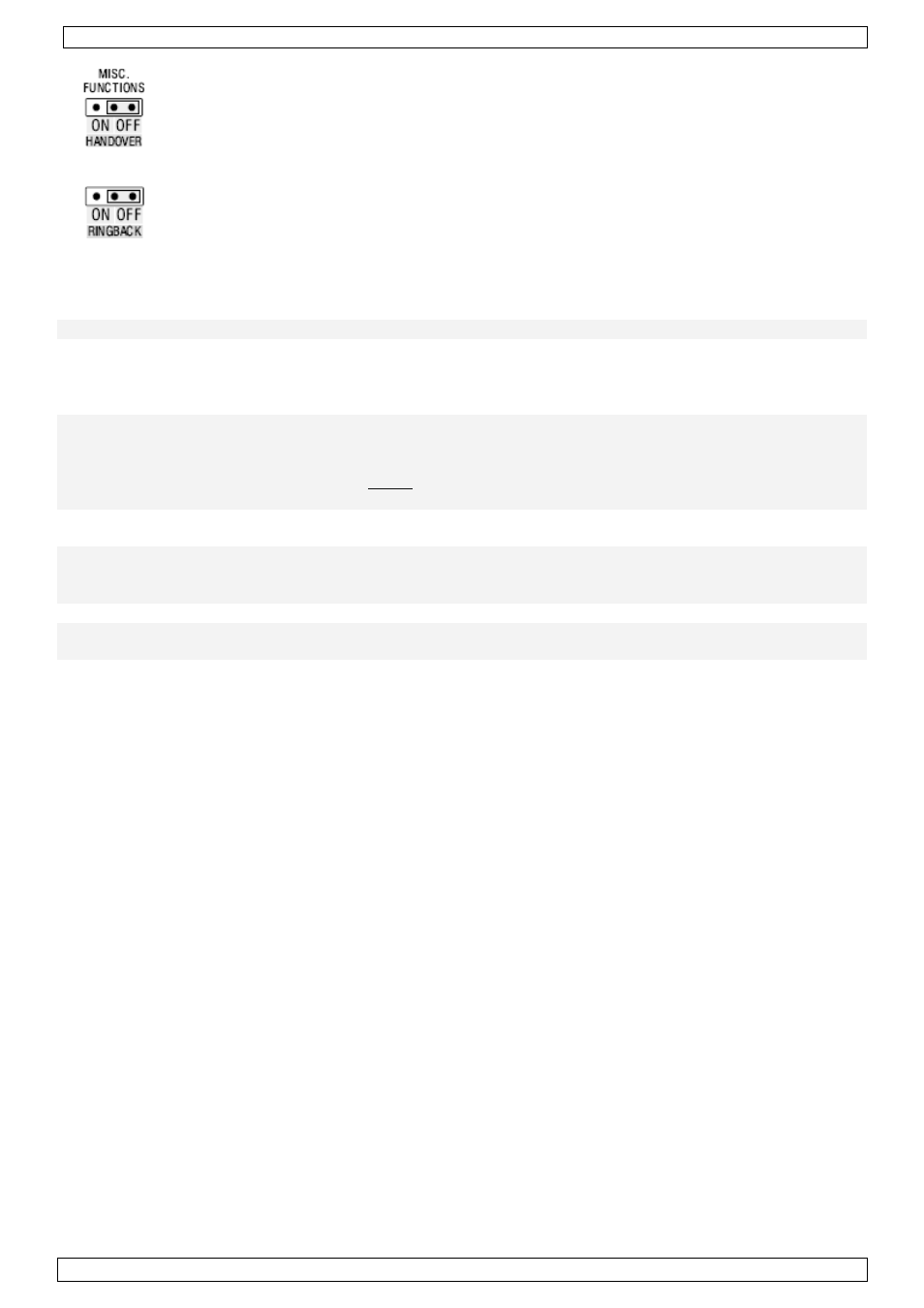

With the handover function enabled, when zone 7 is triggered first, the instant zones
(except for the 24 hour instant zone) will set the same entry delay period as zone 7.
The instant zones will resume to instant mode after the entry delay time expires.
When another instant zone is triggered first, the alarm will sound instantly. This setup
allows that entry via one entrance (e.g. main door) delays the whole alarm system,
while attempts to enter via a different way will immediately trigger the alarm.

When set in the ON position, the ring-back function enables contact 7 twice for a short
while when the system is armed or ones when the system is disarmed. This produces
a sound signal through the connected siren or bell.


Audible notifications
During operation, following audible signals will be generated by the master control unit.

Event

Notification

System in Exit Delay Period
OR
System in Entry Delay Period

Exit And Entry Beeps

Short beeps at 0.5 second interval

Increase to 4 beeps/second at the last 10 seconds, then

One long beep to indicate the end of the delay period

System in Standby Mode Period

Short beeps at 0.5 second interval

Increase to 4 beeps/second at the last 10 seconds, then

One long beep to indicate the end of the period

Note: beep halts when programming mode or battery test is
started.

System is or was in Alarm condition
(Alarm occurred)

Warning beeps

4 fast beeps at 1 second interval

Successful Keypad operation
OR
Battery is Normal after Testing

2 Short beeps

AC power Failure

1 Short beep/30 seconds

Battery Low After Testing

5 Short beeps first, then

1 Short beep/30 seconds


Opening the cabinet
The HAM263D master control unit is protected from opening by a built-in tamper switch. Opening
the cabinet door will trigger the alarm.

Before opening the cabinet, put the system in stand-by mode. To do this, disarm the system via
the keypad. Refer to the section on the keypad for the procedure.

Specifications

power supply

16.5 VDC, 3 A

back-up battery requirements

7 Ah, 12 V, rechargeable sealed lead acid battery (not incl.,
order code WP7-12)

standby current

typically 100 mA

temperature range

0 °C to +65 °C

entry delay

15 - 90 s

exit delay

60 s

alarm duration

3 - 15 min or infinite

power up delay (standby mode)

60 s

dimensions master unit

270 x 265 x 78 mm

dimensions keypad

117 x 117 x 27 mm

dimensions box

346 x 540 x 152 mm

weight (master unit + keypad)

2.5 kg


2.2

Battery

To be fully reliable, the alarm system requires a back-up battery (not included). This should be a
sealed

rechargeable

12V lead-acid battery with capacity 6,5~7,0Ah. Normal back-up time is about

16 hours at 250mA. Expected battery life-time is about 3 to 5 years.
