HAM263D
03 (15/11/2013)
VELLEMAN
5
•
The following 12 contacts are for the connection of sensor inputs e.g. PIR detectors (HAA52N),
magnetic contacts (HAA25, HAA27) panic buttons (HAA60) … They represent zone 1 to 8 and their
common groundings. The zones are End of Line (E.O.L.) monitored by a 2.2KΩ resistor.
•

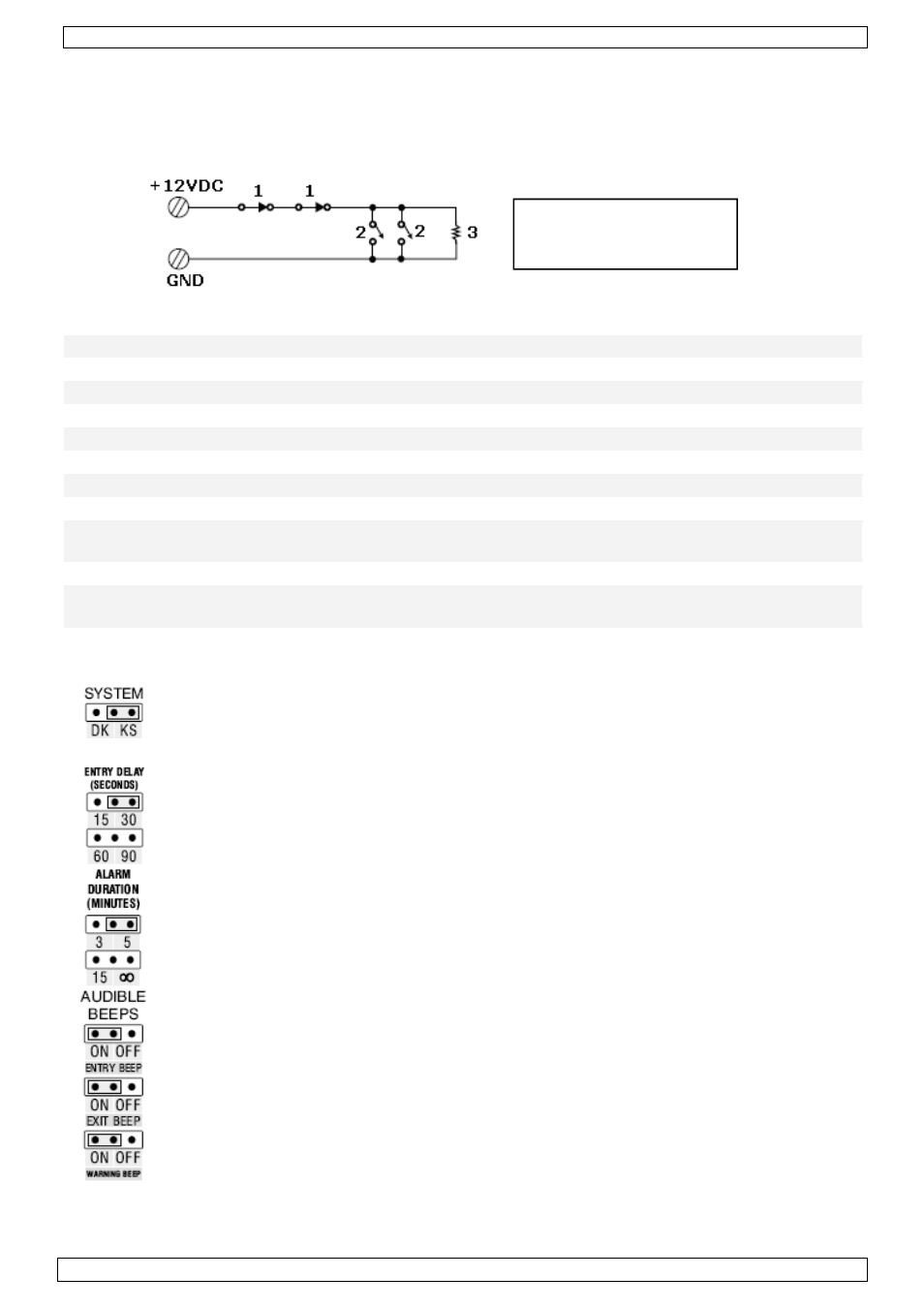

All normally closed (N.C.) contacts are to be wired in series with the E.O.L. resistor, where all
normally open (N.O.) contacts are to be wired in parallel with the E.O.L. resistor.
17 Zone 1 Delay
Partition 1
18 GND
Common ground for zone 1 and zone 2
19 Zone 2 Instant Partition 1
20 Zone 3 Instant Partition 1
21 GND
Common ground for zone 3 and zone 4
22 Zone 4 Delay
Partition 2
23 Zone 5 Instant Partition 2
24 GND
Common ground for zone 3 and zone 4
25 Zone 6 Instant Partition 2
26 Zone 7 Delay
Common, for common area e.g. lobby. Disarmed when either one of the
partitions is disarmed, only armed when both partition 1 and 2 are armed.
27 GND
Common ground for zone 7 and zone 8
28 Zone 8 Instant Common, 24 hour instant alarm. Cannot be switched off, except in standby
mode.
Programming jumpers
System setting: Key Switch (KS) or Digital Keypad (DK).
KS: for systems with only key switch arm/disarm control (not applicable for
HAM263D)
DK: for systems with digital keypad and combined keypad/key switch control.
This jumper sets the time for the entry delay. This is the time between arming the
partition/zone and the beginning of detection in that zone. Entry delay is used in
zones 1, 4 and 7 and can be set to 15, 30, 60 or 90 seconds.
This setting determines the duration of the output signal on contact 7, and thus the
duration of the activation of connected devices e.g. siren, bell …. Possible options are
3, 5 or 15 minutes, or indefinite (until manual reset).
It is strongly advised not to use the indefinite option when using sirens or bells. Many
local authorities do not allow it.
These 3 jumpers control the entry, exit and warning beeps.
The entry beep sounds during the entry delay period
The exit beep sounds during the exit delay period
The warning beep depends on the status of the system:
a.
Only one partition armed. Warning beep sounds during alarm and resets after
alarm expiration time.
b.
Both partitions armed. Warning beep sounds during alarm and continues until
one of the partitions is disarmed.
1. N.C. contact
2. N.O. contact
3. 2.2KΩ E.O.L. resistor
