Assemble power divider cover – Spicer Tandem Drive Axle Dual Range & Double Planetary 34,000-45,000 lbs User Manual
Page 39

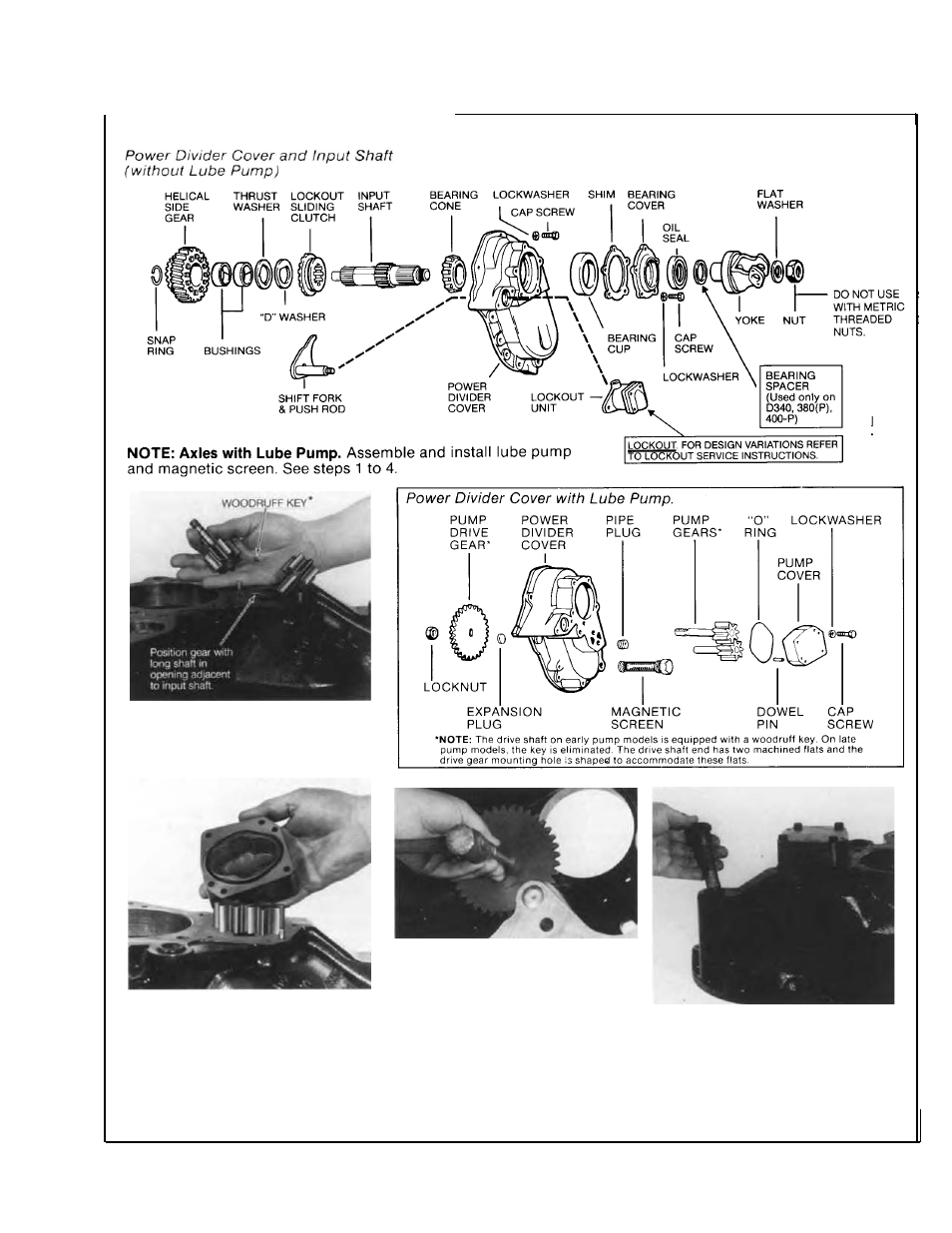

Assemble Power Divider Cover
LOCKOUT. FOR DESIGN VARIATIONS REFER
TO LOCKOUT SERVICE INSTRUCTIONS.
1.
*See note on exploded view.
Install pump gears in power divider
cover (position gear with long shaft
in opening adjacent to input shaft).
2.
Install "O" ring in pump cover,
making sure "O" ring is seated
firmly in cover. If removed, install
dowel pins. Install pump cover on
power divider cover and secure
with cap screws and lockwashers.
Tighten to correct torque (85-105
IN-LBS., 10-12 Nm).
3. Install Pump Drive Gear.
Install
drive gear on pump shaft end.
NOTE:
Some pump drive shafts use
a woodruff key. When key is used.
place key in shaft slot. Position
4.
Install magnetic screen in power
gear on shaft engaging key. Then
divider cover. Tighten to correct
install gear with driver and hammer. torque (40-60 Ft-lbs., 54-81 Nm).
NOTE:
Install and tighten drive
gear nut after input shaft is assem-
bled to power divider cover (see
step 10).
39
