Ohaus DEFENDER 7000 BENCH SCALES Manual en User Manual
Page 9
7000 Series Indicators EN-7
1
15 14 13 12 11 10
2
3
4
5
6
7
8
9
Item Description
1
Data label (on top)
2
Front housing
3
Control Panel
4
Adjusting knob (2)
5
Mounting bracket
6
Bolt (4)
7
Rear housing
8
Data label
9
Location for security
screw
10
Power cord
11
Cable gland for Scale 1
load cell cable
12
Cable gland for Scale 2
load cell cable
13
Cable gland for RS232
option, RS485/RS422
option or External Input
cable
14
Cable gland for RS232
cable
15
Cable gland for Relay
option cable

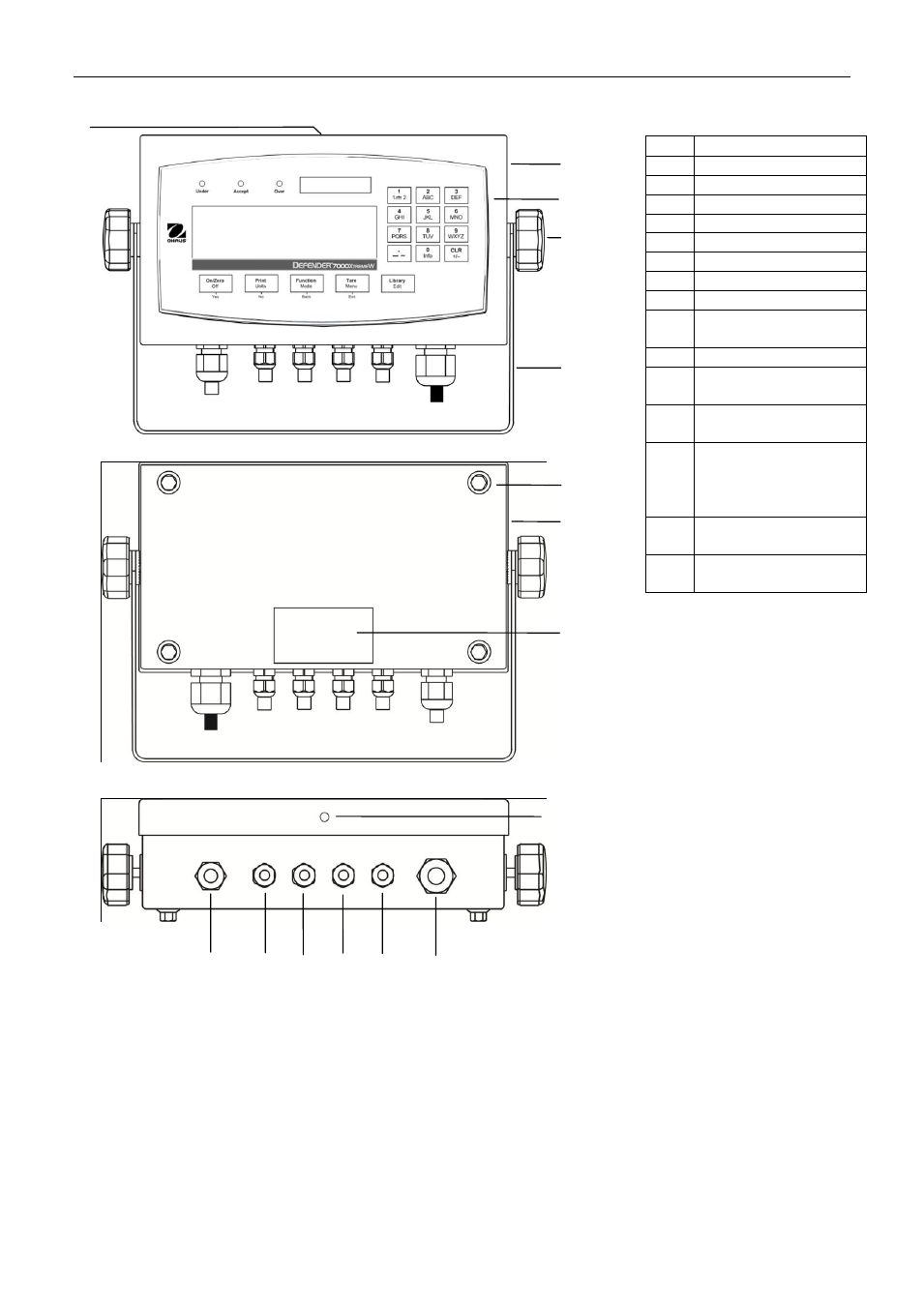

Figure 1-2. T71XW Indicator
