7000 Series Indicators EN-9
2 3 4 5 6
1
Library
Edit
Tare
Menu
Exit
Function
Mode
Back
Print
Units
No
On/Zero
Off
Yes
3
DEF
2
ABC
4
GHI
5
JKL
6
MNO
7
PQRS
8
TUV
9
WXYZ
0
Info
CLR
+/–
1
1
rr
2
Under Accept Over
11 10 9 8 7
Item Description Item Description
1 Display window 7 LIBRARY Edit button
2 UNDER LED 8 TARE Menu Exit button
3 ACCEPT LED 9 FUNCTION Mode Back button
4 OVER LED 10 PRINT Units No button
5 Capacity label window 11 ON/ZERO Off Yes button
6 Keypad

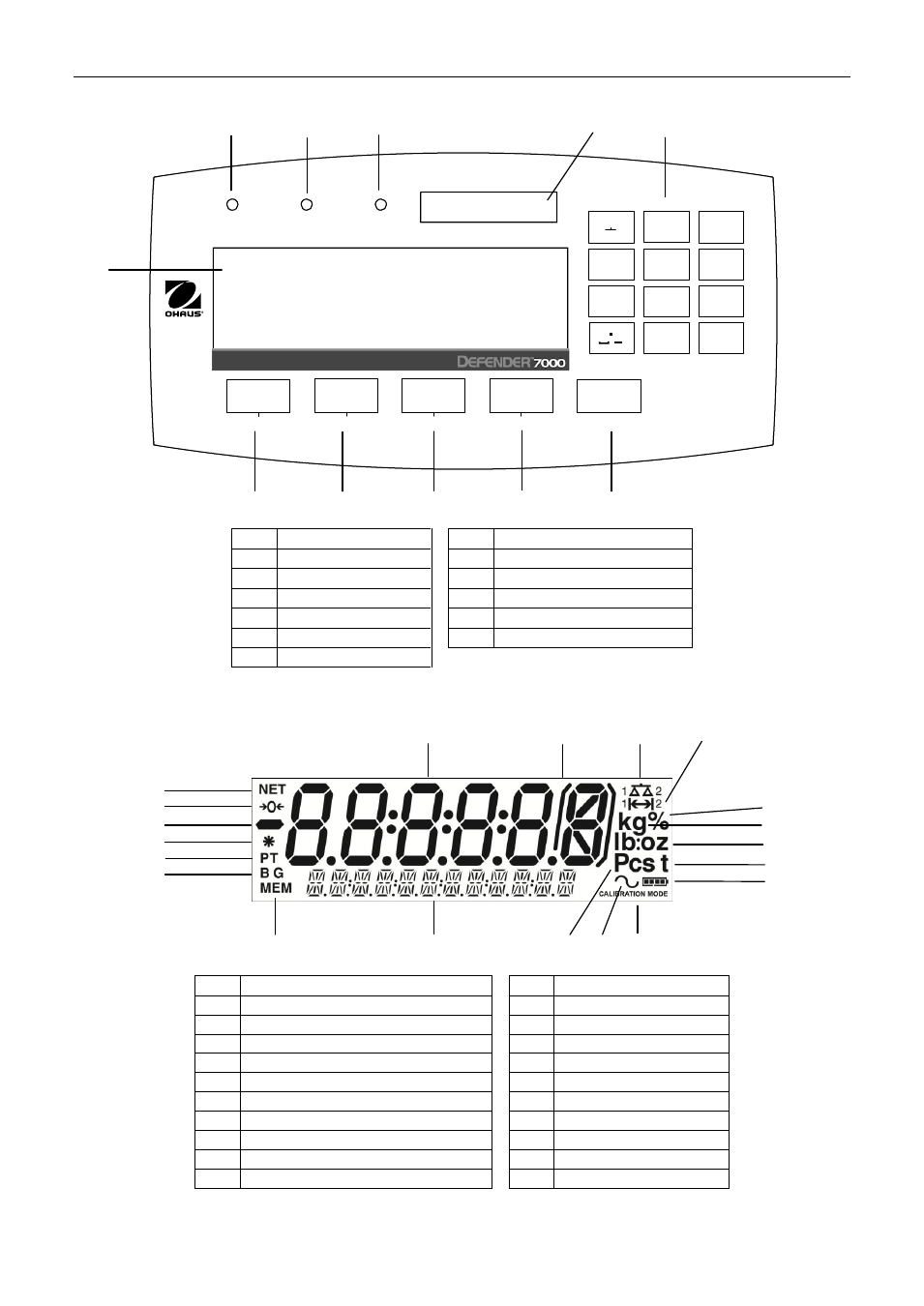

Figure 1-4. Control Panel
1 2 3 4
20
19
18
17
16
15
5
6
7
8
9
14 13 12 11 10
Item Description Item Description
1 7-segment display 11 Dynamic symbol
2 Brackets (not used) 12 Pieces symbol
3 Scale symbol 13 14-segment display
4 Range symbol 14 Memory symbol
5 Kilogram, gram symbols 15 Brutto, Gross symbols
6 Percent symbol 16 Preset Tare, Tare symbols
7 Pound, Ounce, Pound:Ounce symbols 17 Stable weight symbol
8 Tonne symbol 18 Negative symbol
9 Battery charge symbol 19 Center of Zero symbol
10 Calibration Mode symbol 20 NET symbol
Figure 1-5. Display
