EN-8 7000 Series Indicators
1 2 3 4 5 6 7 8 9 10 11 12
17
16
13
15 14
Item Description Item Description
1 RS232 connector (T71P only) 10 Scale 1 sense jumper W1
2 RS232 terminal block J5 (T71XW only) 11 Security switch SW1
3 External input terminal block J9 12 Rechargeable battery option connection J3
(T71P opposite side)
4 Scale 2 sense jumper W4 13 Real time clock battery
5 Scale 2 load cell terminal block J7 14 DC power connection
6 Scale 2 sense jumper W3 15 Alibi option connection
7 Scale 1 sense jumper W2 16 Option connection
8 Scale 1 load cell connector J14 (T71P only) 17 Battery connection (T71P only)
9 Scale 1 load cell terminal block J4

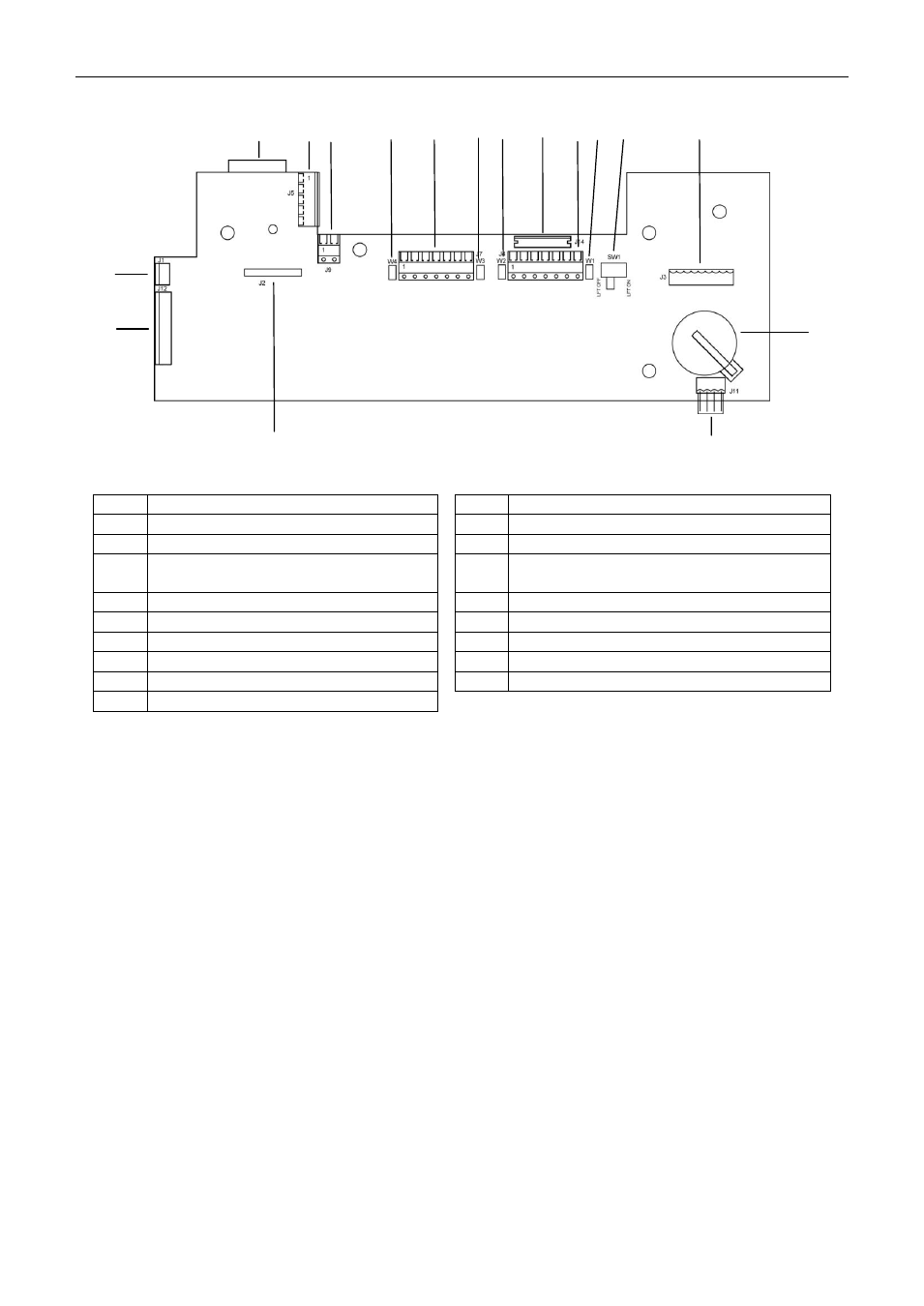

Figure 1-3. Main PC Board
