Issue 5.8.B IPDirector Version 5.8 – User Manual – Part 1: General Workspace
EVS Broadcast Equipment – July 2010
66
Action Description
TALLY Activates or deactivates the on-air flag on the selected
channel.
EXITASAP Initiates a command to exit the loop as soon as possible
without playing the current element until its end and jump to
the selected element.
EXITOUT Initiates a command to exit the loop as soon as the OUT point
of the current element is reached and jump to the selected
element.
NONE No value is defined.
Channel
The Channel field allows the user to define the channel on which the GPI key
action will be executed. The possible values are:
• a channel of the EVS server to which the GPI is physically linked
• the ‘None’ value.
Trigger Mode
The Trigger Mode field allows the user to define the type of trigger signal that will
be sent by the GPI to the EVS server. The following trigger modes can be defined:

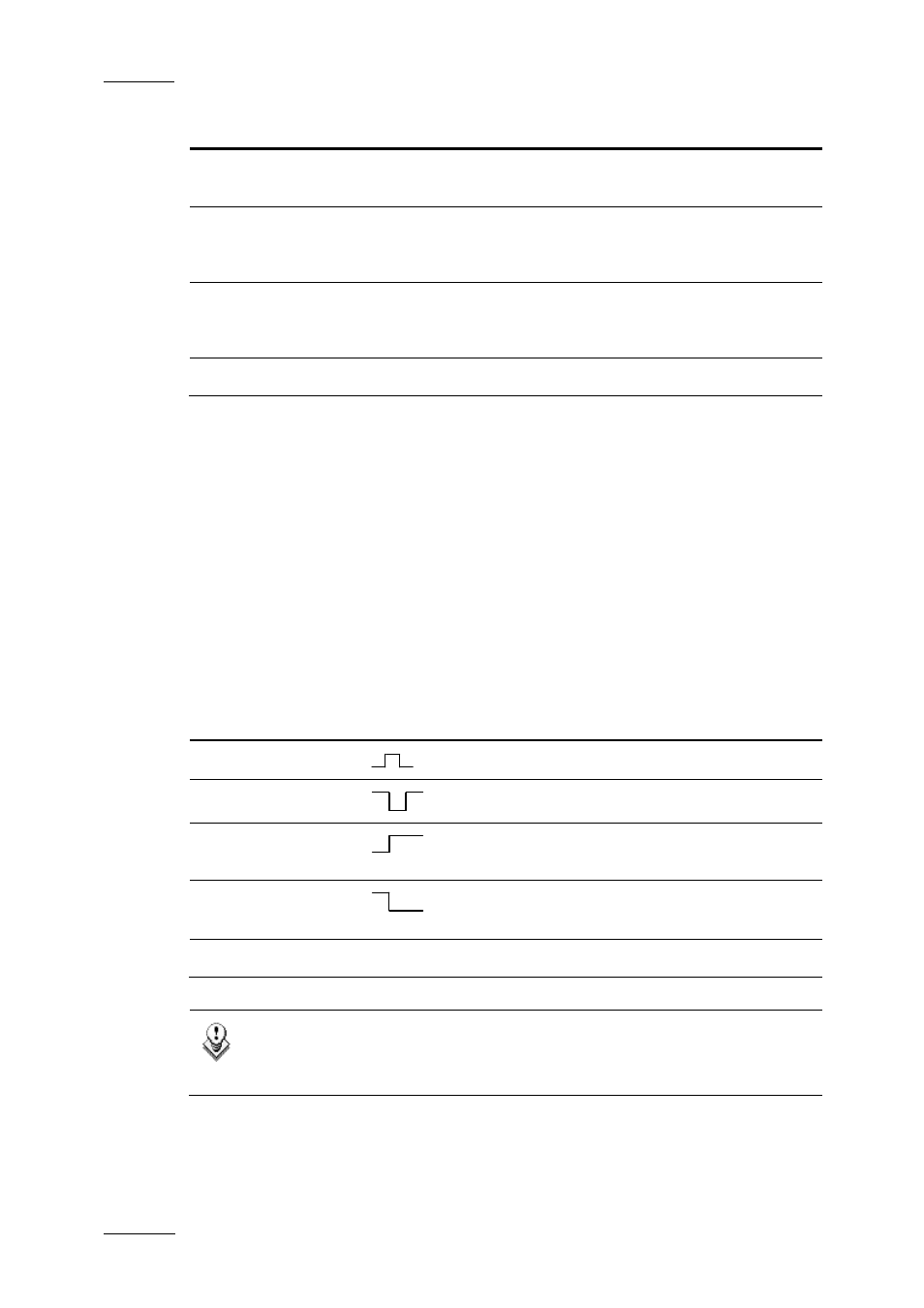

Trigger Mode Description
Pulse Rising Edge The trigger is done on a rising edge pulse.
Pulse Falling Edge The trigger is done on a falling edge pulse.
Level High The trigger is done when the level changes to
high level
Level Low The trigger is done when the level changes to
low level
None No trigger mode is defined.
Note
If the operator selects ‘None’ for one of the fields, all three fields are
reset to ‘None’. It is considered that the GPI is not used.
