IPDirector Version 5.8 – User Manual – Part 1: General Workspace
EVS Broadcast Equipment -– July 2010
Issue 5.8.B
27
• The selected message has a darker background than the normal background.
M
ESSAGE
F
ILTER
The user can perform a filter on the message type by clicking the message type
icons displayed on the top left corner of the expanded Message bar:
• When the message type icon has a pink background, the messages that belong
to that type are displayed, if any.
• When the message type icon has a blue background, the messages that belong
to that type are not displayed.
A
CKNOWLEDGE
B
UTTON
When the users have read a message, they can acknowledge it by clicking the
ACK button. The Acknowledge button changes the background of the selected
message to grey. This helps the user distinguish the messages that have been
dealt with from the ones that have not.
2.7.5 P
ROCESS
S
TATUS
I
CONS

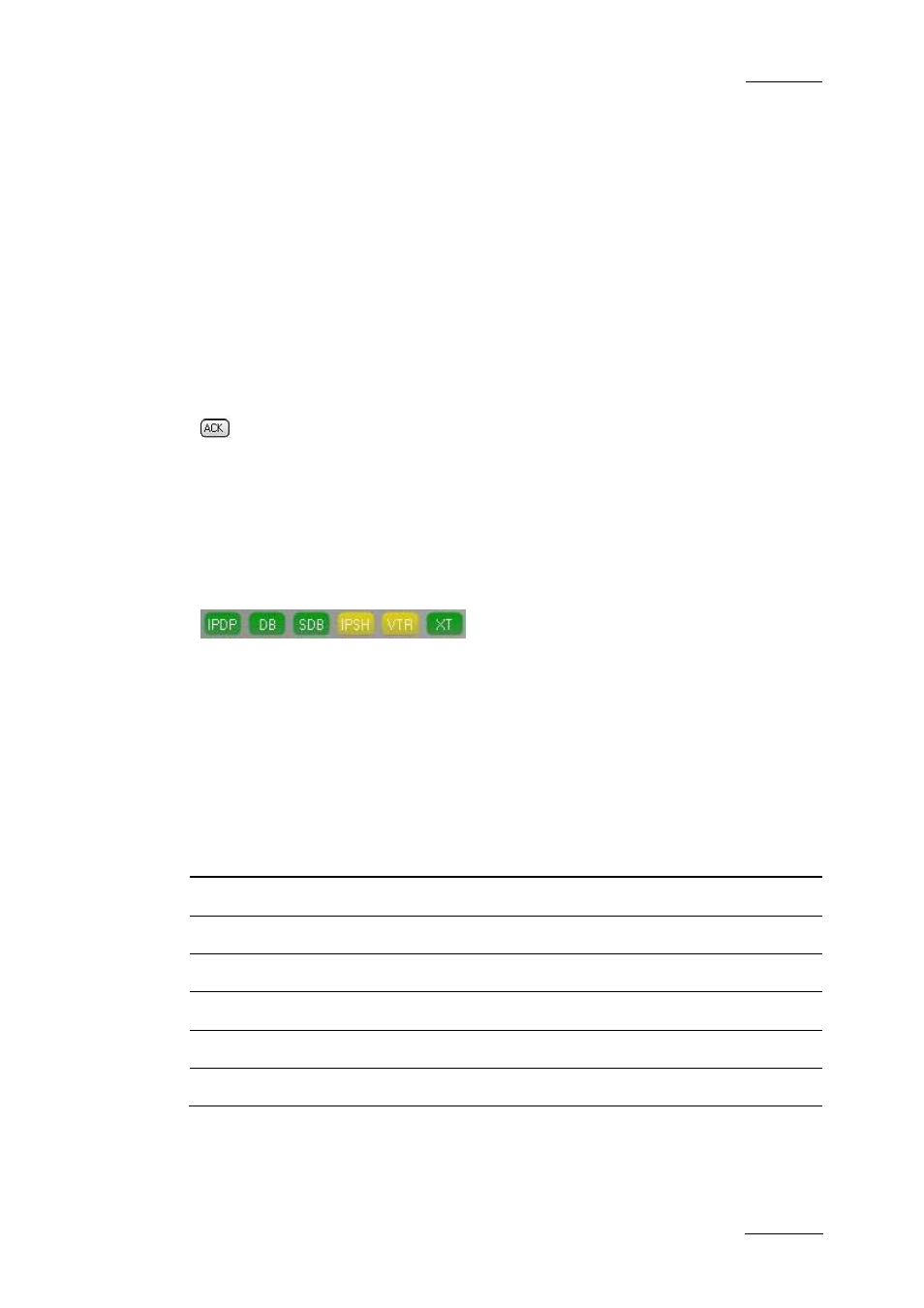

The background colour of the Status icons provides information on the status of
the processes that run in the background:
• When the background colour is green, the process is running or the connection
is established.
• When the background colour is yellow, the process is not running or the
connection is not established.
For more information on these processes, refer to the Technical Reference
manual.
Icon Description
IPDP Status icon for the IPDirector Routing process
DB Status icon for the database connection
SDB Status icon for the SynchroDB process
IPSH Status icon for the IP Scheduler process
VTR Status icon for the VTR Engine process
XT Status icon for the EVS video server connection
