900 clips with up to 6 sub-clips per clip result in 5400 "clip registers" in each EVS video
server.

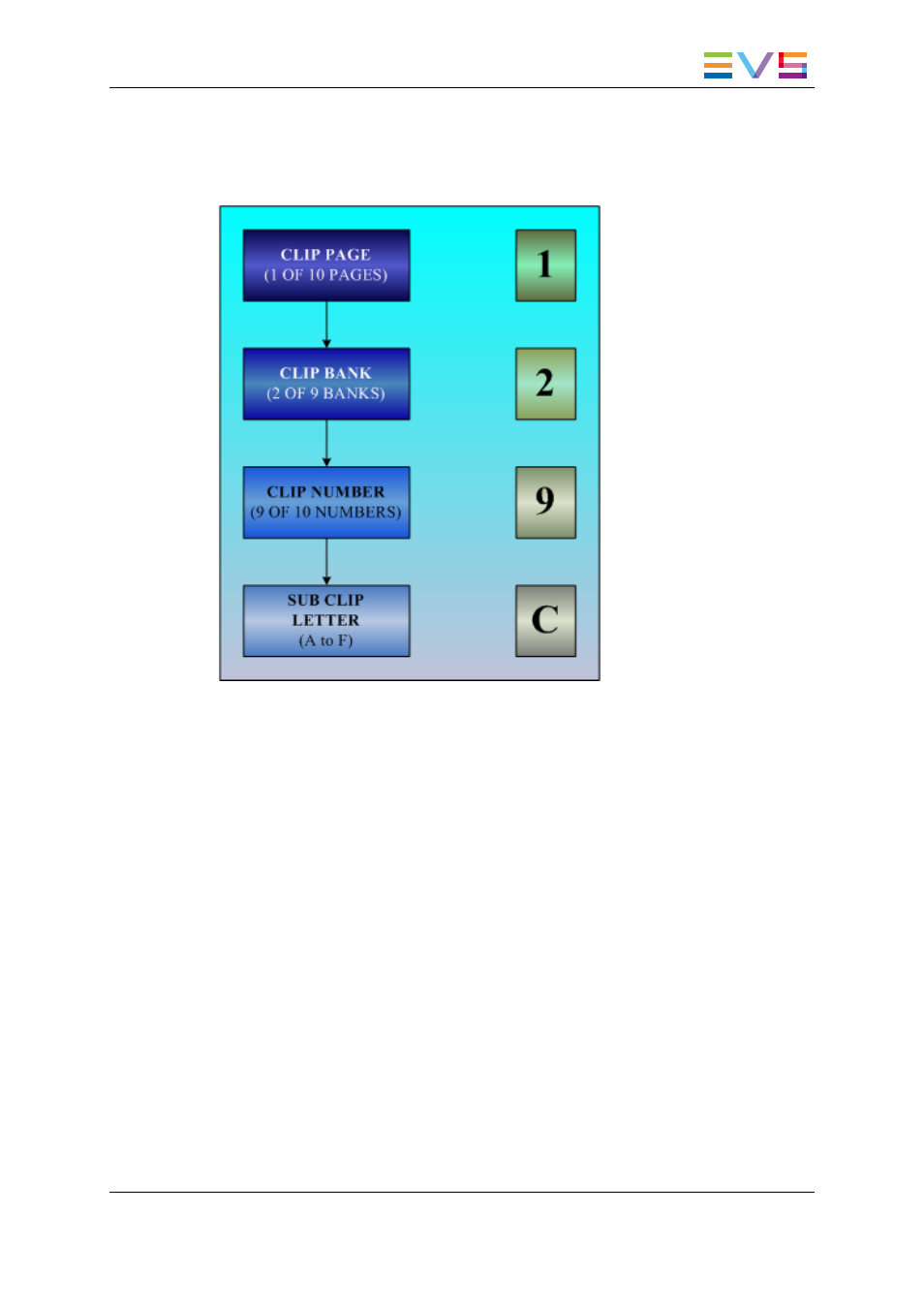

The following diagram represents the hierarchy of the XT clip numbering system. As an
example, clip number "129C" is used:
The number of the EVS video server within the network structure is also added to define
the precise location of the clip. For example if clip 129C is stored on the machine allocated
with the network number 2, the clip would be identified as 129C/02.
The LSM ID is this identification made up of page nr + bank nr + position in the bank +
server nr.
Virtual LSM ID / Real LSM ID
Real LSM ID
The real LSM ID reflects the location where a XT high resolution clip or a XT low resolution
clip will be saved, as described in section "Understanding Clip Structure on an EVS Video
Server" on page 18.
In the Elements grid displayed from the Clip Elements view, the real LSM ID is always
mentioned.
