ES-2108 Series User’s Guide
Chapter 8 VLAN 87
8.5.2 Static VLAN Details
Use this screen to view detailed port settings and status of the VLAN group. See Section 8.1
on page 83 for more information on static VLANs. Click on an index number in the VLAN
Status screen to display VLAN details.

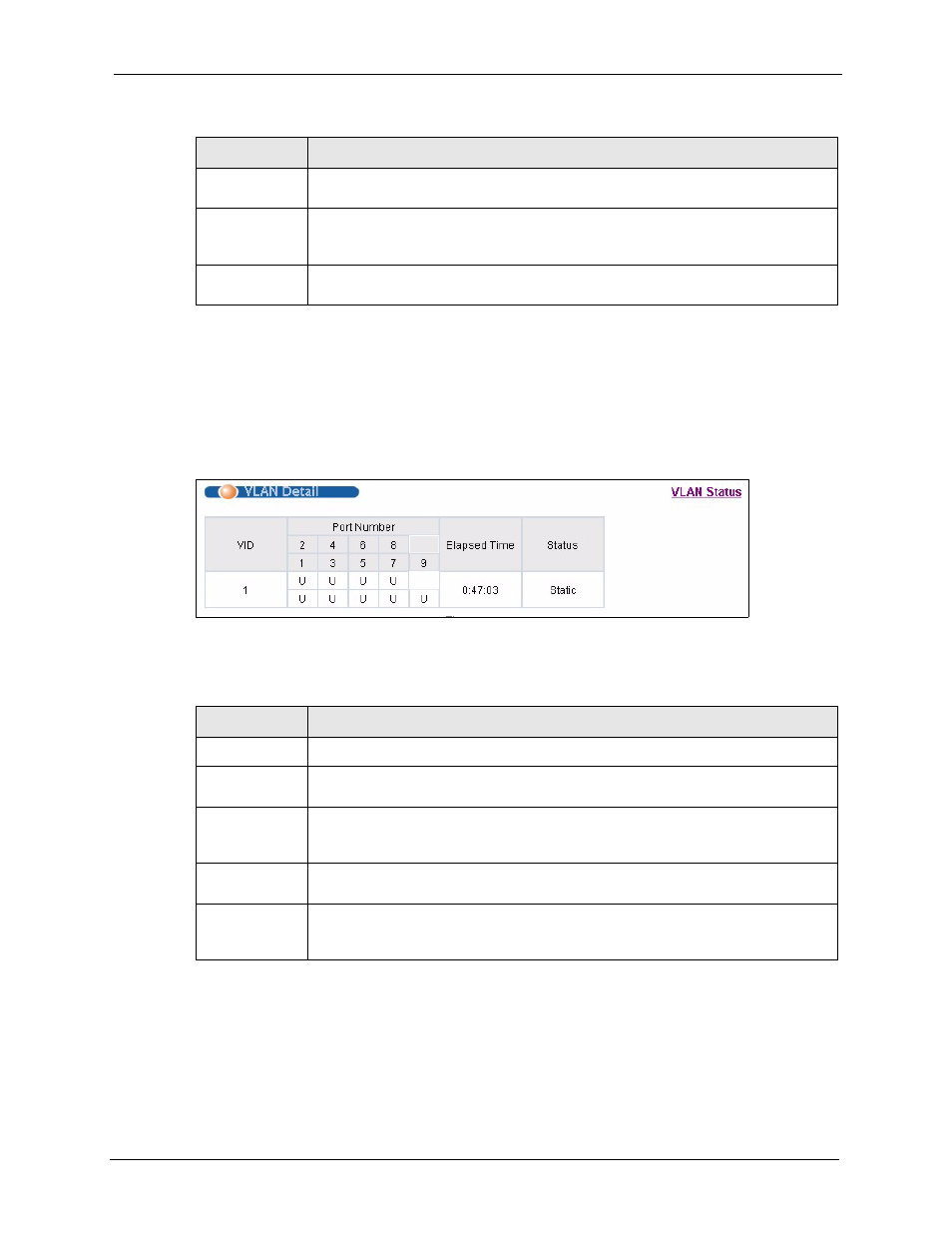

Figure 40 Static VLAN Details
The following table describes the labels in this screen.
8.5.3 Configure a Static VLAN
Use this screen to configure and view 802.1Q VLAN parameters for the switch. See Section
8.5 on page 86 for more information on static VLAN. To configure a static VLAN, click
Static VLAN in the VLAN Status screen to display the screen as shown next.
Elapsed Time This field shows how long it has been since a normal VLAN was registered or a static
VLAN was set up.
Status This field shows how this VLAN was added to the switch; dynamic - using GVRP,
static - added as a permanent entry or it shows other - added using Multicast VLAN
Registration (MVR).
Change Pages Click Previous or Next to show the previous/next screen if all status information
cannot be seen in one screen.
Table 15 VLAN: VLAN Status (continued)
LABEL DESCRIPTION
Table 16 Static VLAN Details
LABEL DESCRIPTION
VLAN Status Click this to go to the VLAN Status screen.
VID This is the VLAN identification number that was configured in the Static VLAN
screen.
Port Number This column displays the ports that are participating in a VLAN. A tagged port is
marked as T, an untagged port is marked as U and ports not participating in a VLAN
are marked as “–“.
Elapsed Time This field shows how long it has been since a normal VLAN was registered or a static
VLAN was set up.
Status This field shows how this VLAN was added to the switch; dynamic - using GVRP,
static - added as a permanent entry or it shows other - added using Multicast VLAN
Registration (MVR).
