P-661H/HW Series User’s Guide
Chapter 2 Introducing the Web Configurator 55

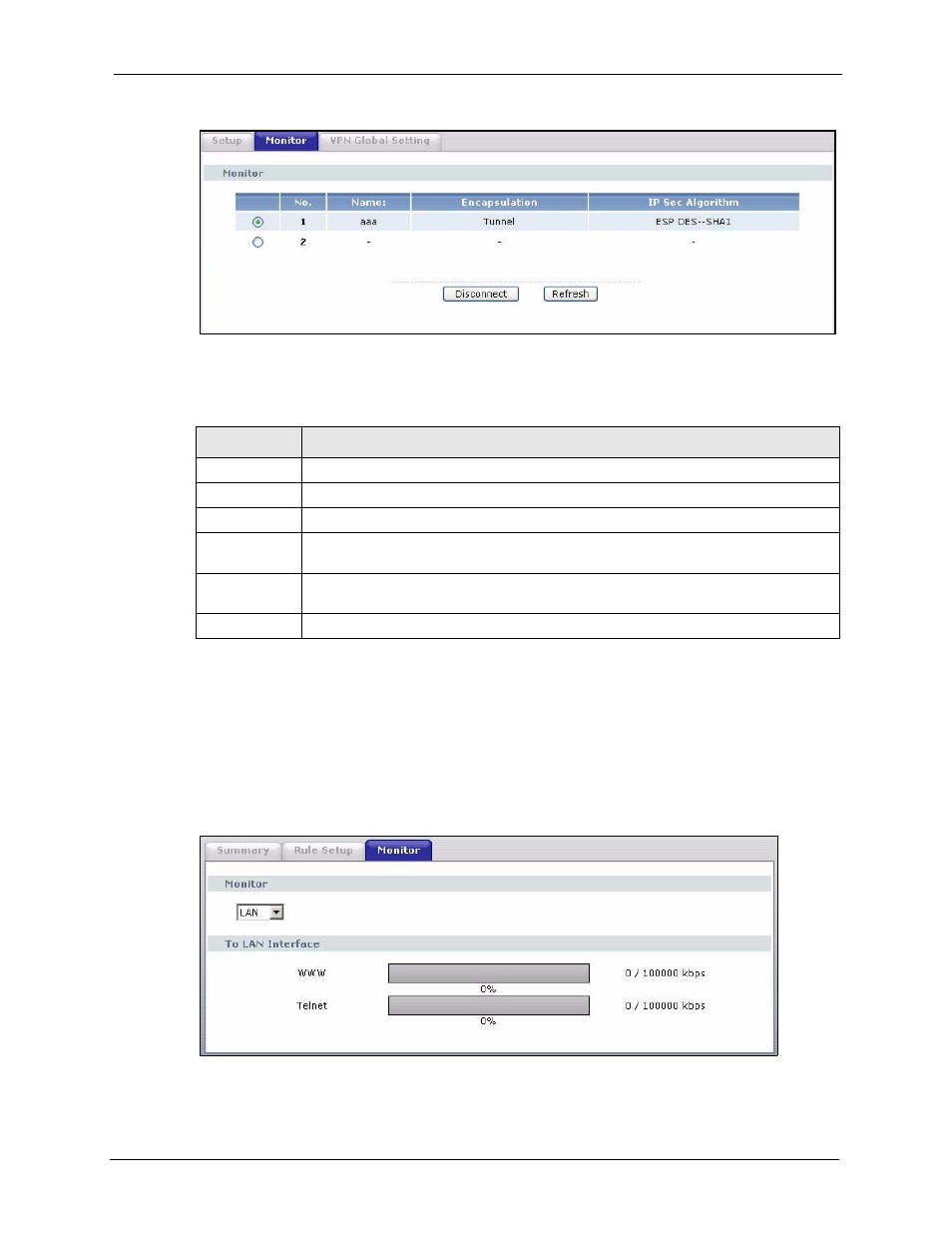

Figure 13 Status: VPN Status
The following table describes the labels in this screen.
2.4.6 Status: Bandwidth Status
Select the Bandwidth Status hyperlink in the Status screen. View the bandwidth usage of the
configured bandwidth rules. This is also shown as bandwidth usage over the bandwidth budget
for each rule. The gray section of the bar represents the percentage of unused bandwidth and
the orange color represents the percentage of bandwidth in use.
Figure 14 Status: Bandwidth Status
Table 7 Status: VPN Status
LABEL DESCRIPTION
No This is the security association index number.
Name This field displays the identification name for this VPN policy.
Encapsulation This field displays Tunnel or Transport mode.
IPSec
Algorithm
This field displays the security protocol, encryption algorithm, and authentication
algorithm used in each SA.
Disconnect Select one of the security associations, and then click Disconnect to stop that
security association.
Refresh Click Refresh to display the current active VPN connection(s).
