P-661H/HW Series User’s Guide
268
Chapter 18 Universal Plug-and-Play (UPnP)
5 In the Networking Services window, select the Universal Plug and Play check box.

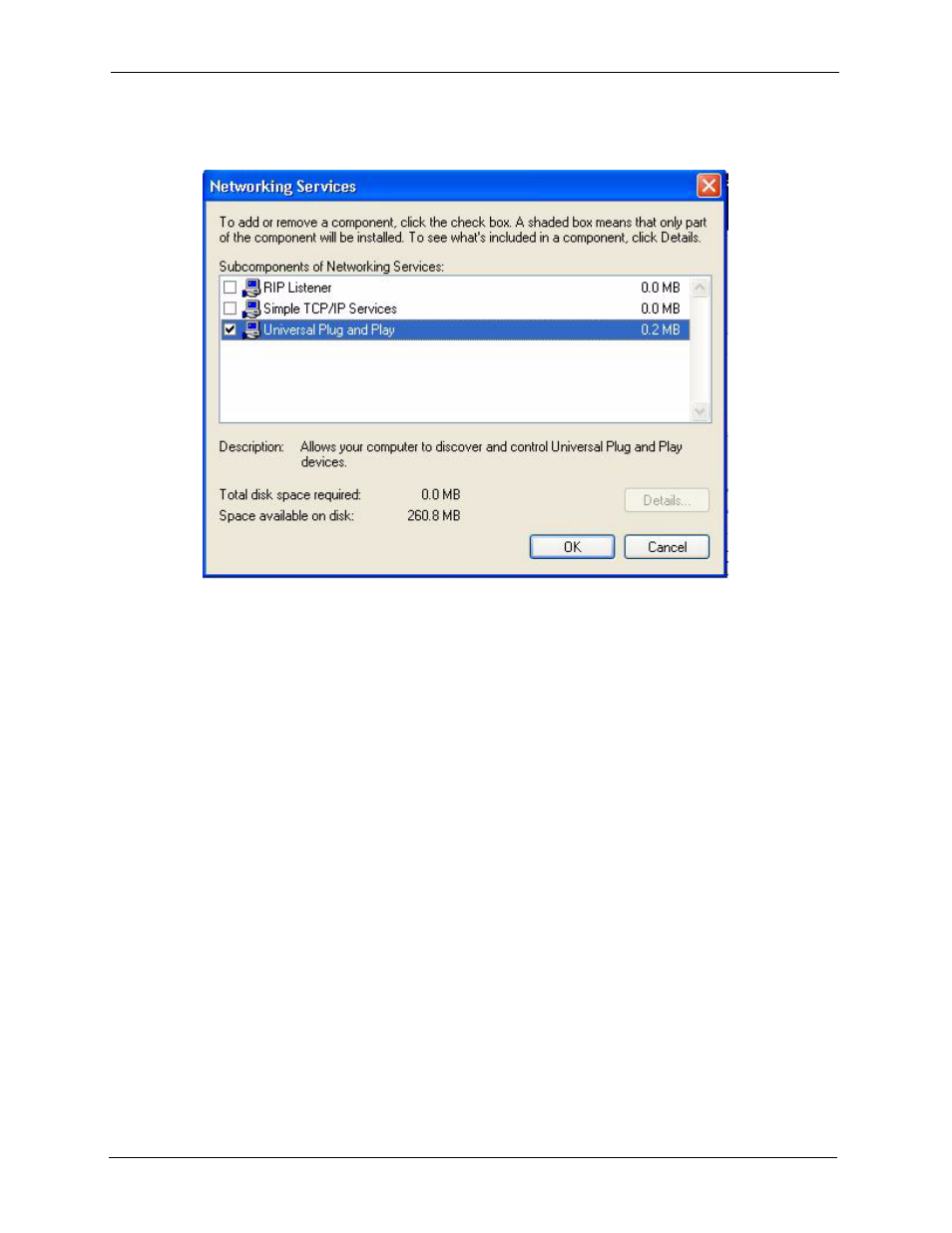

Figure 155 Networking Services
6 Click OK to go back to the Windows Optional Networking Component Wizard
window and click Next.
18.4 Using UPnP in Windows XP Example
This section shows you how to use the UPnP feature in Windows XP. You must already have
UPnP installed in Windows XP and UPnP activated on the ZyXEL Device.
Make sure the computer is connected to a LAN port of the ZyXEL Device. Turn on your
computer and the ZyXEL Device.
Auto-discover Your UPnP-enabled Network Device
1 Click Start and Control Panel. Double-click Network Connections. An icon displays
under Internet Gateway.
2 Right-click the icon and select Properties.
