P-661H/HW Series User’s Guide
206 Chapter 13 VPN Screens

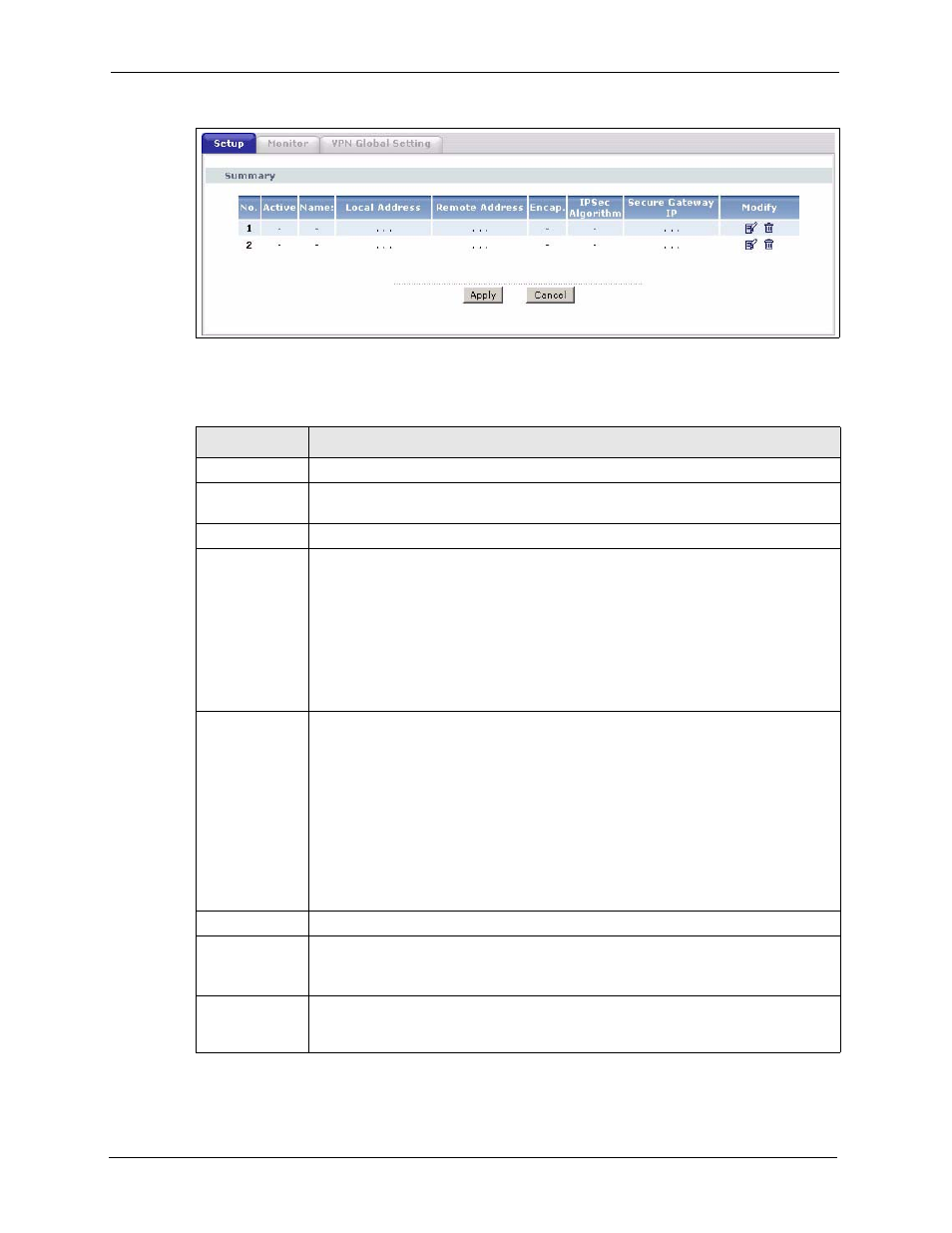

Figure 121 VPN Setup
The following table describes the fields in this screen.
Table 78 VPN Setup
LABEL DESCRIPTION
No. This is the VPN policy index number. Click a number to edit VPN policies.
Active This field displays whether the VPN policy is active or not. A Yes signifies that this
VPN policy is active. No signifies that this VPN policy is not active.
Name This field displays the identification name for this VPN policy.
Local Address This is the IP address(es) of computer(s) on your local network behind your ZyXEL
Device.
The same (static) IP address is displayed twice when the Local Address Type field
in the VPN-IKE (or VPN-Manual Key) screen is configured to Single.
The beginning and ending (static) IP addresses, in a range of computers are
displayed when the Local Address Type field in the VPN-IKE (or VPN-Manual Key)
screen is configured to Range.
A (static) IP address and a subnet mask are displayed when the Local Address
Type field in the VPN-IKE (or VPN-Manual Key) screen is configured to Subnet.
Remote
Address
This is the IP address(es) of computer(s) on the remote network behind the remote
IPSec router.
This field displays N/A when the Secure Gateway Address field displays 0.0.0.0. In
this case only the remote IPSec router can initiate the VPN.
The same (static) IP address is displayed twice when the Remote Address Type
field in the VPN-IKE (or VPN-Manual Key) screen is configured to Single.
The beginning and ending (static) IP addresses, in a range of computers are
displayed when the Remote Address Type field in the VPN-IKE (or VPN-Manual
Key) screen is configured to Range.
A (static) IP address and a subnet mask are displayed when the Remote Address
Type field in the VPN-IKE (or VPN-Manual Key) screen is configured to Subnet.
Encap. This field displays Tunnel or Transport mode (Tunnel is the default selection).
IPSec Algorithm This field displays the security protocols used for an SA.
Both AH and ESP increase ZyXEL Device processing requirements and
communications latency (delay).
Secure Gateway
IP
This is the static WAN IP address or URL of the remote IPSec router. This field
displays 0.0.0.0 when you configure the Secure Gateway Address field in the VPN-
IKE screen to 0.0.0.0.
