3 The RADIUS server distributes a Pairwise Master Key (PMK) key to the AP that then
sets up a key hierarchy and management system, using the pair-wise key to dynamically
generate unique data encryption keys to encrypt every data packet that is wirelessly
communicated between the AP and the wireless clients.

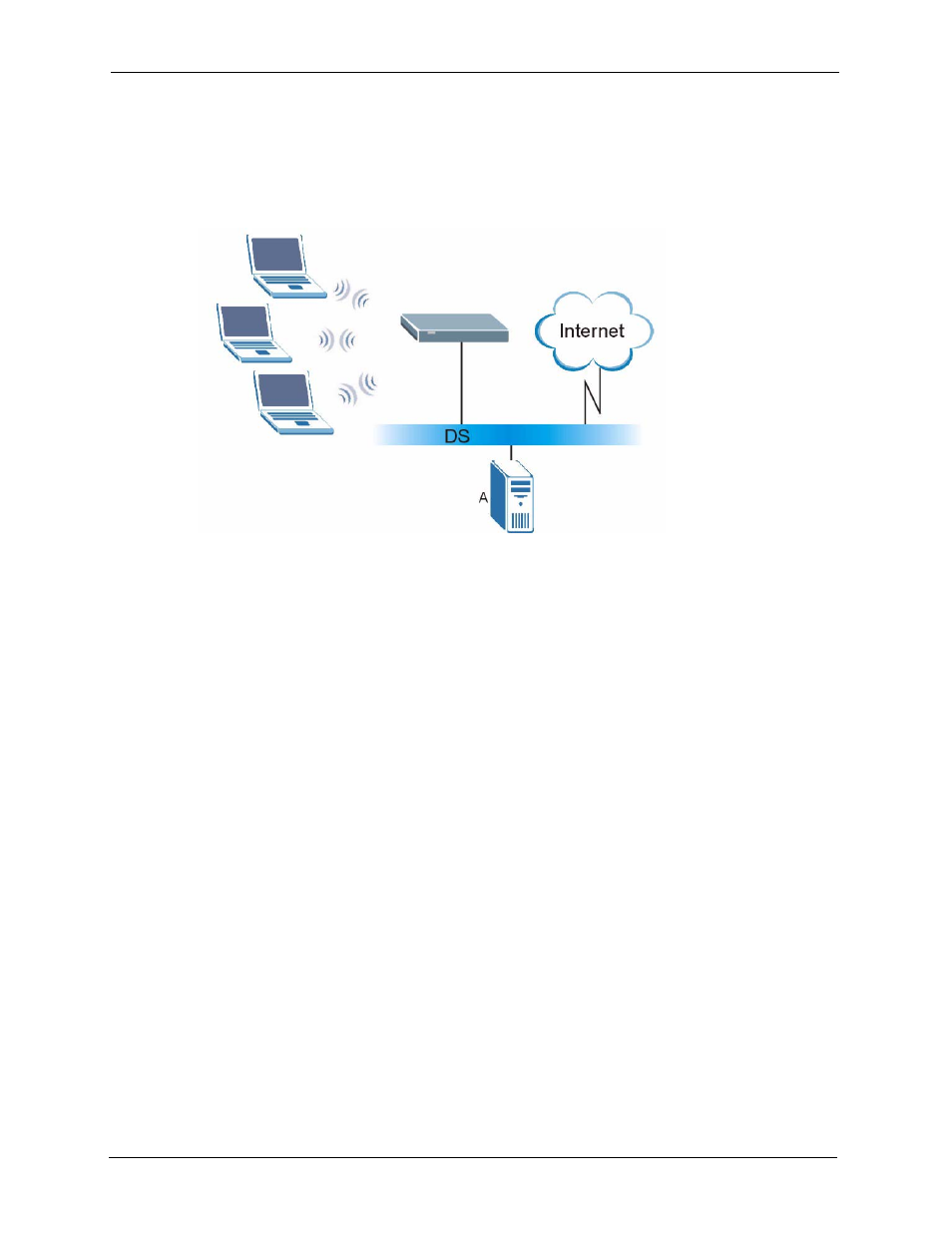

Figure 210 WPA(2) with RADIUS Application Example
WPA(2)-PSK Application Example
A WPA(2)-PSK application looks as follows.
1 First enter identical passwords into the AP and all wireless clients. The Pre-Shared Key
(PSK) must consist of between 8 and 63 ASCII characters or 64 hexadecimal characters
(including spaces and symbols).
2 The AP checks each wireless client's password and (only) allows it to join the network if
the password matches.
3 The AP and wireless clients use the pre-shared key to generate a common PMK (Pairwise
Master Key).
4 The AP and wireless clients use the TKIP or AES encryption process to encrypt data
exchanged between them.
