P-661H/HW Series User’s Guide
48 Chapter 2 Introducing the Web Configurator

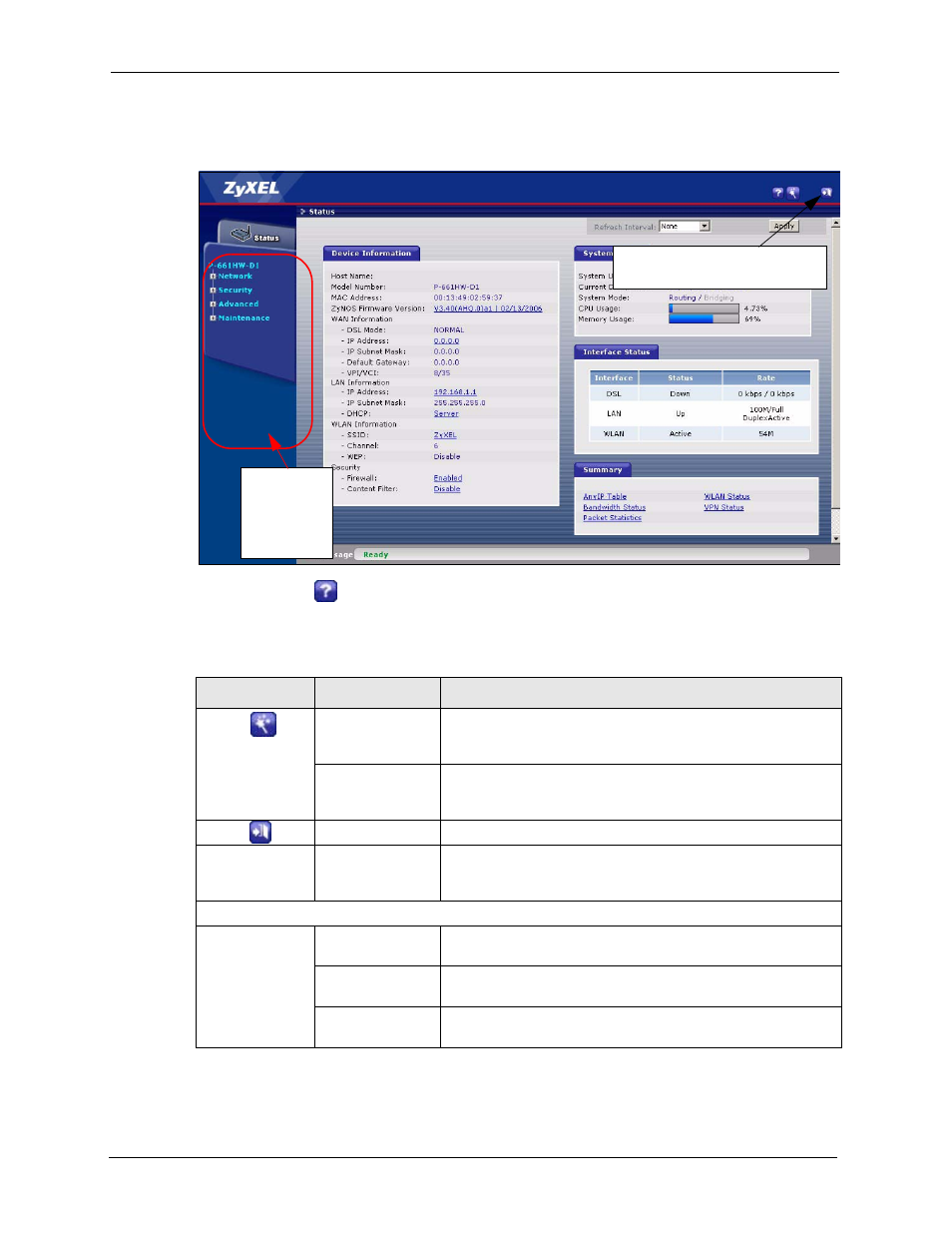

Figure 9 Web Configurator: Main Screen
Note: Click the icon (located in the top right corner of most screens) to view
embedded help.
Table 3 Web Configurator Screens Summary
LINK/ICON SUB-LINK FUNCTION
Wizard INTERNET
SETUP
Use these screens for initial configuration including general
setup, ISP parameters for Internet Access and WAN IP/DNS
Server/MAC address assignment.
BANDWIDTH
MANAGEMENT
SETUP
Use these screens to limit bandwidth usage by application or
packet size.
Logout Click this icon to exit the web configurator.
Status Use this screen to look at the ZyXEL Device’s general device,
system and interface status information. You can also access
the summary statistics tables.
Network
WAN Internet
Connection
Use this screen to configure ISP parameters, WAN IP address
assignment, and more advanced properties.
More Connections Use this screen to configure and place calls to a remote
gateway.
WAN Backup
Setup
Use this screen to configure your traffic redirect properties and
WAN backup settings.
Use
submenus
to configure
ZyXEL
Device
Click the Logout icon at any time
to exit the web configurator.
