GS-3012F User’s Guide
7-8 VLAN
Table 7-4 802.1Q Static VLAN
LABEL DESCRIPTION
Cancel Click Cancel to reset the fields to your previous configuration.
Clear Click Clear to clear the fields to the factory defaults.
7.2.3 Viewing and Editing VLAN Settings
To view a summary of the VLAN configuration, scroll down to the summary table at the bottom of the Static
VLAN screen.
To change the settings of a rule, click a number in the VID field.

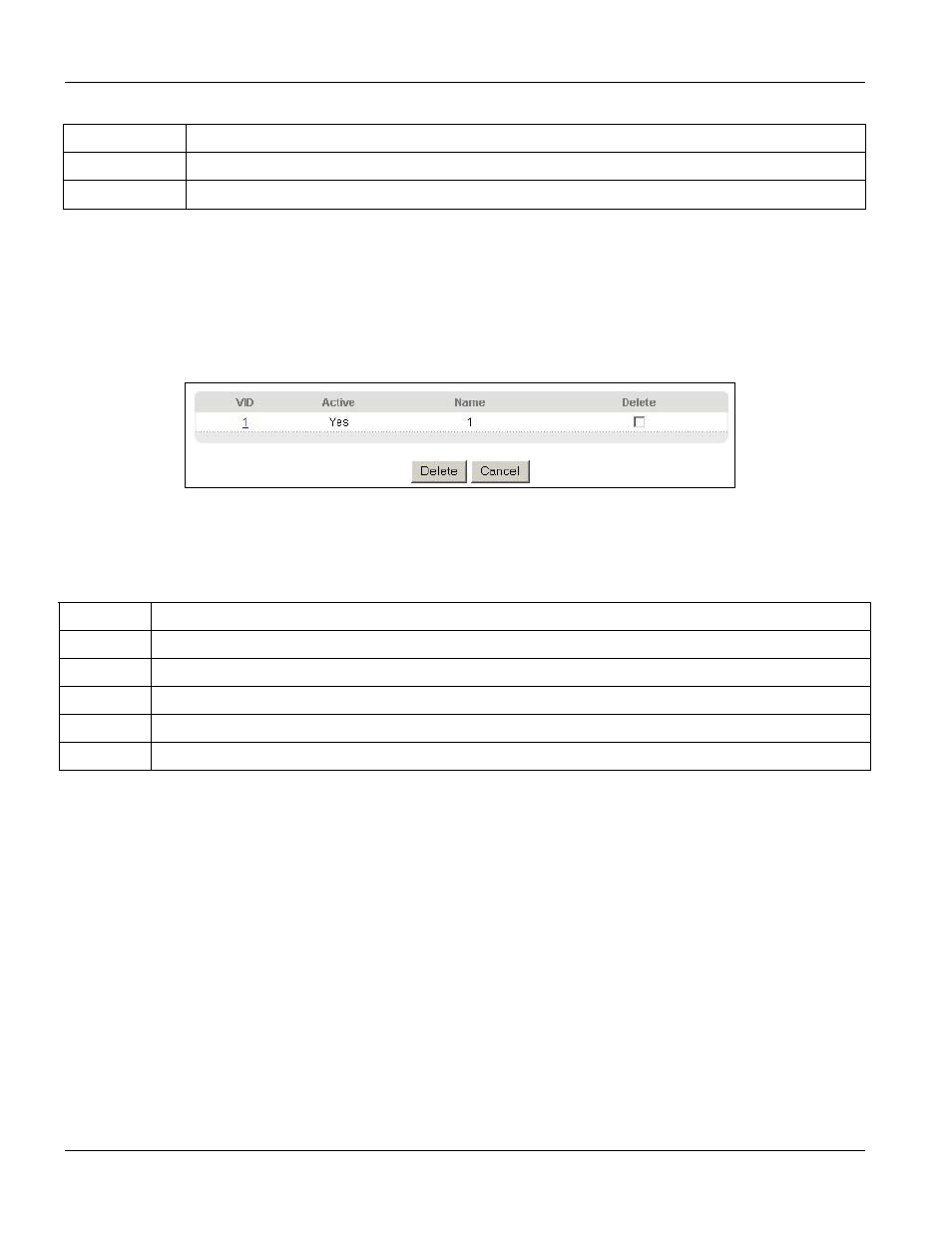

Figure 7-6 Static VLAN: Summary Table
The following table describes the labels in this screen.
Table 7-5 Static VLAN: Summary Table
LABEL DESCRIPTION
VID This field displays the ID number of the VLAN group. Click the number to edit the VLAN settings.
Active This field indicates whether the VLAN settings are enabled (Yes) or disabled (No).
Name This field displays the descriptive name for this VLAN group.
Delete Check the rule(s) that you want to remove in the Delete column, then click the Delete button.
Cancel Click Cancel to clear the Delete check boxes.
