GS-3012F User’s Guide
7-4 VLAN

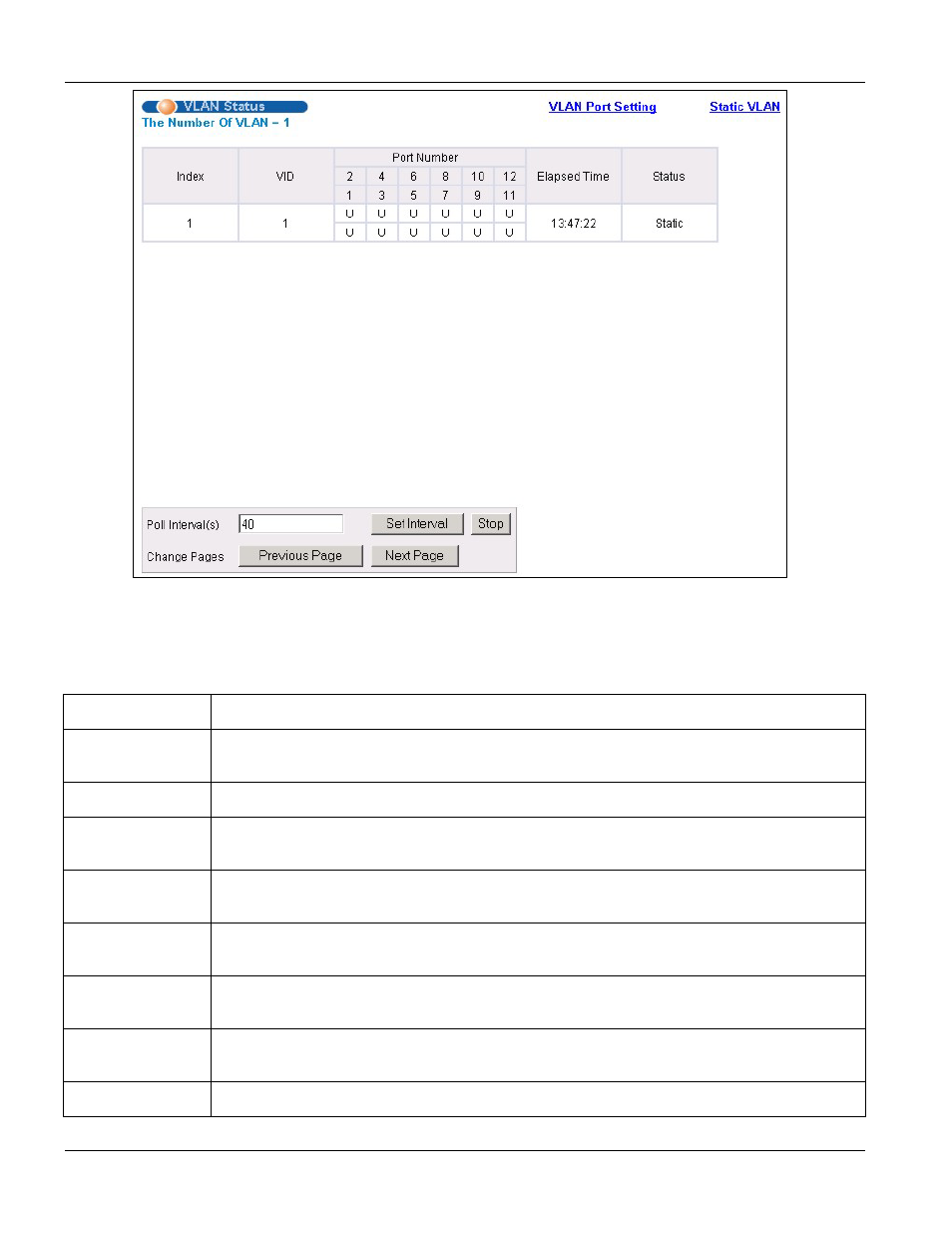

Figure 7-3 802.1Q VLAN Status
The following table describes the labels in this screen.
Table 7-2 802.1Q VLAN Status
LABEL DESCRIPTION
The Number of
VLAN This is the number of VLANs configured on the switch.
Index This is the VLAN index number.
VID VID is the PVID, the Port VLAN ID assigned to untagged frames or priority-tagged frames
received on this port that you configure in the VLAN Port Setting screen.
Port Number This column displays the ports that are participating in a VLAN. A tagged port is marked as T,
an untagged port is marked as U and ports not participating in a VLAN in marked as “–“.
Elapsed Time This field shows how long it has been since a normal VLAN was registered or a static VLAN
was set up.
Status This field shows how this VLAN was added to the switch; dynamically using GVRP or
statically, that is, added as a permanent entry.
Poll Interval(s) The text box displays how often (in seconds) this screen refreshes. You may change the
refresh interval by typing a new number in the text box and then clicking Set Interval.
Stop Click Stop to halt polling statistics.
