GS-3012F User’s Guide

14-2

Link Aggregation

[(0000,00-00-00-00-00-00,0000,00,0000)] [(0000,00-00-00-00-00-00,0000,00,0000)]

Local switch

0000 00-00-00-00-00

0000

00

0000

System priority

Local switch MAC address

Key

Port Priority

1

Port

Number

1

Peer switch

0000 00-00-00-00-00

0000

00

0000

System priority

MAC address

Key

Port Priority

1

Port

Number

1

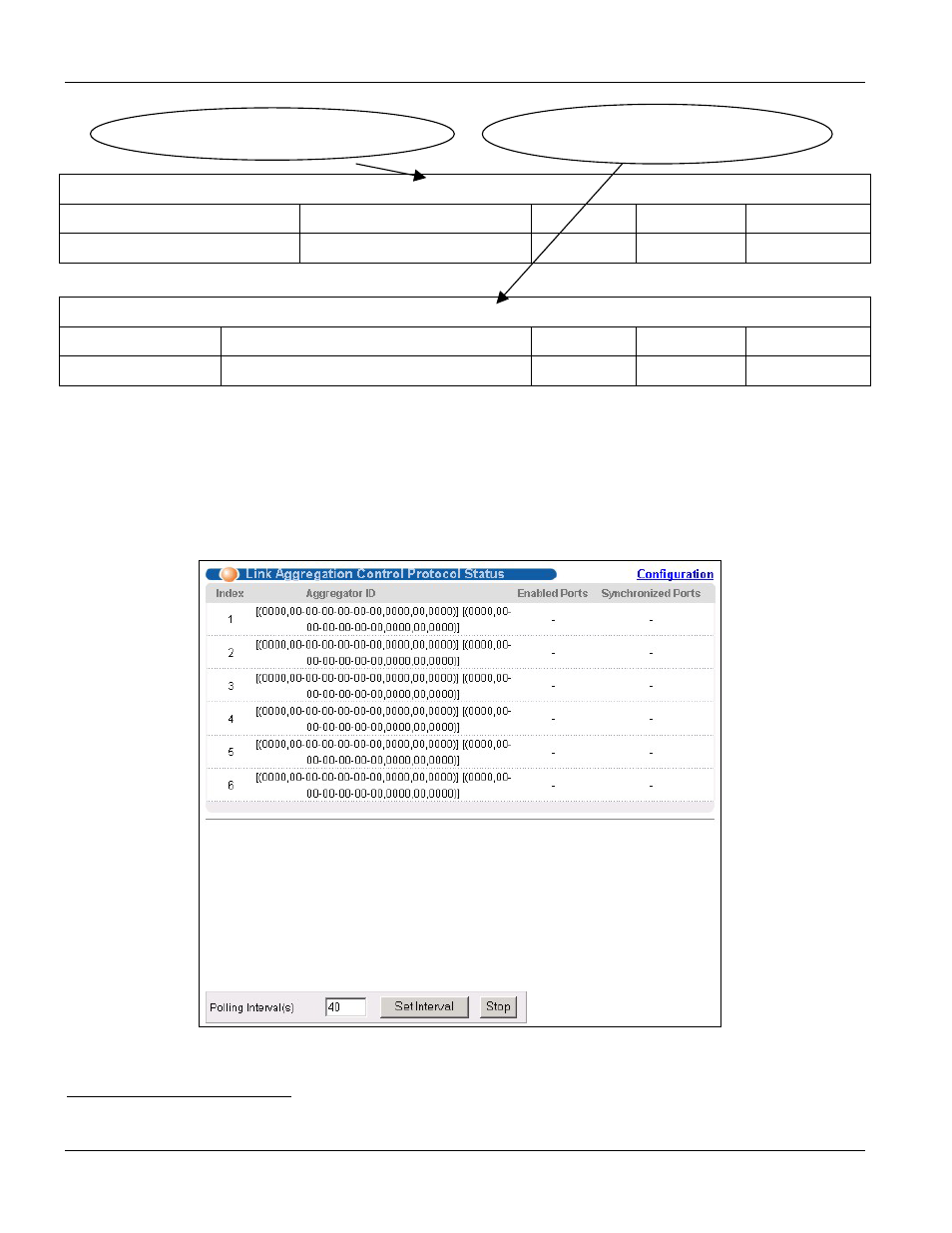

Figure 14-1 Aggregation ID

14.2 Link Aggregation Protocol Status

Click Advanced Application, Link Aggregation in the navigation panel to display the Link Aggregation
Protocol Status screen.

Figure 14-2 Link Aggregation: Link Aggregation Protocol Status

1

This is “0” as it is the aggregator ID for the link aggregation group, not the individual port.
