25.2 Cluster Management Status
Click Management in the navigation panel and then Cluster Management to display the following screen.

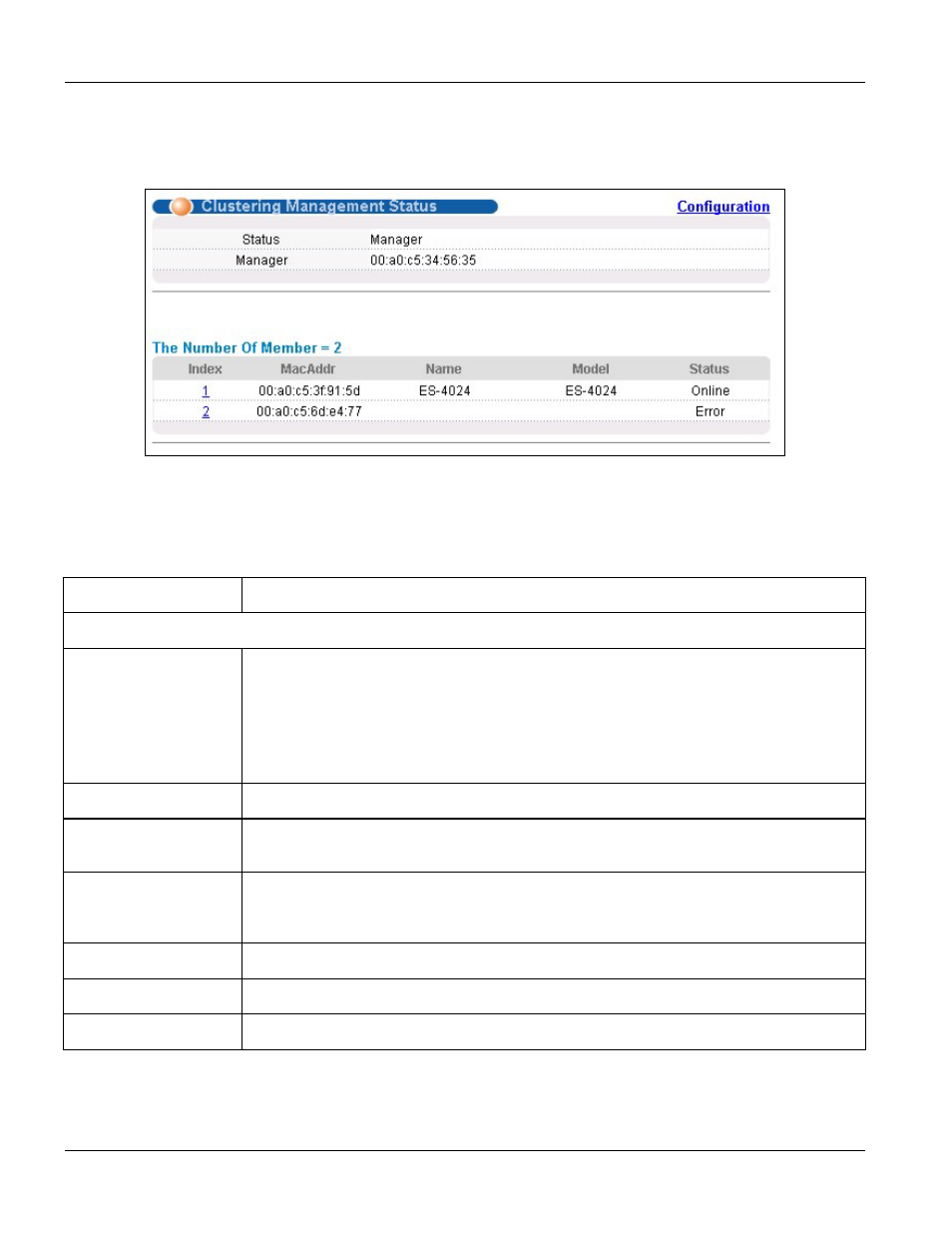

Figure 25-2 Cluster Management Status
The following table describes the labels in this screen.
Table 25-2 Cluster Management Status
LABEL DESCRIPTION
A cluster can only have one manager.
Status This field displays the role of this switch within the cluster.
o Manager
o Member (you see this if you access this screen in the cluster member switch directly
and not via the cluster manager)
o None (neither a manager nor a member of a cluster)
Manager This field displays the cluster manager switch’s hardware MAC Address.
The Number of Member This field displays the number of switches that make up this cluster. The following fields
describe the cluster member switches.
Index You can manage cluster member switches via the cluster manager switch. Each number
in the Index column is a hyperlink leading to the cluster member switch’s web
configurator (see Figure 25-3).
MacAddr This is the cluster member switch’s hardware MAC Address.
Name This is the cluster member switch’s System Name.
Model This field displays the model name.
