GS-3012F User’s Guide
VLAN 7-3
7.1.3 Port VLAN Trunking
Enable VLAN Trunking on a port to allow frames belonging to unknown VLAN groups to pass through that
port. This is useful if you want to set up VLAN groups on end devices without having to configure the same
VLAN groups on intermediary devices.
Refer to the following figure. Suppose you want to create VLAN groups 1 and 2 (V1 and V2) on devices A and B.
Without VLAN Trunking, you must configure VLAN groups 1 and 2 on all intermediary switches C, D and E;
otherwise they will drop frames with unknown VLAN group tags. However, with VLAN Trunking enabled on a
port(s) in each intermediary switch you only need to create VLAN groups in the end devices (A and B). C, D and
E automatically allow frames with VLAN group tags 1 and 2 (VLAN groups that are unknown to those switches)
to pass through their VLAN trunking port(s).

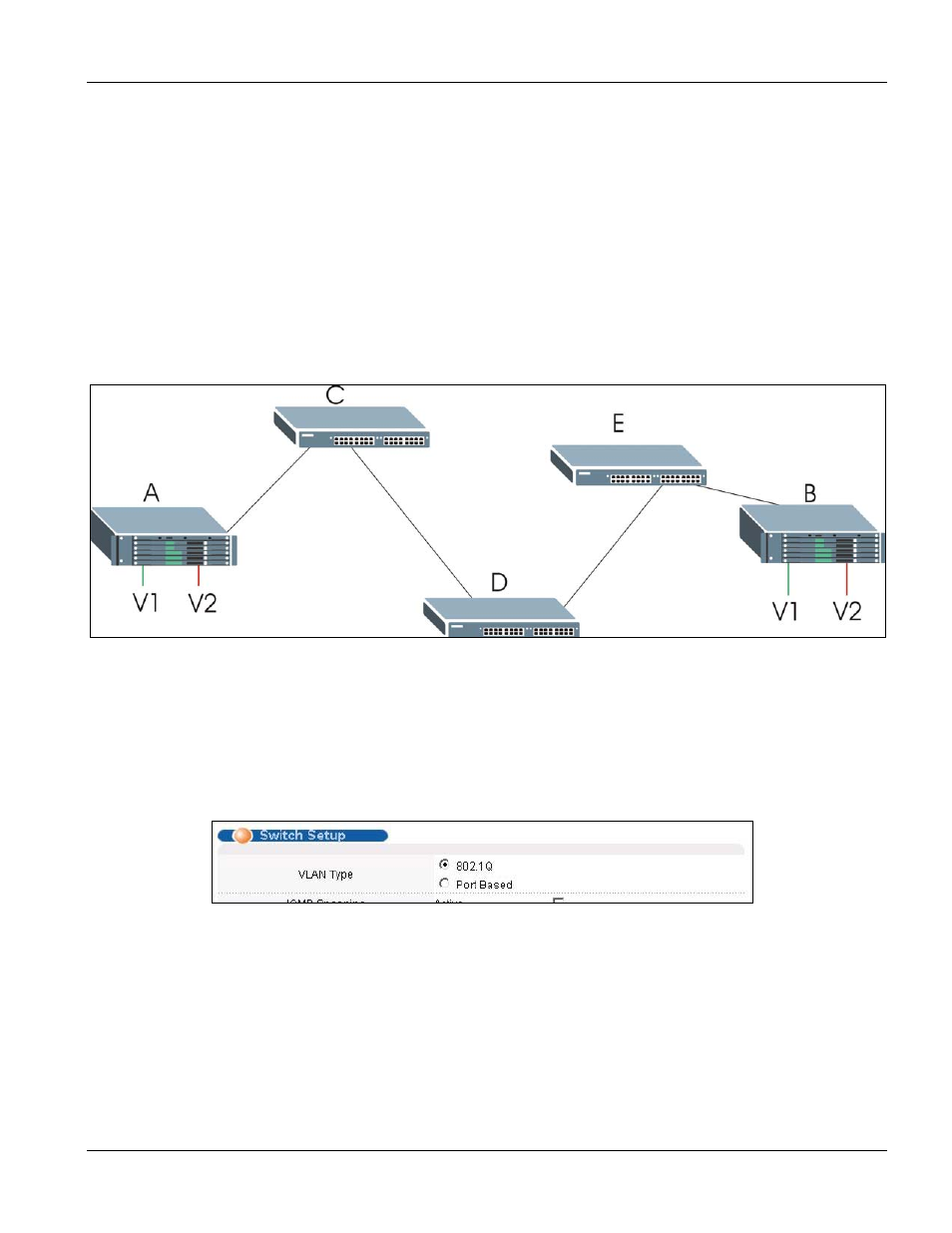

Figure 7-1 Port VLAN Trunking
7.2 802.1Q VLAN
Follow the steps below to set the 802.1Q VLAN Type on the switch.
1. Select 802.1Q as the VLAN Type in the Switch Setup screen (under Basic Setting) and click Apply.
Figure 7-2 Selecting a VLAN Type
2. Click VLAN under Advanced Application to display the VLAN Status screen as shown next.
