GS-3012F User’s Guide
1-6 Getting to Know the GS-3012F

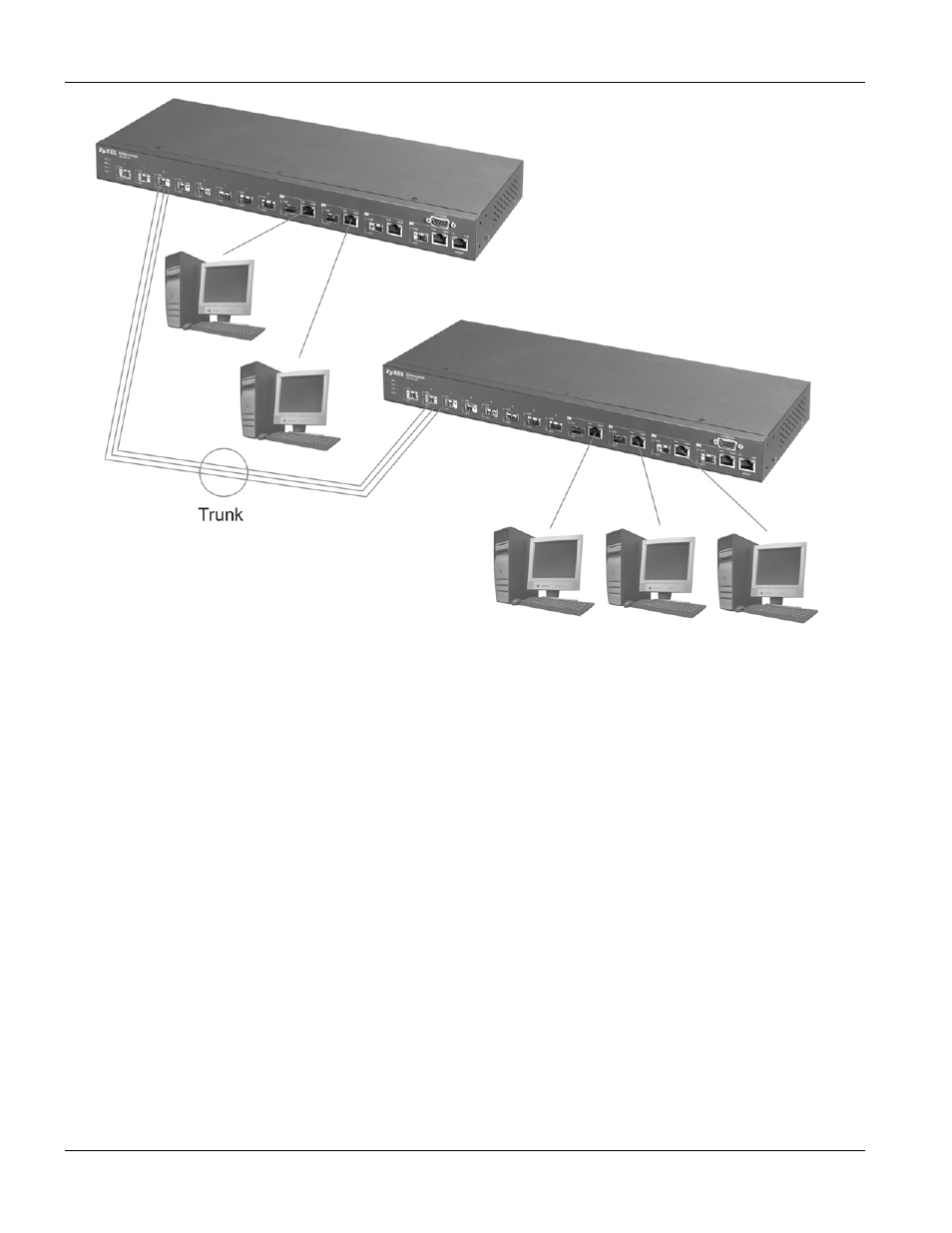

Figure 1-3 High Performance Switched Workgroup Application
1.3.4 IEEE 802.1Q VLAN Application Examples
This section shows a workgroup and a shared server example using 802.1Q tagged VLANs. For more information
on VLANs, see the Switch Setup section and the VLAN Setup chapter in this User’s Guide. A VLAN (Virtual Local
Area Network) allows a physical network to be partitioned into multiple logical networks. Stations on a logical
network belong to one group. A station can belong to more than one group. With VLAN, a station cannot directly
talk to or hear from stations that are not in the same group(s) unless such traffic first goes through a router.
Tag-based VLAN Workgroup Example
Ports in the same VLAN group share the same broadcast domain thus increase network performance through
reduced broadcast traffic. VLAN groups can be modified at any time by adding, moving or changing ports without
any re-cabling.
