MULTICHANNEL BUFFERED SERIAL PORT TIMING (CONTINUED)
timing requirements for FSR when GSYNC = 1 (see Figure 41)
NO.
’C6202-200
’C6202-233
’C6202-250
UNIT
MIN MAX
1 tsu(FRH-CKSH) Setup time, FSR high before CLKS high 4 ns
2 th(CKSH-FRH) Hold time, FSR high after CLKS high 4 ns
2
1
CLKS
FSR external
CLKR/X (no need to resync)
CLKR/X(needs resync)

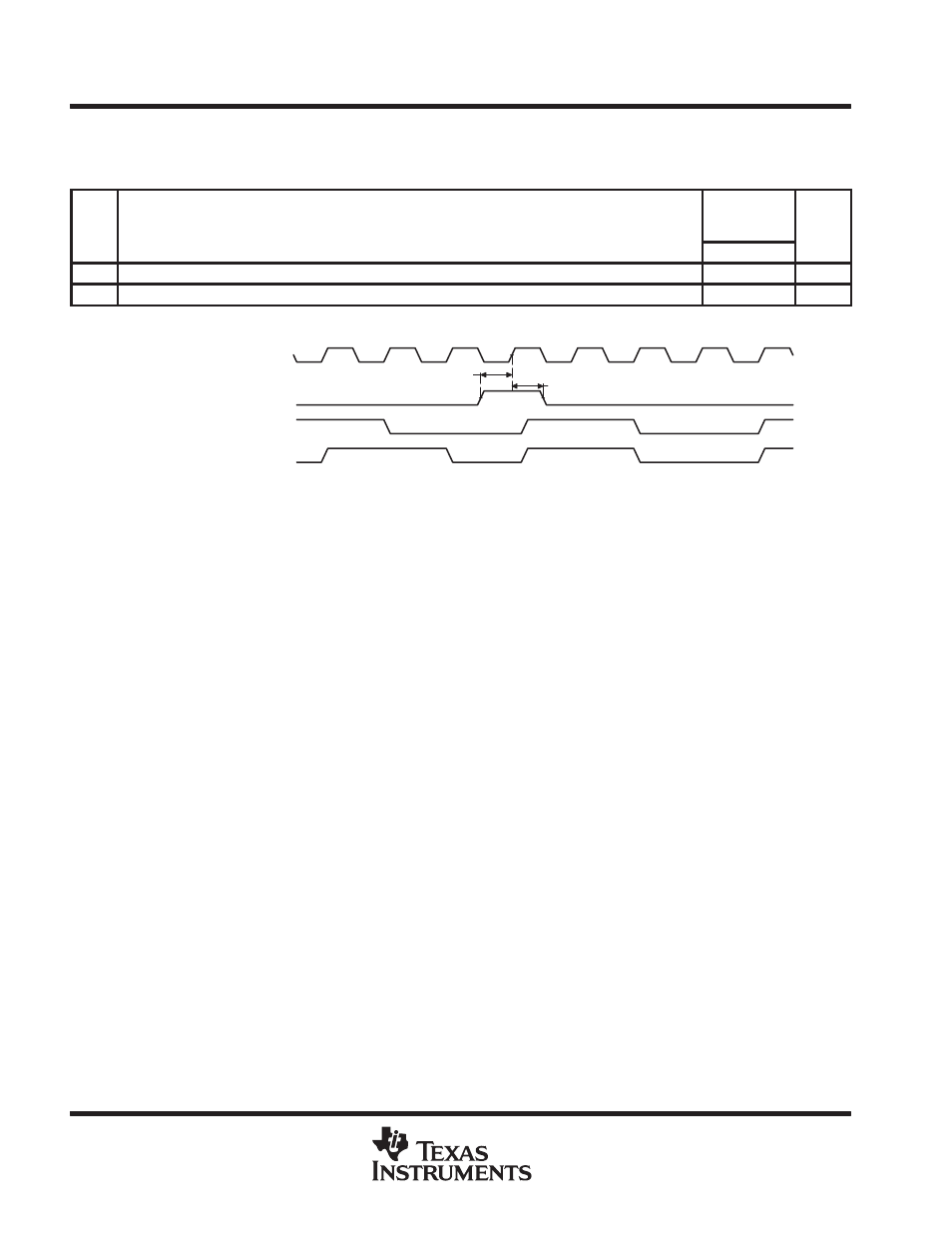

Figure 41. FSR Timing When GSYNC = 1
