TMS320C6202
FIXED-POINT DIGITAL SIGNAL PROCESSOR
SPRS072B – AUGUST 1998 – REVISED AUGUST 1999
29
POST OFFICE BOX 1443
•
HOUSTON, TEXAS 77251–1443

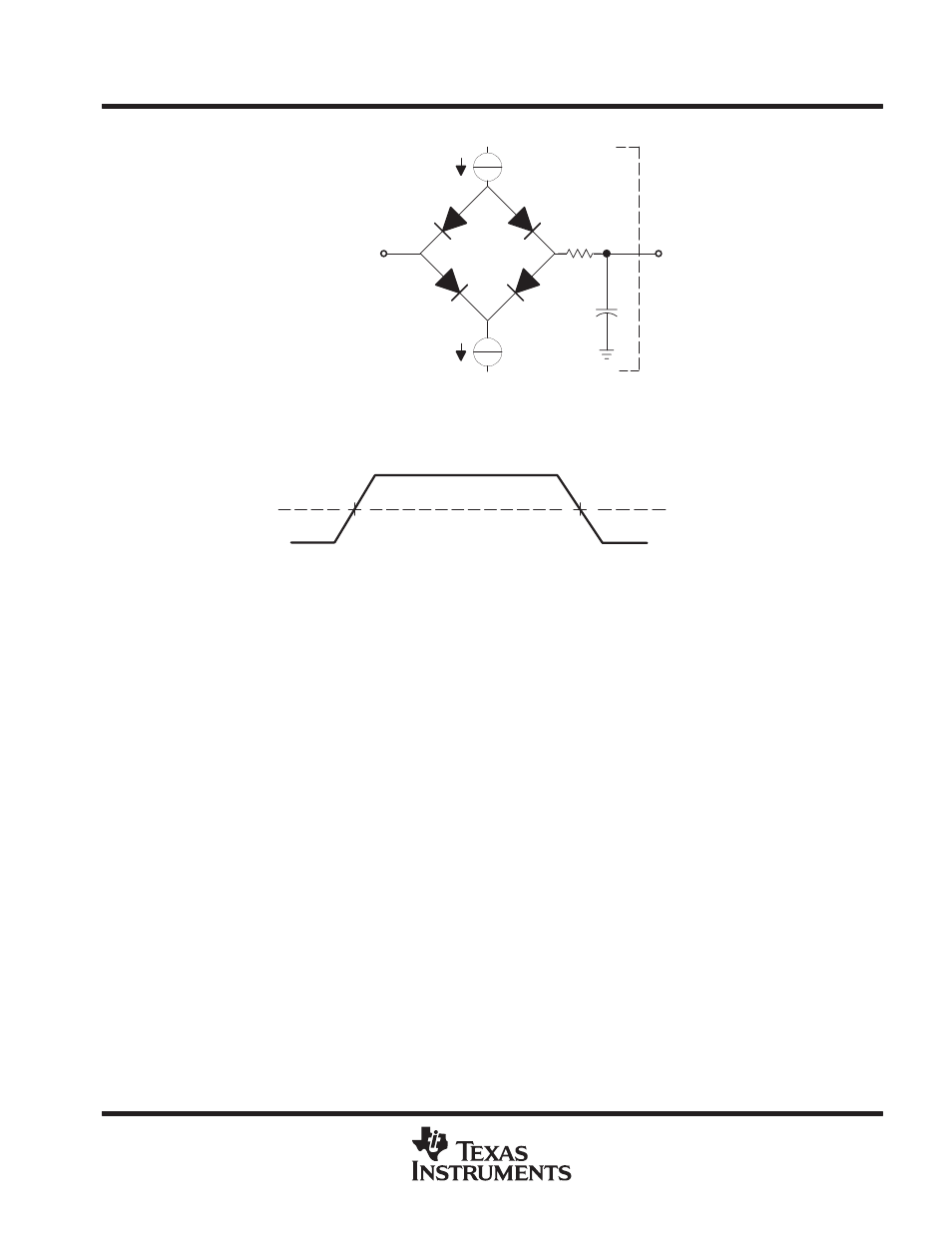

PARAMETER MEASUREMENT INFORMATION
Tester Pin
Electronics
Vref
IOL
CT = 30 pF†
IOH
Output
Under
Test
50
Ω
† Typical distributed load circuit capacitance
signal transition levels
All input and output timing parameters are referenced to 1.5 V for both “0” and “1” logic levels.
Vref = 1.5 V
Figure 7. Input and Output Voltage Reference Levels for ac Timing Measurements
