TMS320C6202
FIXED-POINT DIGITAL SIGNAL PROCESSOR
SPRS072B – AUGUST 1998 – REVISED AUGUST 1999
58
POST OFFICE BOX 1443
•
HOUSTON, TEXAS 77251–1443
XHOLD/XHOLDA TIMING (CONTINUED)
switching characteristics for expansion bus arbitration (internal arbiter disabled) † (see Figure 39)
NO. PARAMETER MIN MAX UNIT
1 td(XHDAH-XBLZ) Delay time, XHOLDA high to XBus low impedance‡ 2P 2P + 10 ns
2 td(XBHZ-XHDL) Delay time, XBus high impedance to XHOLD low‡ 0 2P ns
† P = 1/CPU clock frequency in ns. For example, when running parts at 250 MHz, use P = 4 ns.
‡ XBus consists of XBE[3:0]/XA[5:2], XAS, XW/R, and XBLAST.
C6202
1
2
XHOLD (output)
XHOLDA (input)
XBus†
† XBus consists of XBE[3:0]/XA[5:2], XAS, XW/R, and XBLAST.

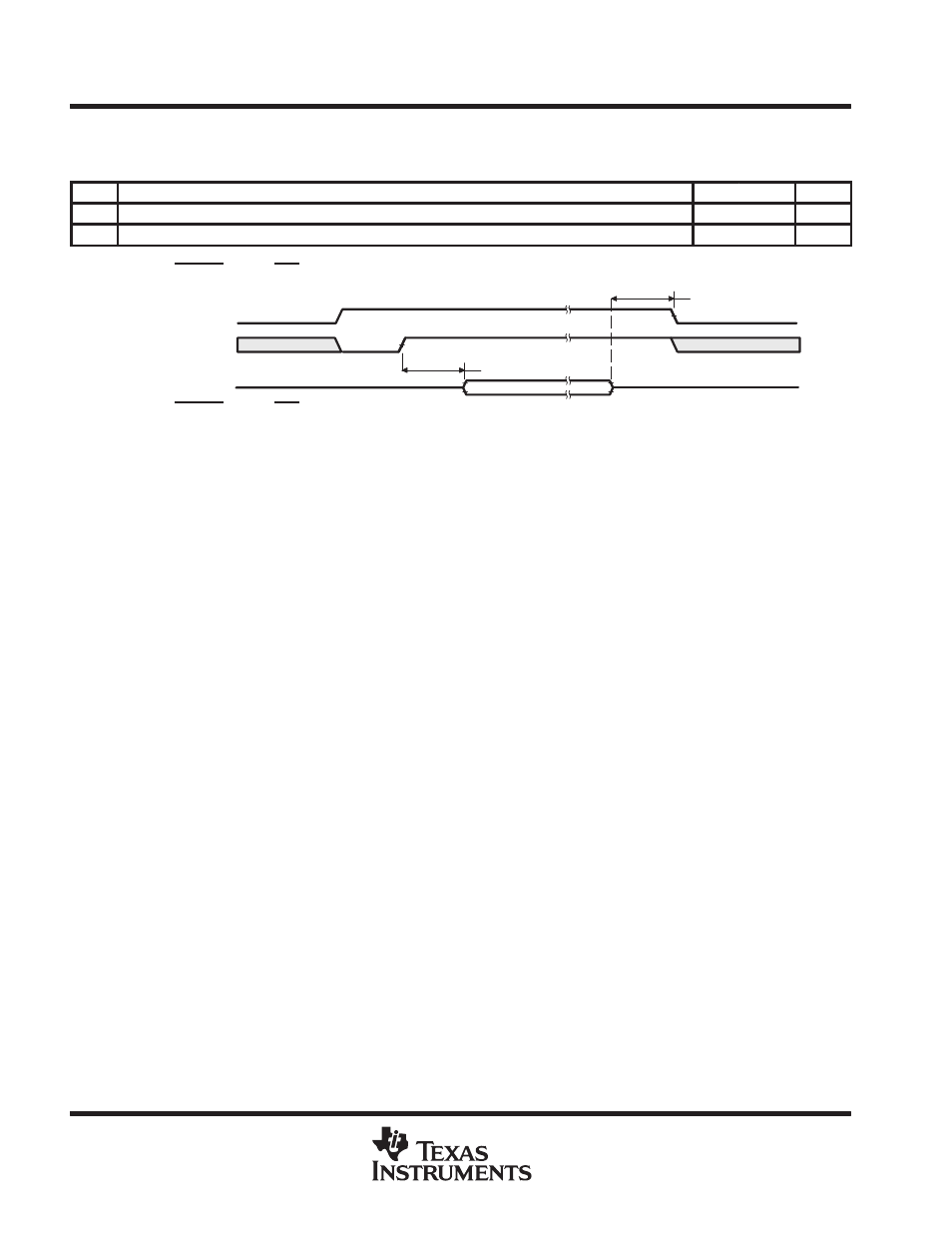

Figure 39. Expansion Bus Arbitration—Internal Arbiter Disabled
