Dimensions
and Weights
PKG-PRC002-EN 90

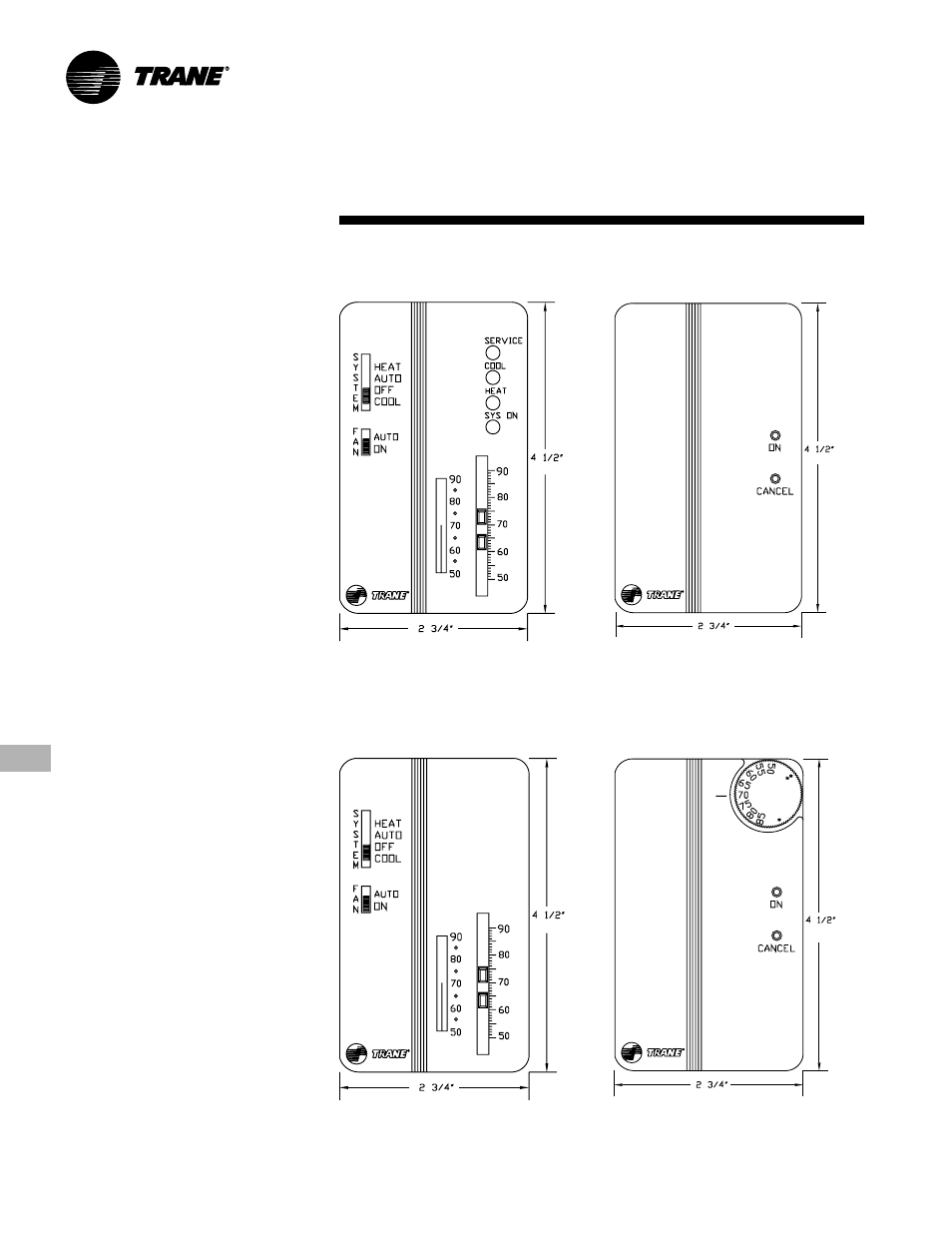

Field-Installed
Zone Sensors
NOTE: Remote sensors are available for use with all zone
sensors to provide remote sensing capabilities.
(70 mm)
(114 mm)
Zone Temperature Sensor W/Timed
Override Buttons
BAYSENS013
(70 mm)
(114 mm)
Dual Setpoint, Manual/Automatic
Changeover Sensor With System Function
Lights
BAYSENS010
(70 mm)
(114 mm)
Zone Temperature Sensor W/Timed
Override Buttons and Local Setpoint
Adjustment
BAYSENS014
(70 mm)
(70 mm)
(114 mm)
Dual Setpoint, Manual/Automatic
Changeover Sensor
BAYSENS008
