Page 29
Performance
Waterside
Data
Pressure Drop
PKG-PRC002-EN
29

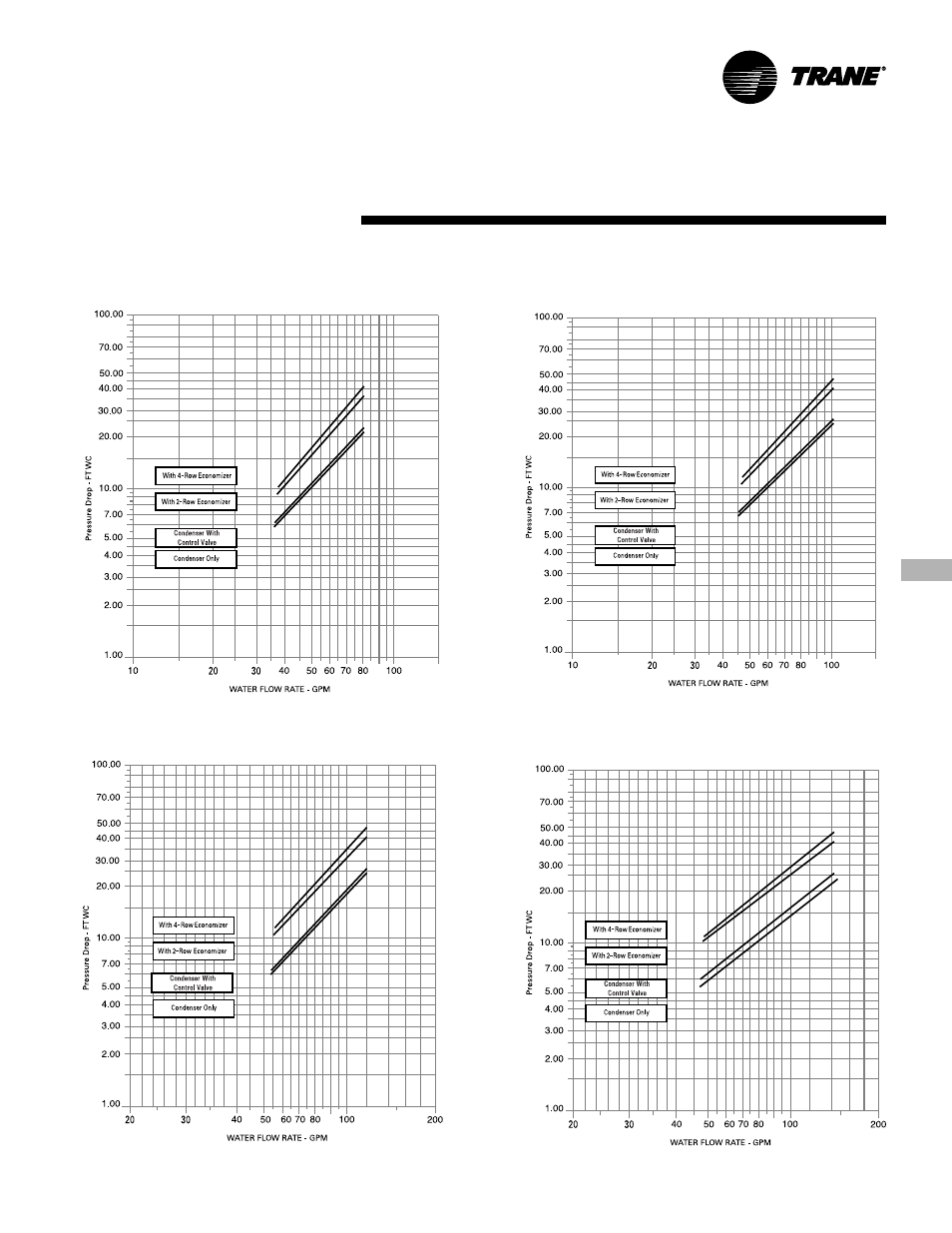

Chart PD-19. Waterside Pressure Drop
SCWF/SIWF 20, 22, 25
Chart PD-20. Waterside Pressure Drop
SCWF/SIWF 29, 32
Chart PD-21. Waterside Pressure Drop
SCWF/SIWF 35, 38
Chart PD-22. Waterside Pressure Drop
SCWF/SIWF 42, 46
Note: Each curve provides total water pressure drop through the entire unit including all accessories and internal valves and piping. Do not add curves together.
