Performance Airside Pressure
Data Drops
PKG-PRC002-EN 25
Note:
“Primary” refers to the side where the static pressure drop was measured. This value
must be added to the unit external static pressure for proper fan horsepower
determination.
Discharge Plenum

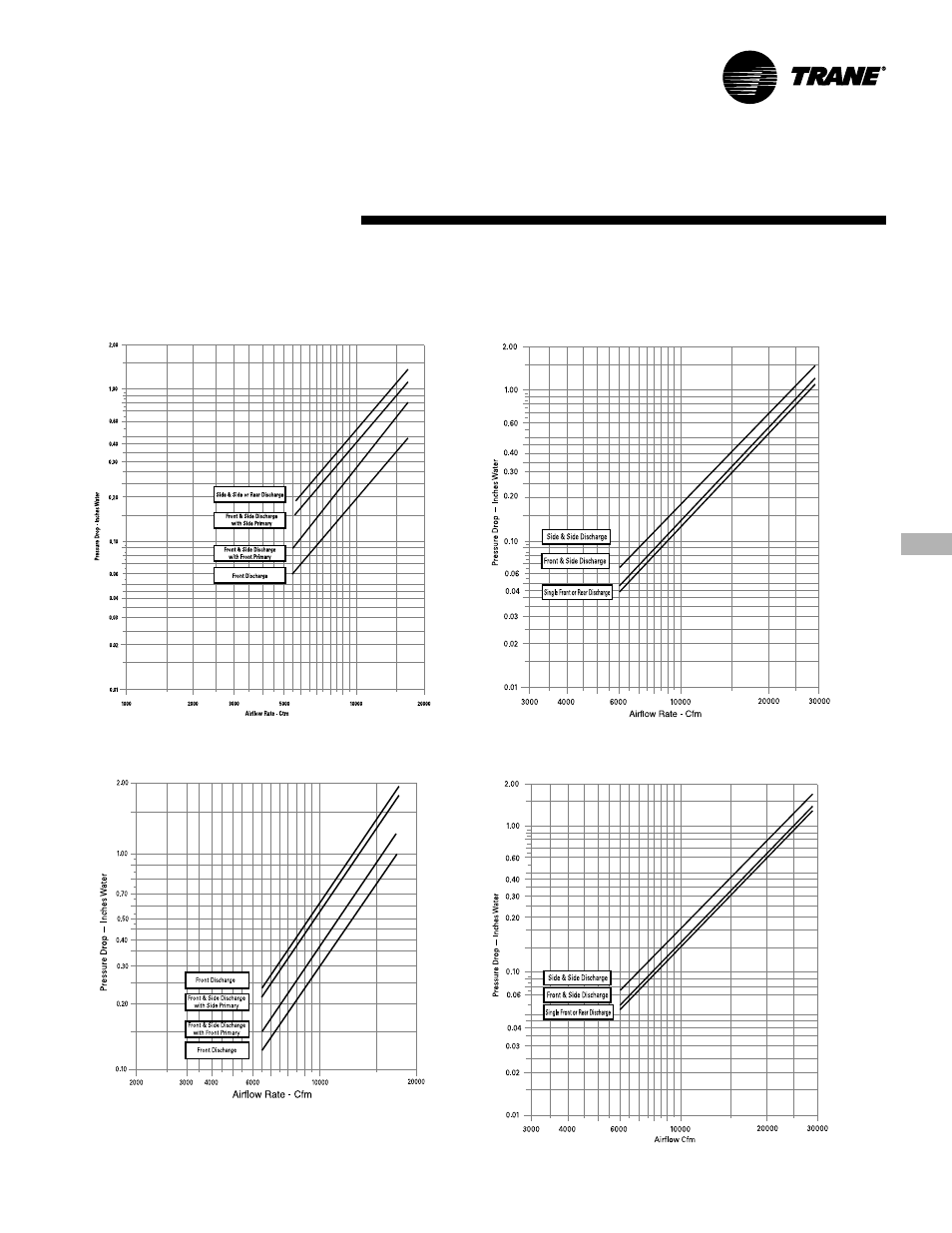

Chart PD-11. Airside Pressure Drop
Standard Height Discharge Plenum
42 to 80 Ton Unit
Chart PD-12. Airside Pressure Drop
Low Height Discharge Plenum
20 to 38 Ton Unit
Chart PD-13. Airside Pressure Drop
Low Height Discharge Plenum
42 to 80 Ton Unit
Chart PD-10. Airside Pressure Drop,
Standard Height Discharge Plenum
20 to 38 Ton Unit
