Dimensions
and Weights
PKG-PRC002-EN 84

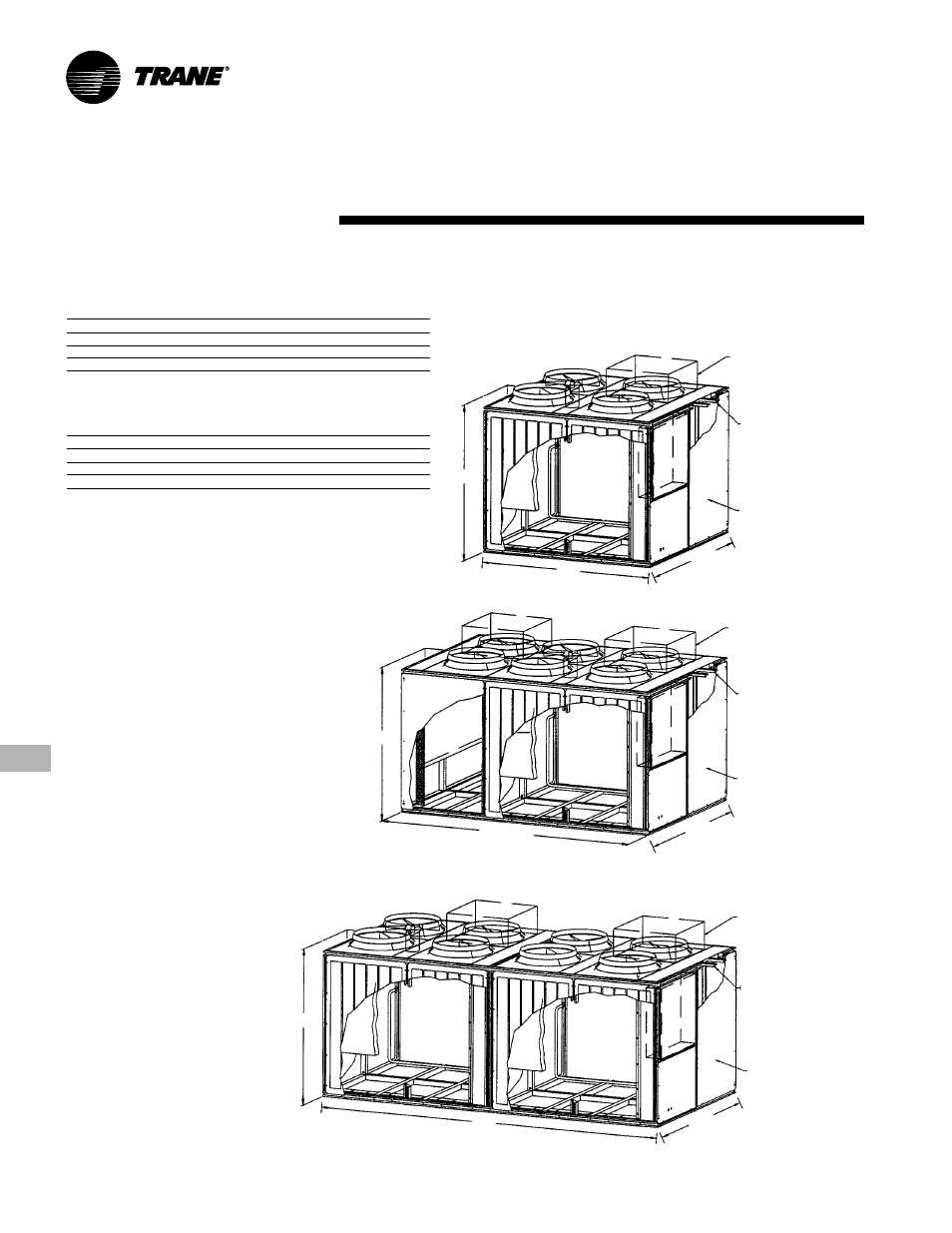

Unit Dimensions - English - (inches)
Unit Tons AA AB AC
CCRC/CIRC 20, 29 70 1 / 8 7' - 4 7' - 4
CCRC/CIRC 35, 40 70 1 / 8 10' - 10 3 / 4 7' - 4
CCRC/CIRC 50, 60 70 1 / 8 14' - 8 7' - 4
Unit Dimensions - Metric (mm)
Unit Tons AA AB AC
CCRC/CIRC 20, 29 1781 2235 2235
CCRC/CIRC 35, 40 1781 3321 2235
CCRC/CIRC 50, 60 1781 4470 2235
Air-Cooled
Condenser
CCRC/CIRC 20 and 29
CCRC/CIRC 35 and 40
CCRC/CIRC 50 and 60
AC
(Optional) Low
Ambient Damper
(One Damper Per Circuit)
Refrigerant Line
Connections
Frontal View
AC
AB
AA
Refrigerant Line
Connections
Frontal View
AC
AB
AA
(Optional) Low
Ambient Damper
(One Damper Per Circuit)
Refrigerant Line
Connections
Frontal View
AB
AA
(Optional) Low
Ambient Damper
(One Damper Per Circuit)
AC
CCRC Unit Dimensions
