Performance Water-Cooled
Data
PKG-PRC002-EN 43
35 Ton
Note:
1. Fan curves include refrigerant coil and internal cabinet
static losses. To determine static pressure to be used
with these curves, add filter, economizer, flexible
horizontal discharge and heat pressure drops to external
duct static pressure.

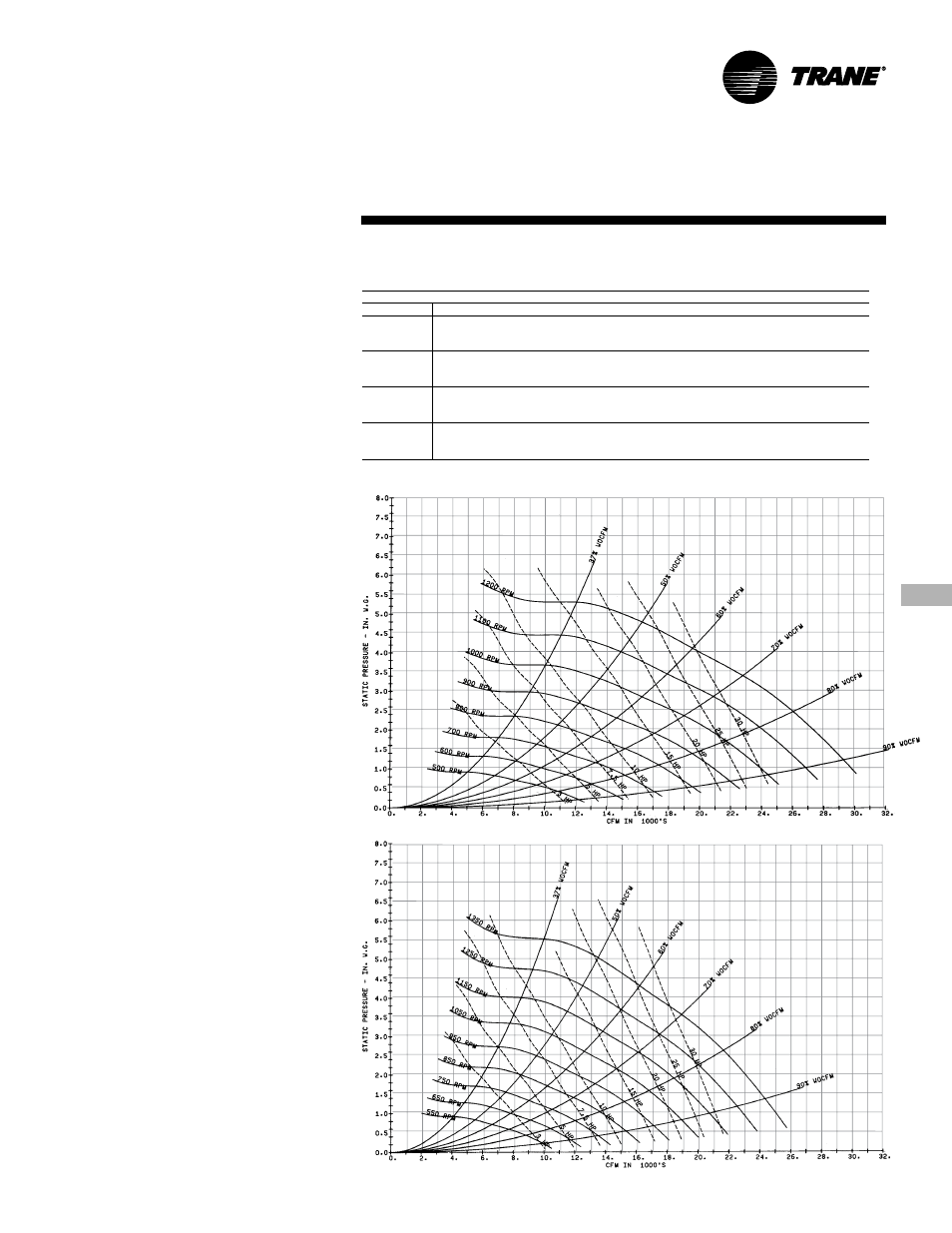

Chart PD-38. SCWF/SIWF 35 Fan Performance with Inlet Guide Vanes
Table PD-19. SCWF/SIWF 35 Gross Cooling Capacity - 14,000 cfm, 105 gpm
Entering Water Temp
Entering Air 75 F 85 F 95 F
EDB EWB Total Sensible Total Sensible Total Sensible
F F MBh MBh LWT MBh MBh LWT MBh MBh LWT
62 401 320 84.1 386 313 94.0 369 306 103.9
75 67 436 254 84.8 420 247 94.7 402 240 104.6
72 474 188 85.5 456 182 95.4 437 175 105.3
62 402 381 84.1 388 373 94.0 373 365 104.0
80 67 436 316 84.8 419 309 94.7 402 302 104.6
72 473 250 85.5 455 243 95.4 436 236 105.3
62 419 419 84.4 406 406 94.4 392 392 104.4
85 67 435 377 84.8 419 370 94.7 402 363 104.6
72 473 311 85.5 455 304 95.4 436 297 105.2
Chart PD-37. SCWF/SIWF 35 Fan Performance for CV or with VFD
