Performance
Waterside
Data
Pressure Drop
PKG-PRC002-EN
30

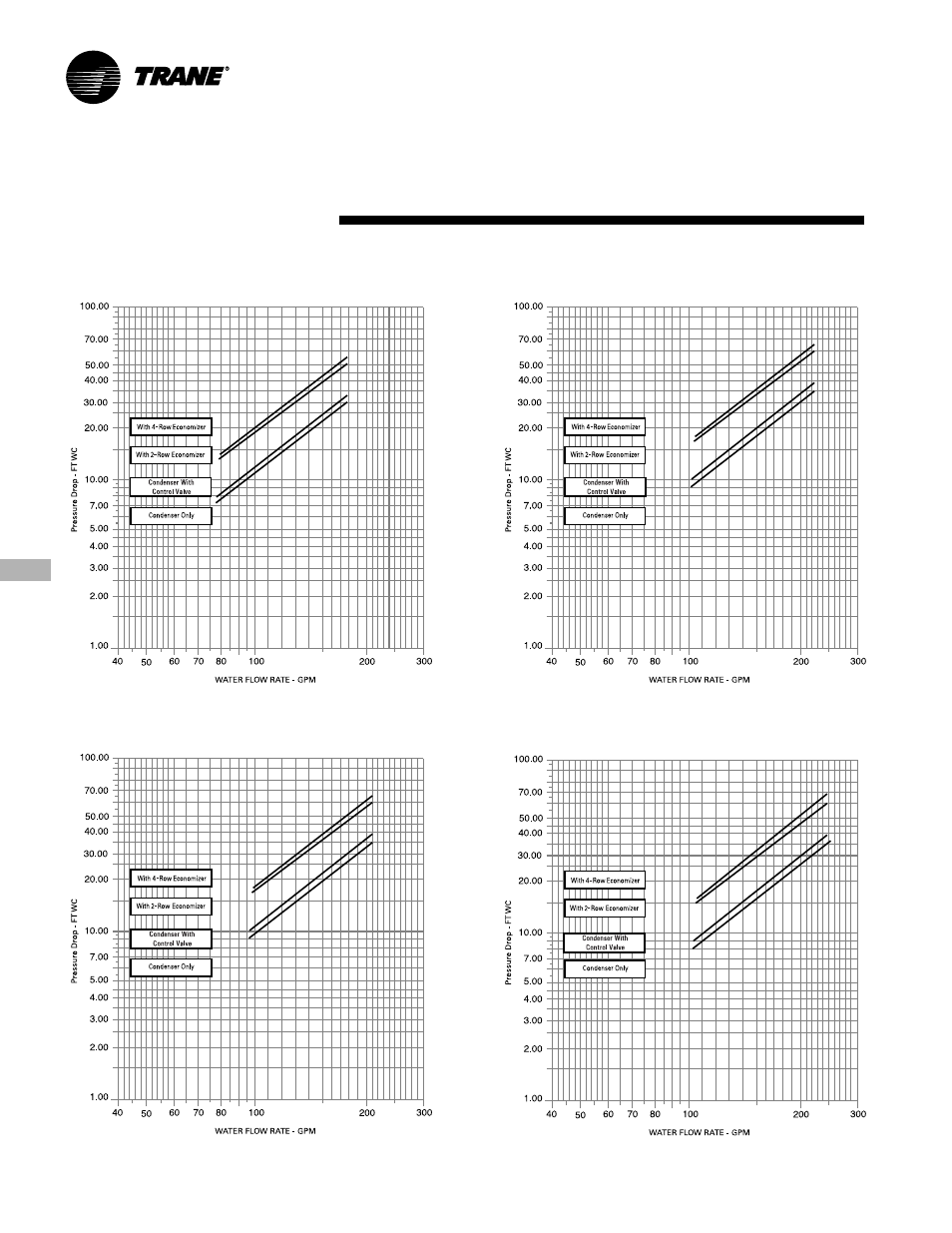

Chart PD-23. Waterside Pressure Drop
SCWF/SIWF 52, 58
Chart PD-24. Waterside Pressure Drop
SCWF/SIWF 65
Chart PD-25. Waterside Pressure Drop
SCWF/SIWF 72
Chart PD-26. Waterside Pressure Drop
SCWF/SIWF 80
Note: Each curve provides total water pressure drop through the entire unit including all accessories and internal valves and piping. Do not add curves together.
