Performance Airside Pressure
Data Drops
PKG-PRC002-EN 26

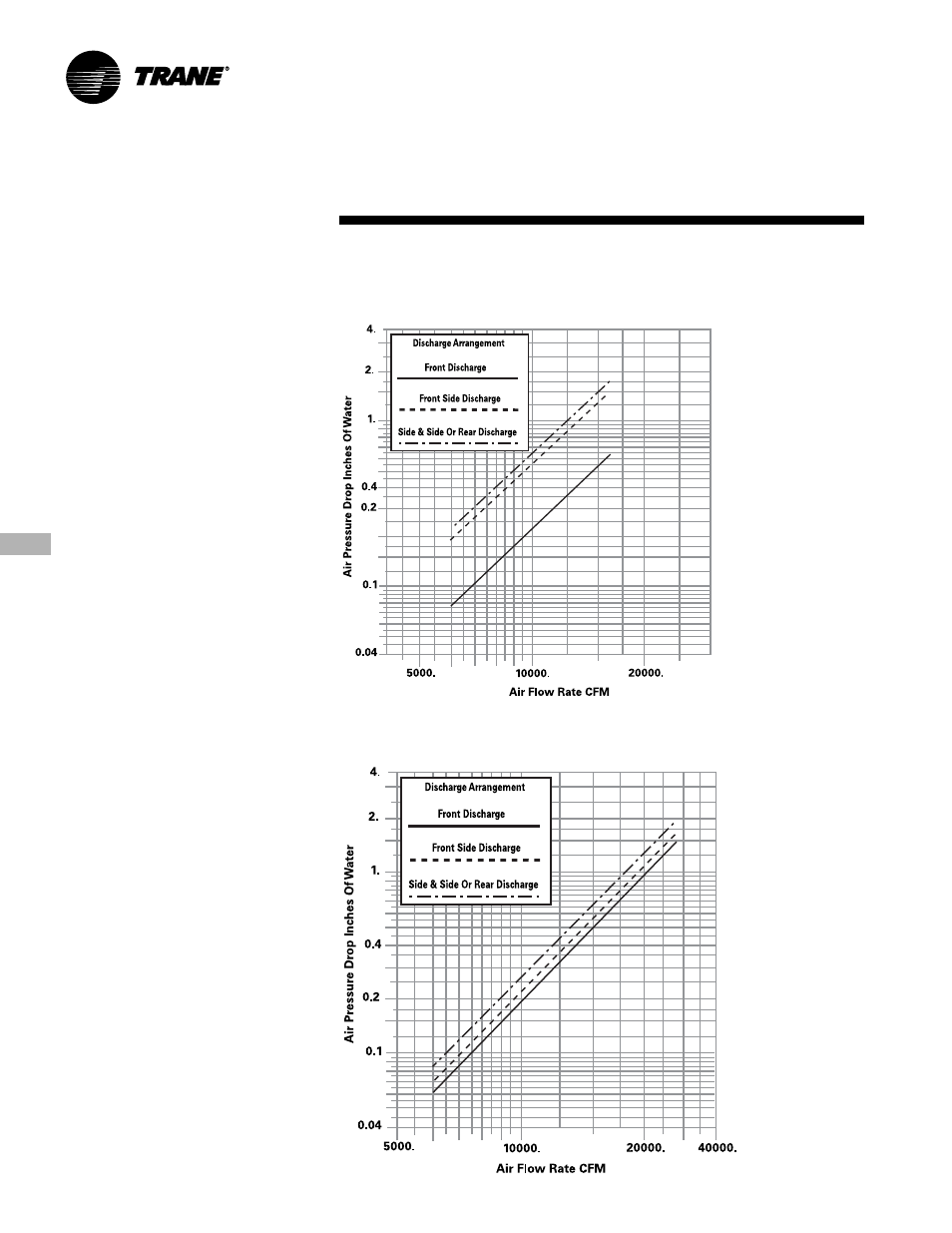

Chart PD-14. Airside Pressure Drop
Extended Height Discharge Plenum
20 to 38-Ton Unit
Chart PD-15. Airside Pressure Drop
Extended Height Discharge Plenum
42 to 80-Ton Unit
Discharge Plenum
